Forged Hollow Axis and Shaft
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
30/Piece |
| Pay Type: |
T/T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Forged steel hollow shaft for heavy machinery
Material: Alloy steel, carbon steel
Process: Forged, heat treated

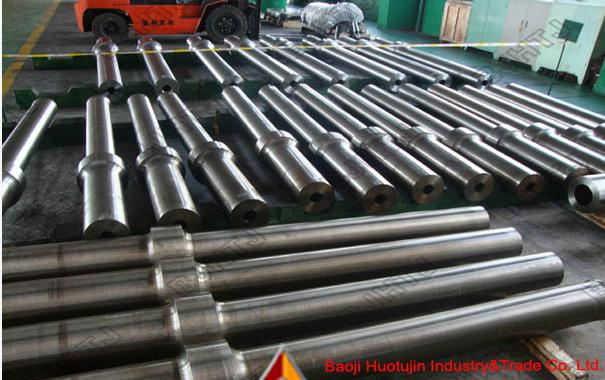

The picture shows the heavy hollow shaft after rough turning
It will be further heat treated, turned and finished machined to the dimensions as marked on drawings.
The material of the shaft is alloy steel, we can aslo manufacture shaft of other material: Carbon steel, cast iron and structure steel and so on.
We can aslo make other shaft such as: Gear shaft, eccentric shaft, optical shaft. Worm shaft, spline shaft, flexible shaft, step shaft, trunnion and so on.
The main shaft for wind turbine power generators we made has been exported to many countries.
We can aslo manufacture shaft for mine hoist.
|
Element |
Weight % |
|
C |
0.38-0.43 |
|
Mn |
0.60-0.80 |
|
P |
0.035 (max) |
|
S |
0.04 (max) |
|
Si |
0.15-0.30 |
|
Cr |
0.70-0.90 |
|
Ni |
1.65-2.00 |
|
Mo |
0.20-0.30 |
|
|
|
Properties |
Conditions |
|
T (°C) |
Treatment |
|
Density (×1000 kg/m 3 ) |
7.7 - 8.03 |
25 |
|
|
Poisson's Ratio |
0.27-0.30 |
25 |
|
|
Elastic Modulus (GPa) |
190 - 210 |
25 |
|
|
Tensile Strength (Mpa) |
744.6 |
25 |
annealed at 810°C more |
|
Yield Strength (Mpa) |
472.3 |
|
Elongation (%) |
22.0 |
|
Reduction in Area (%) |
49.9 |
|
Hardness (HB) |
217 |
25 |
annealed at 810°C more |
|
Impact Strength (J) ( Izod ) |
51.1 |
25 |
annealed at 810°C more |
We, Baoji Huotujin Industry&Trade Co. Ltd, is manufacture and exporter for finished and semi-finished parts produced from Titanium Alloys, Super Alloys (Inconel & Hastelloy Series), Aluminium Alloys, Alloy Steels and Mg Alloys etc.
Main products are as belows:
1. Wellhead and X'AMS tree forgings: Free and Die forgings of Valve Bodies, Tees, Blocks, Closure, Casing Head, Spindle, Valve Ball, Tubing Heads etc. Per API, NACE, AISI, DIN, BS, ASME standard.
2. Aviation Forgings: Free and Die forgings of Disk, Shaft, Rings, Blades, Large Structures, Landing Gears, Steam Turbines per AMS, MIL standard.
3. Precision(Investment) Castings: Vacuum & Non-Vacuum Pouring for Aeroengine structures, Gas turbine blade, Compressor Blade etc per AMS, ASME, ASTM standard.
4. Precision Machining Parts: Have six-axis, five-axis and four-axis high speed milling center, Vertical & Horizontal machining Center, Slow-feeding Wire-cut Machine, can processing parts of various engines and similar products.
5. Oil Casing, Tubings with couplings: API 5C of Grades: J-55, K-55, N-80, C-75, L-80, C-90, C-95, P-110, Q-125, 13Cr with OD from 4 1/2" - 20" (114.3-508mm) and Wall Thickness from 0.205" - 0.635" (5.21 - 16.13mm) in Length: R1, R2, R3, Type of End-Finish: Plain, STC, LTC, BTC.
6. Special Material Valves: Tailor made 3D design by forging and casting of Titanium, Super Alloys, Zirconium materials for your special and high lever quality requirement.
We welcome customers from all over the world to contact us for inquires, we support our customers with high quality, competitive prices and quick delivery!
