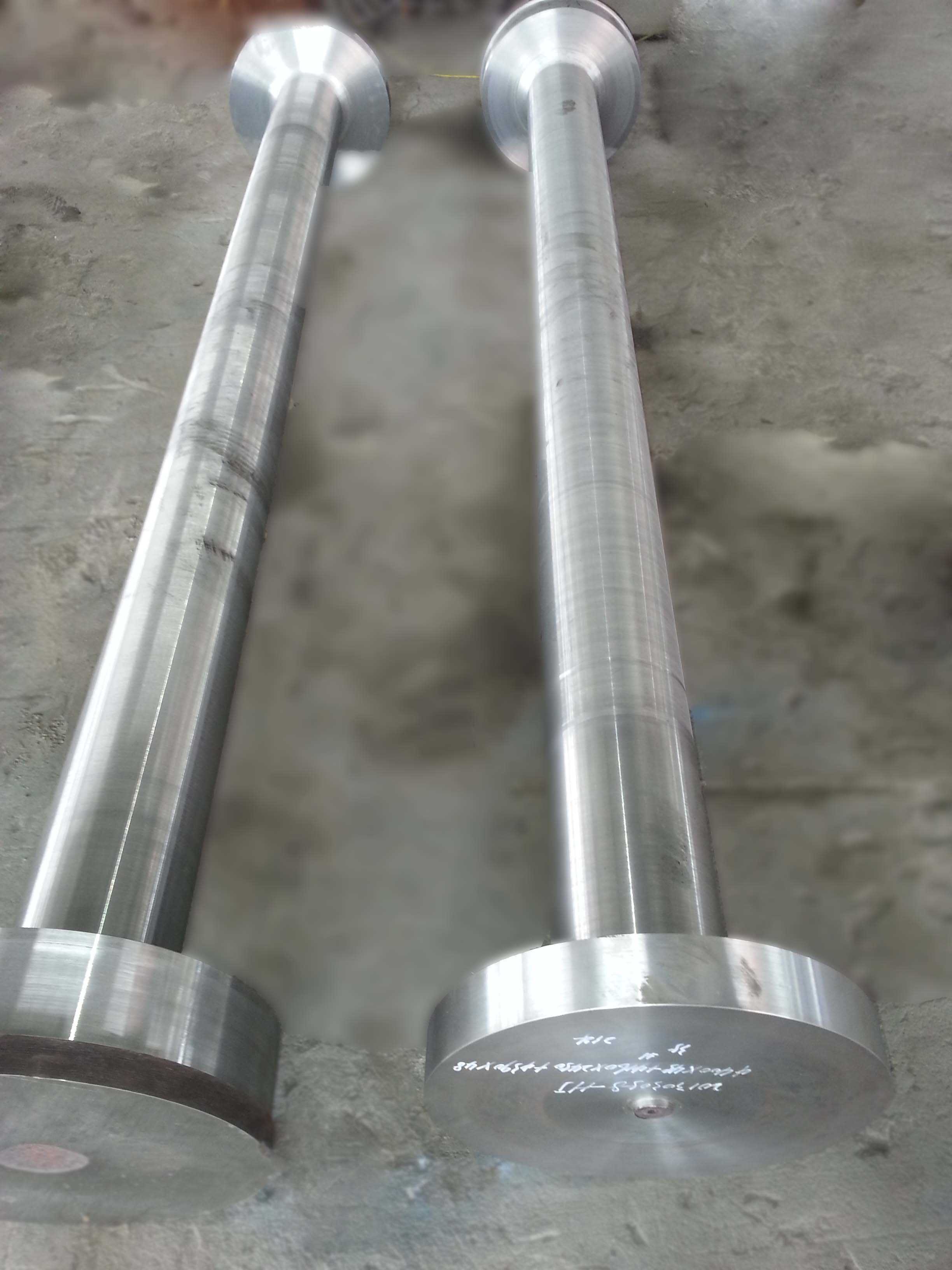

Forged Intermediate Shaft (LR3.2 Inspection)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Od: |
1000mm |
| Length: |
12000mm |
| Processing Object: |
Metal |
| Molding Style: |
Forging |
| Application: |
Shipbuilding and Offshore Platforms |
| Material: |
C45,40crnimo |
| Heat Treatment: |
Q+T/N |
| Standard: |
En |
| Certification: |
ABS,Dnv,Lr,BV |
Product Description
- Material grade: carbon steel or alloy steel or stainless steel with ASTM or Chinese standard or other forging standards such as C22,C45,1020,4130.S355J2G3; 20CrMnMo; 34CrNiMo6; 30CrNiMo8; 18CrNiMo7-6; 304L; 316L; Type 410; type 630; ASTM A350
- Dimension: non-standard. customer offered
- Weight: non-standard.range from 10kg to 10000kg
- Manufacturing process: melting+forging+heat treatment+machining+packing
- Delivery status:rough turned of final machining
- Inspection:chemical composition analysis;ultrasonic test; magnetic powder test if required; dimension test; mechanical property test; microstructure test
- Quality documents: all the above test will be reported and the heat treatment process will be recorded.
- marking: PO No.; Part No.; Material Grade; Heat No.; Supplier Logo; and other information the customer required
- packing: sea worthy wooden pallet or wooden cases
- Trade terms: FOB Shanghai; CIF;
- Payment terms: 10% advance payment by T/T+ 80% payed before delivery by T/T; L/C
- Lead Time: 30 days FOB Shanghai; 65 days CIF
- Supply capability: forging output: 600 tons per month
- 14. Approved certificates: ISO9001 :2008,CCS,ABS, DNV, BV,LR, NK, GL, RINA, KR.TUV PED97/23/EC,AD2000
Desheng Forging have two manufacturing bases, one factory is located in Jiangyin City, another factory is located in t Taixing City (Jiangsu Heavy Forging Co., Ltd). The 2 factories are less than an hour by car. It is located in the Yangtze River Delta, adjacent to Shanghai, the geographical position is superior, the amphibious transportation is convenient. The company covers an area of 50 acres, has a staff of 120 people, including engineers and senior technical personnel 20 people. The main production equipment company has 2500 tons of hydraulic press, 10 tons of electro-hydraulic hammer a, 5 tons of electro-hydraulic hammer a, 1 tons of air hammer a vertical, horizontal lathe more than 20, 5 sets of heat treatment furnace, natural gas heating furnace 3, the auxiliary equipment. With an annual output of forgings production capacity of 10000 tons. At the same time with all kinds of quality testing equipment, electro-hydraulic servo testing machine, the German chemical element analyzer, spectrum analyzer, room temperature / low temperature impact test machine, ultrasonic flaw detector, hardness, metallographic microscope etc...Two factory has established a complete quality management system, passed the ISO9001: 2008 quality management system CCS certification, Taixing factory(Jiangsu Heavy ForgingCo., Ltd) has been the United States ABS, French BV, British LRS, Germany GL, Norway DNV, Italy RINA, Japan NK, Korea KR, China CCS DNV factory approval certificate. Jiangyin factory has made the EU Pressure Equipment Directive PED97/23/EC and German AD2000-W0 bearing technical regulations approved. Pressure piping components A-class manufacturing license also in application. The company mainly produces all kinds of free forging forgings, carbon steel, alloy steel, stainless steel and other materials of various specifications and types. Production capacity: Shaft (maximum weight of 16 tons, the maximum length of 12 meters); The ring gear class (maximum weight of 16 tons, the largest diameter of 2.5 meters); The cylinder (maximum weight of 10 tons, 1.5 meters, the largest diameter of 4 meters in length); Tube plate (the maximum diameter of 2.5 meters, maximum weight of 16 tons)
