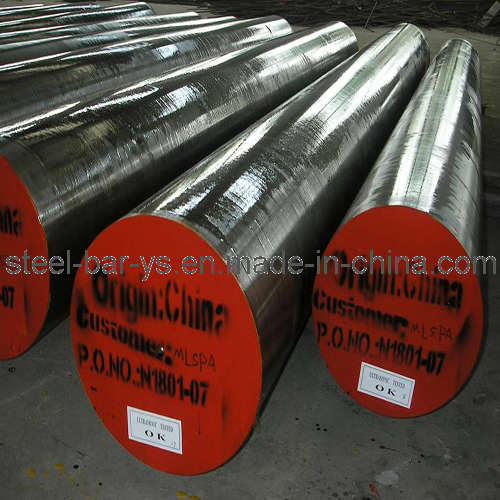

Forged Round Shaft AISI4140, 42CrMo4 Q+T
Price: |
US $ 100-2000/Ton |
Trade Terms: |
FOB |
Min Order: |
20/Ton |
Pay Type: |
L/C,T/T |
Prod Model: |
forged round shaft AISI4140, 42CrMo4 Q+T |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Marks: |
According to Requirements |
Deformation Temperature: |
Hot Forging |
Molding Style: |
Forging |
Molding Technics: |
Pressure Casting |
Casting Method: |
Special Casting |
Product Description
Forged round shaft AISI4140, 42CrMo4 Q+T Specifications/Features:
Material: Forged round shaft AISI4140, 42CrMo4 Q+T
Size: 20-1000mm
Length: Follow by the requirement of customer (normal length is 3-6m)
Production craft: Arcfurnace + Refine furnace (LF) + VOD+ Electroslag remolting + quickly Forging + Annealing (or Quenching and tempering) +Turning.
Inspecting: UTS follows as GB/T6402-91 CLASS 3 or SEP 1921 C/C, D/D
Packing details: Nude packing, sea-worthy packing
Payment terms: T/T, L/C
Standards: AISI, ASTM, BS, DIN, GB, JIS
Supply ability: 6000MT/month
Certificate: ISO9001: 2008 Quality Managements System Certificate
Forged round shaft AISI4140, 42CrMo4 Q+T Primary Competitive Advantages:
Well and High Quality Control
Prompt Delivery
New Products
Competitive Prices
Small Order Acceptable
Experience: More than 23 years in producing steel bars
Output: More than 6000MT/ month
Equipments: 5000 tons hydraulic press, 800 tons quick forging machine, ESR furnace, etc.
Category |
products |
Stainless steel |
1Cr13-4Cr13 321 304 304L 306 306L Cr25Ni20 |
Spring steel |
65Mn 55-60Si2Mn 60Si2CrV 50CrV |
Cold drawn steel |
9CrMo MC3 MC5 86CrMoV7 9Cr2MoV(electroslag) |
Hot rolled steel |
60CrMo 60CrMnMoA 60CrMoV |
Forging |
Round bars square bars stepped bearing |
Alloy bar |
All kinds of alloy bars |
Alloy tool steel |
5CrNiMo 5CrMnMo 9SiCr Cr12MoV 3Cr2W8V H13 |
Alloy structure steel |
20-40Cr 20Cr2Ni4A 38CrMoAlA 15CrMo-42CrMo 25Cr2MoV 45CrNiMoV 20CrNiMo-40CrNiMo 20CrMnTi-30CrMnTi 20CrMnMo-40CrMnMo 12CrMoV-35CrMoV |
Carbon tool steel |
T7-T12 |
Carbon steel |
20#-60# |
ball bearing steel |
GCr15 GCr16 GCr9 GCr15SiMn |
Zhangjiagang Yongsheng Casting Co., Ltd., is a special steel company which specializes in producing steel forging, forged pieces, electroslag ingots, forged round bars and forging ingots. Our company, with more than 50 members of high and middle level technical staff, owns strong technical force, advanced technology, and complete means of quality detection, Our company is equipped with sophisticated analytical instrument, such as chemical analysis, physical experiment, metallographic testing, US testing, high- and low-fold inspection. Our products have passed the ISO9001: 2008 International Standard Quality Guarantee System Certification.
Our company is mainly equipped with 15 tons arc furnaces, 15 tons LF furnaces, 30 tons VOD, three-phase ESR furnaces, and automatic computer-controlled 800 tons quick forging machine, 5000 tons hydraulic press, fuel oil annealing furnaces, fuel gas annealing furnaces, furnaces of resistance type, several car-type heating furnaces and large-scale machining equipment. With all raw materials with EAF crude refining, our product quality can be assured.
Our company can produce steel forging with weight within 8 tons, forging ingot with weight from 0.28 tons to 25 tons and electroslag ingot with diameter from 600mm to 900mm and weight from 3 tons to 8 tons per piece. Our main products are large specification round steel, size: 20mm-1000mm, including carbon steel, the carbon tool steel, framework steel of alloy, die steel, bearing steel, stainless steel, cold and hot roll steel, with a total of more than 100 species, and an annual output of steel ingot 80, 000 tons. Our capacity of forging is more than 96, 000 tons annually, average 8, 000 tons per month. Our products are not only used for large domestic locomotive, coal, petroleum machinery, plastics and transportation machinery and shipbuilding industry, but also exported to Germany, Italy, France, Belgium, Russia, Turkey, Korea, Thailand, Singapore, Malaysia, and Taiwan area.
Our company's geographical location is good, which is located at junction of Suzhou, Wuxi, and Changzhou, close to Yangtze River. We have convenient transportation and beautiful scenery. Our company enjoys a good reputation in the market, and pursues the principle of "quality first, users supreme" with large cash reserves. Our direct marketing, timely supply and consignment agent can meet customers' satisfaction.
