Prod Model: |
ss316/416 stainless steel ring |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
1/2'' to 500'' |
Name: |
Forged Stainless Steel Ring |
Processing Object: |
Metal |
Molding Style: |
Forging |
Product Description

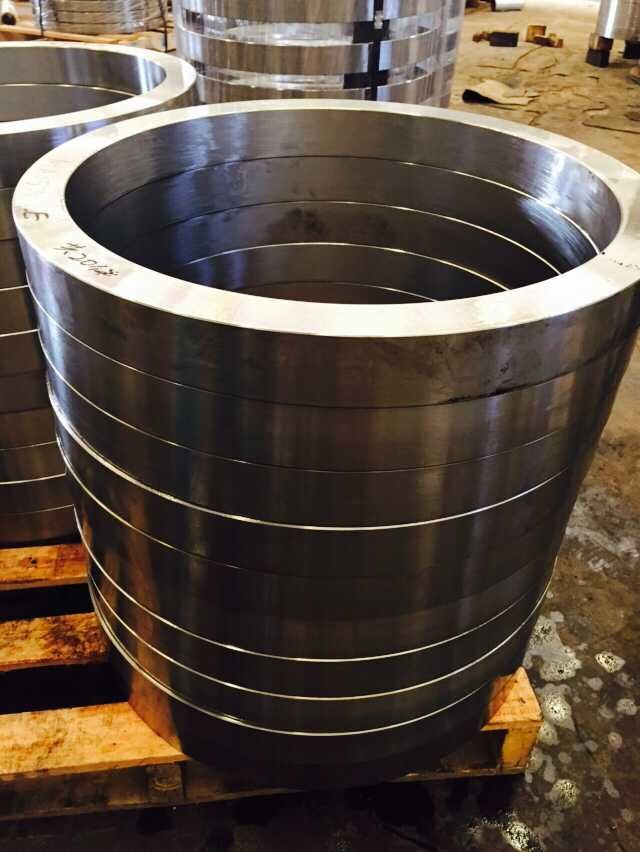

Name: ss316/304/630 forged stainless steel ring
We are a direct OEM factory to supply machine parts according to drawings. Here are some details of the products for your reference.
1. Main products: Forging & Casting Parts, Shafts, Gears, Shaft Couplings, Stabilizer, BOP Body, Die Forging Module, Mining Machinery Parts etc.
2. Materials: Carbon steel, Alloy steel
3. Supplying range: Shafts, Sleeves, Rings, Cylinders, Blocks, Modules etc
4. Process: Forging/Casting - Normalizing & Tempering - Proof Machining- Quenching & Tempering - Finish Machining
We can offer you in various process conditions.
5. QA DOC.: Chemical Composition Report, Mechanical Properties Report, UT Report, Heat Treatment Report, Dimensions Check Report
The data on chemical composition report and mechanical properties report are approved by third party, CSIC.
UT test: 100% ultrasonic test according to EN10228-3, SA388, Sep.1921 C/c etc.
Heat Treatment Report: provide original copy of heat treatment curve/time table.
Steel Ingot: EAF-LF-VD/ESR. Material Certificate according to En10204-3.1 is requested from ingot supplier.
6. Specifications of Forging:
Shape | Diameter(m) | Length(m) |
Shaft | ≤2.5 | ≤15 |
Block | ≤4.0 | / |
Ring | ≤4.9 | ≤3.5 |
Cylinder | ≤1.5 | ≤8.0 |
7. Standards: GB, JIS, AISI, SAE, ASTM/ASME, EN, DIN, GOST
8. Max Weight: 55T
9. Certification: ISO9001: 2000, CCS
10. OEM and Customized service offered
We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
Forging weight is from 50 kg to 20 ton. Many kinds of materials, free size.
Smelting Process: EF+LF + VD+VC The process as follow: Ingot → Heat → Forging → Heat treatment (Normalizing+ tempering) → Inspection → Rough machining→ UT → 2th Heat treatment → Finishing machining → Inspection
Applications: The heavy forging: Forged ring, shaft, roller, flange, or gear is widely used for various industries For example: Metallurgy, mining, power station and so on.
Specifications:
Description
The heavy forging: Forged ring, shaft, roller, flange, or gear
Material
Alloy steel or stainless steel
Material standard
ASTM or GB/T3077-1999
Specification
As per specified requirements
Weight
Max. 250 ton
Smelting Process:
EF+LF + VD+VC
Process
Ingot→ Heat → Forging → Heat treatment (Normalizing+ tempering) → Inspection
→ Rough machining→ UT → 2ND Heat treatment → Finishing machining → Inspection
UT standard
EN10228, ASTM A388 or JB/T 5000.15-1998
Competitive Advantage:
The heavy forging is manufactured by large scale stated enterprise. Advanced technical process from smelting steel to forging and heat treat guarantees the product quality. Closed relationship with several famous stated enterprises guarantee "in-time delivery" and competitive price.
Excellent product quality and service, competitive price, "in-time" delivery
