| Prod Model: |
Chain Tensioner Load Binder |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Fastening |
| Technology: |
Forging |
| Surface: |
Hot DIP Galvanized, Painted, etc |
| Other: |
Customized |
| Type: |
Hook |
| Material: |
Carbon Steel |
| Usage: |
Industrial and Household |
| Brand: |
Thinkwell |
| Color: |
Yellow,Silver,Self-Color |
Product Description

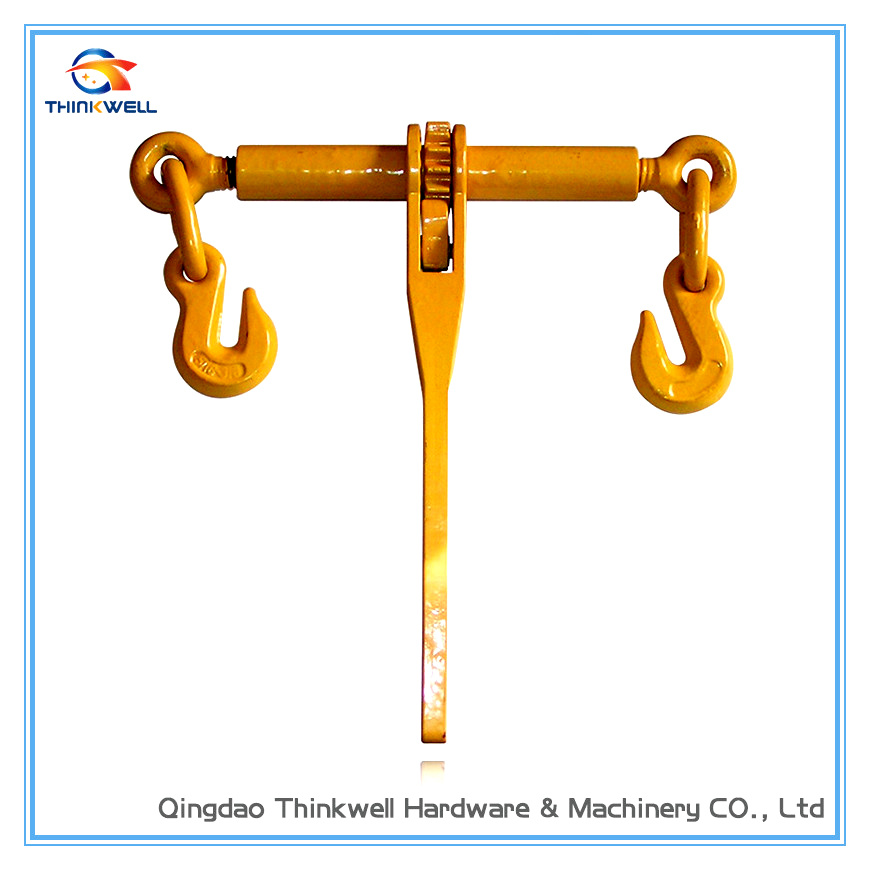

Forged Standard Yellow Ratchet Type Chain Tensioner Load Binder
- chain diameter, for which the load binder is suitable;
- manufacturer's symbol
- not for lifting or hoisting applications;
- Lashing Capacity;
- minimum breaking load.
Material: Drop forged Carbon steel
Treatment: quenched and tempered
Safety factor: MBL equals 2 x Lashing Capacity
Finish: Painted red or other colors as request
Usage:Chain lashing
Size:1/4-5/16,5/16-3/8,3/8-1/2,1/2-5/8
MBS:5 times WLL or 4 times WLL
Certification: Test certificates can be supplied upon request
Customized requirements are welcome!
Origin: China
FOB port: Qingdao
Lead time: 15~45 days or according to your qty
Standard: CE, ISO
Main export market: US, Australia, European countries,Canada etc
Advantages: Rich experience for international business, prompt delivery, quality control, small orders are acceptable, strong ability for R&D.
Qingdaothinkwell also manufactures hooks, shackles, turnbuckles, wire rope clips, load binder and other rigging hardware accessories.
Min-Max
Chain Size
(in.) |
Working
Load Limited
(lbs) |
Proof
Load
(lbs) |
Minimum
Ultimate Load
(lbs) |
Weight/Each
(lbs) |
Handle
Length
(in) |
Dimensions(in) |
A |
B |
C |
E |
E1 |
F |
F1 |
G |
1/4-5/16 |
2600 |
5200 |
9200 |
3.52 |
7.16 |
7.16 |
0.89 |
1.77 |
16.22 |
21.26 |
17.79 |
22.83 |
0.35 |
5/16-3/8 |
5400 |
10800 |
19000 |
10.50 |
13.42 |
13.92 |
1.30 |
2.60 |
22.64 |
30.64 |
25.24 |
33.24 |
0.51 |
3/8-1/2 |
9200 |
18400 |
33000 |
12.90 |
13.92 |
13.92 |
1.30 |
2.60 |
24.13 |
32.13 |
27.04 |
35.04 |
0.59 |
1/2-5/8 |
13000 |
26000 |
46000 |
14.38 |
13.92 |
13.92 |
1.30 |
2.60 |
26.45 |
34.45 |
30.07 |
38.07 |
0.74
|
|
Qingdao Thinkwell Hardware & Machinery Co., Ltd is the manufacturer deals in Rigging Hardware, Forged Engine Connecting Rod and Automobile Forging Parts over 10years.
Our rigging hardware factory covers an area of 8, 000 square meters and its architectural area is 5, 000 square meters. It has over 100 staff, including 3 engineers, 10 specialized technican, owned advanced machinery and equipment.
Rigging Hardware Equipment:
1)1000 T forged pressing machine,
2)160T/300T/400T/630 T forged pressing machine,
3)2 production line, include a set of punch, thread rolling machine, tapping machines, lathes, milling machines.
In 2009, our company invest over five millions to our cooperate company and bulit two new advanced intermediate frequency induction heating, forging forming, heat quenching forging production lines to produce Automobile forging parts and Engine Connecting Rod. In April of 2010, get TS16949 international quality system certification. Our Auto forging parts and Connecting Enjoying good reputation in domestic and world market because of good quality and competitive price.
Main Equipment for Automobile Forging parts and Connecting Rod:
1)1600T/1000T/630T Forged Pressing Machine
2)800 kw intermediate frequency induction furnace
3)The pusher-type continuous tempering furnace
Rigging Hardware Products: Load Binders, Turnbuckles, Shackles, Hooks, Wire Rope Clip, Wire Rope Thimbles, Eye Bolts&Nuts, Connecting Links, Anchor, Chain Accessories...etc.
Automobile Forging Products:
1. Automobile, engineering machinery forging parts.
2. Automobile steering arm, rack forging parts
3. Automobile, engineering machinery engine connecting rod assembly
Customized forging parts welcomed
"Our Service, Your Safety", "Customers Demand, Our Pursuit ". To provide the most suitable products and pragmatic services is our firm belief. We can design and manufacture varies of products according to customers requirements. We have been putting the priority to the QUALITY, SINCERITY, EFFICIENCY, and SERVICE.
Sincerely wish long-term cooperation between you and us. Warmly welcome to our company for a visit.
