Forged Steel Flange

Name: Forged Steel Flange
Brand: china-castingforging.com
SKU: 642890285
Availability: InStock
Rating: 4.6 (71 reviews)

Price:	US $ 0.45-1000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Dingxiang C&N Huarui Forging Co., Ltd.

Showroom Product Company Profile

Prod Model:	C&N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Forged Steel Flange:	Slip on Flange, Weld Neck Flange Threaded Flange B
Stainless Steel Flange:	ASTM a 182 F 304 316
Carbon Steel Flange:	A105 Ss400
Standard:	GOST
Type:	Welding Flange
Material:	Carbon Steel
Manufacturing Way:	Forging

Product Description

C&N is a steel flange manufacturer in China,we can produce high quality forged steel flange as per ANSI/asme ,BS,JIS,DIN standard

1) Standard: ANSI/ API/JIS/DIN//BS
2) Material: Carbon Steel, Stainless Steel, Alloy Steel

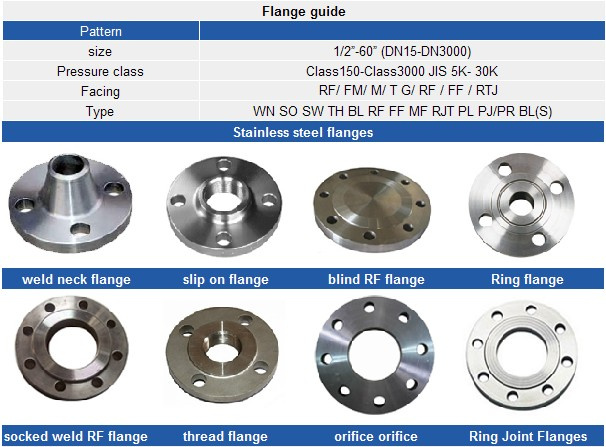

3) Type: BL/TH/SW/WN/LJ/SO
4) Raced face: RF, FM, TG, RJ, FF
5) Nominal Size: Up to 2,500mm
7) Special design availabable
Standard and Technical Parameter of Flanges

Country Standard	Standard Code	Type	Normical Pipe Size	Pressure Rating
American Standard Flange Series	ANSI B16.5	WN,SW,SO,BL, THR,LJ,RTJ	1/2"-24"	>CLASS 150,300,400,600,900,1500,2500
	ANSI B16.47 Series A (or MSS SP-44)	WN,BL	26"-60"	CLASS 150,300,400,600,900
	ANSI B16.47 Series B (or API 605)	WN,BL	26"-60"	CLASS 75,150,300,400,600,900
	BS 3293	WN,SO	26"-48"	CLASS 150,300,400,600
	ANSI B16.36 ORIFICE FLANGE	WN,SO,THR,RTJ	1/2"-24"	CLASS 300,400,600,900,1500,2500
	ANSI B16.5	LWN	1/2"-24"	CLASS 150,300,400,600,900,1500,2500
	AWWA C207 FLANGE	Ring(hub)Flange	3"-144"	CLASS B,D,E,F
British Standard	BS 4504	WN,SO,PL,BL	DN10-DN2000	PN 6,10,16,25,40
German Standard Flange Series	DIN 2573,2576,	PL	DN10-DN500	PN 6,10,16,25,40
	DIN 2527	BL	DN10-DN500	PN 6,10,16,25,40
	DIN 2631,2632,2633,2634,2635	WN	DN10-DN500	PN 6,10,16,25,40
	DIN 2566	THR	DN10-DN500	PN 6,10,16,25,40
Japanese/Korean Standard Flange	JIS B2220/KS B 1503	PL	DN10-DN400	5K
	JIS B2220/KS B 1503	SO	DN450-DN1000	5K
	JIS B2220/KS B 1503	PL	DN10-DN225	10K
	JIS B2220/KS B 1503	SO	DN250-DN1000	10K
	JIS B2220/KS B 1503	SO	DN10-DN1200	16K,20K,30K
	JIS B2220/KS B 1503	WN	DN15-DN400	30K
European Standard	EN1092-1	WN,SO,BL,PL	DN10-DN4000	PN 2.5, 6,10,16,25,40,63,100,160,250,320,400
Russian Standard	GOST 12820-80	WN,SO	DN10-DN1200	PN 6,10,16,25,40,63
Italian Standard Flange Series	UNI 6082-67, UNI 2276-67, UNI 2277-67	PL	DN10-DN2000	PN 2.5, 6,10
	UNI 6083-67, UNI 6084-67, UNI 2278-67	PL	DN10-DN2000	PN 16,25,40
	UNI 2280-67, UNI 2281-67, UNI 2282-67	WN	DN10-DN2000	PN 6,10,16
	UNI 2283-67, UNI 2284(2285,2286)-67	WN	DN10-DN1000	PN 25,40,64,100
	UNI 6085-67, UNI6086-67	WN	DN10-DN300	PN 160,250
	UNI 6091(6092,6093,6094,6095)-67	BL	DN10-DN2000	PN 6,10,16,25,40
	UNI 6096(6097,6098,6099)-67	BL	DN10-DN700	PN 64,100,160,250
	UNI 2289(2290,2291,2292,2293)-67	Flangia,collare	DN50-DN1000	PN 6,10,16,25,40
	UNI 6088(6089,6090,2299,2300)-67	Flangia libera, Anello	DN10-DN1000	PN 6,10,16,25,40
	UNI 2253(2254,2255,2256,2257)-67	SO	DN10-DN150	PN 6,16,40,64,100

Flange Material Specification
Carbon Steel	ASTM A105, ASTM A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2
Stainless Steel	ASTM A 182 F 304/ 304L , F316/ 316L , F316H, F310, F321, F44 (UNS S31254)
Alloy Steel	ASTM A 182 F 1, F 5a , F9, F11, F12, F22, F91

Function
The products are applied to pipes' connection in water, electricity, petrochemical industry, nuclear power, medicine etc.
According to different requirements of clients, we are able to design and process qualified products.
Chemical Content of Main Materials

Chemical Requirements(Composition,%,max)
Material Symbol	C	Mn	P	S	Si	Ni	Cr	Mo	Cu	V	Co
ASTM A105	0.35	0.60-1.05	0.035	0.040	0.10-0.35	0.40	0.30	0.12	0.40	0.08	_
ASTM A350 LF2	0.30	0.60-1.35	0.035	0.040	0.15-0.30	0.40	0.30	0.12	0.40	0.08	0.02
ASTM A 182 F 304	0.08	2.00	0.045	0.030	1.00	8.0-11.0	18.0-20.0	_	_	_	_
ASTMA 182 F 304L	0.03	2.00	0.045	0.030	1.00	8.0-13.0	18.0-20.0	_	_	_	_
ASTM A 182 F 316	0.08	2.00	0.045	0.030	1.00	10.0-14.0	16.0-18.0	2.00-3.00	_	_	_
ASTMA 182 F 316L	0.03	2.00	0.045	0.030	1.00	10.0-15.0	16.0-18.0	2.00-3.00	_	_	_
ASTM A 182 F 321	0.08	2.00	0.045	0.030	1.00	9.0-12.0	17.0-19.0	_	_	_	_

C&N Industrial group limited is a leading manufacturer of steel pipef itting, flange products in China With 10 years in pipeline fields both manufacturing and trading. We have been supplying high quality piping material to our customer all over the world.

Our production scope:

Butt weld Fittings:

Standard: ASME B16.9 16.28/MSS SP-43/DIN 2605/JIS B2311/ 2312

Elbows(45Deg, 90Deg, 180Deg), Tee(Equal&Reducing), Cross, Reducer, Cap, olet, etc

Forged fittings: THREADED/SOCKET WELD

ASME B16.11, BS3799, JIS B2316, MSS-SP-79, MSS-SP-83

ELBOW, TEE, CROSS, UNION, COUPLING, CAP, BOSS, BUSHING, OUTLET, INSERT

Flanges: ASME/ANSI/API JIS, DIN, EN/BS

Welding Neck, Slip on, Threaded, Socket Welding, Blind, Orifice,

We are also offering our customer a total soluation for the whole piping material packages

Which includes, stainless steel pipes, carbon steel pipes, valve, gasket, bolts etc.

For further information about our company and products, please visit our website, and please do not hesitste to drop us a mail for any inquiry.
