| Prod Model: |
JIS Type |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Process: |
Drop Forged |
| Surface: |
Hot DIP Galvanized, Electro Galvanized |
| Product Authentification: |
ISO, CE |
| Grade: |
a |
| Other: |
Customized |
| Material: |
Steel |
| Type: |
Jaw /Eye /Hook /Stub |
Product Description

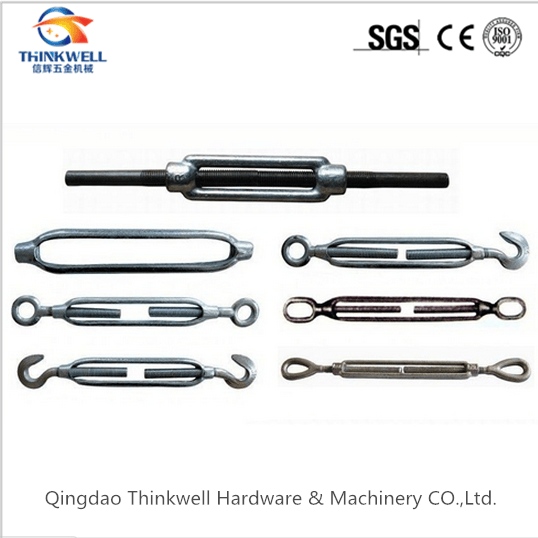

Forged Steel JIS Frame Type Turnbuckle
Process: Forged
Surface: H. D. G
Material: Carbon Steel
Packing: Carton, pallet
Customized requirements are welcome!
Origin: China FOB Port: : Qingdao
Lead time: 15~45 Days
Main export market: US, Australia, European countries, India
Standard: CE, ISO
| Nominal | 1 Body Only | 2 Eye and Eye | 3 Hook&Eye | 4 Hook&Hook | 6 With Stubs |
| Size(D) | A | B | C | T.L | W/Pce | F | T.L | W/Pce | T.L | W/Pce | E | T.L | W/Pce | H | I(A/2) | G | W/Pce |
| m/m in | m/m | m/m | m/m | Ton | kg | m/m | Ton | kg | Ton | kg | m/m | Ton | kg | m/m | m/m | m/m | kg |
| 6 | 100 | 78 | 11 | 1 | 0.08 | 10 | 0.1 | 0.116 | 0.04 | 0.114 | 9 | 0.04 | 0.112 | 80 | 50 | 5.3 | 0.112 |
| 8 | 125 | 100 | 12.5 | 1.2 | 0.15 | 12 | 0.2 | 0.22 | 0.08 | 0.218 | 9 | 0.08 | 0.215 | 100 | 63 | 6.9 | 0.22 |
| 9 | 150 | 120 | 12.5 | 1.5 | 0.17 | 16 | 0.5 | 0.295 | 0.15 | 0.293 | 11 | 0.15 | 0.29 | 130 | 75 | 8.3 | 0.273 |
| 12 | 200 | 164 | 18 | 2 | 0.29 | 20 | 2 | 0.6 | 0.35 | 0.585 | 16 | 0.35 | 0.57 | 150 | 100 | 11.2 | 0.51 |
| 16 | 250 | 202 | 21.5 | 3 | 0.52 | 22 | 3 | 1.07 | 0.7 | 1.05 | 19 | 0.7 | 1.03 | 180 | 125 | 14.2 | 0.95 |
| 19 | 300 | 250 | 25 | 4 | 0.85 | 28 | 4 | 1.79 | 1 | 1.78 | 20 | 1 | 1.77 | 220 | 150 | 17.2 | 1.62 |
| 22 | 325 | 269 | 28 | 5 | 1.17 | 33 | 5 | 2.55 | 1.5 | 2.58 | 21 | 1.5 | 2.6 | 250 | 165 | 20.3 | 2.34 |
| 25 | 350 | 285 | 32.5 | 6 | 1.69 | 35 | 6 | 3.8 | 2 | 3.77 | 26 | 2 | 3.73 | 270 | 175 | 23.3 | 3.27 |
| 32 | 400 | 310 | 45 | 8 | 3.51 | 36x70 | 10 | 7.6 | 3 | 7.52 | 34 | 3 | 7.44 | 300 | 200 | 29 | 6.52 |
Qingdao Thinkwell also manufactures hooks, shackles, turnbuckles, wire rope clips, load binders and other rigging hardware accessories.
Qngdao Thinkwell Hardware & Machinery CO., Ltdis the manufacturer which deals with the foreign trade and domestic trade with the Forging, Stamping, Heat treatment, Die and Machinery for various Rigging accessorie, Power accessories, Mining machinery accessories and other products. Our company research, design, production and sales. After-sales service as a whole, and has 10 years of rigging and other aspects of the design, manufacture and after-sales service experience.
FQA:
Are you a factory or a trading company?
1. We are a factory focused on the rigging hardware, auto parts, forged parts over 10 years.
2. Our products are shackles, turnbuckles, hooks, chains, load binders, bolts&nuts, wire rope clips, thimbles, connecting rods etc.
3. We own advanced equirpments and 2 production lines like 1000t, 630t, 400t , 300t, 160t forged presing machine, purch, thread rolling machine, tapping and milling machine.
What is your Quanlity Guarantee?
1. High quanlity steel material from famous stel group.
2. All of the products was qualifled before shipping.
3. The third party product inspections are acceptable.
How can I get a smple to check your quality?
Required Samples will be sent after price confimation. If place order, freight will be returned back.
Why I choose you?
1. Rich expenience on rigging hardware over 10 yuears.
2. Delivery time is 15-45 days.
3. ISO, SGS Certification.
4. Over 100 staff, inducting 3 engineers, 10 speciaized technican.
Qingdao Thinkwell Hardware & Machinery Co., Ltd is the manufacturer deals in Rigging Hardware, Forged Engine Connecting Rod and Automobile Forging Parts over 10years.
Our rigging hardware factory covers an area of 8, 000 square meters and its architectural area is 5, 000 square meters. It has over 100 staff, including 3 engineers, 10 specialized technican, owned advanced machinery and equipment.
Rigging Hardware Equipment:
1)1000 T forged pressing machine,
2)160T/300T/400T/630 T forged pressing machine,
3)2 production line, include a set of punch, thread rolling machine, tapping machines, lathes, milling machines.
In 2009, our company invest over five millions to our cooperate company and bulit two new advanced intermediate frequency induction heating, forging forming, heat quenching forging production lines to produce Automobile forging parts and Engine Connecting Rod. In April of 2010, get TS16949 international quality system certification. Our Auto forging parts and Connecting Enjoying good reputation in domestic and world market because of good quality and competitive price.
Main Equipment for Automobile Forging parts and Connecting Rod:
1)1600T/1000T/630T Forged Pressing Machine
2)800 kw intermediate frequency induction furnace
3)The pusher-type continuous tempering furnace
Rigging Hardware Products: Load Binders, Turnbuckles, Shackles, Hooks, Wire Rope Clip, Wire Rope Thimbles, Eye Bolts&Nuts, Connecting Links, Anchor, Chain Accessories...etc.
Automobile Forging Products:
1. Automobile, engineering machinery forging parts.
2. Automobile steering arm, rack forging parts
3. Automobile, engineering machinery engine connecting rod assembly
Customized forging parts welcomed
"Our Service, Your Safety", "Customers Demand, Our Pursuit ". To provide the most suitable products and pragmatic services is our firm belief. We can design and manufacture varies of products according to customers requirements. We have been putting the priority to the QUALITY, SINCERITY, EFFICIENCY, and SERVICE.
Sincerely wish long-term cooperation between you and us. Warmly welcome to our company for a visit.
