| Prod Model: |
forging 1045 steel roller |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/2'' to 500'' |
| Cncturning: |
Roungh Machining |
| Technology: |
Forging |
| Certificates: |
ISO Gl and ABS |
| Casting Method: |
Sand Casting |
| Casting Form Material: |
Metal |
| Casting Metal: |
Cast Steel |
| Casting Form Usage Count: |
Permanent |
Product Description

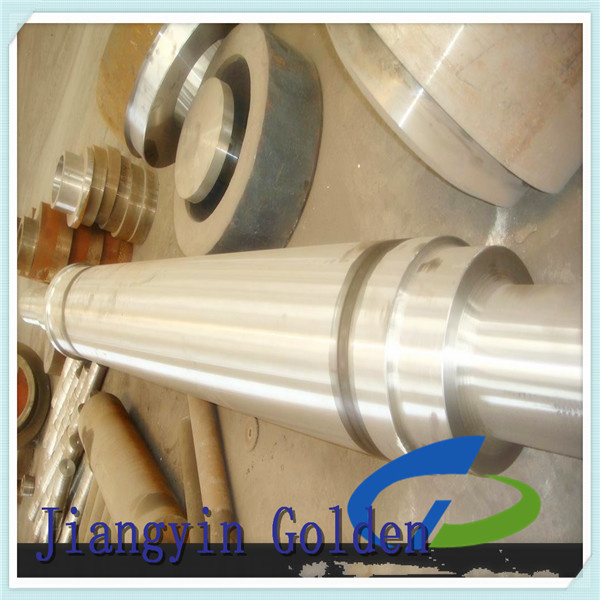

Name: Forging 1045 forged steel roller
Specifications
Option: Carbon steel like C45, 39NiCrMo3, 40CrNiMoA, SAE 4320, 36Mn5
Surface: Machining polished
Forged shaft carbon seel, forged bar shafts
High quality rotary steel roller:
Specification:
1: Processing high quality gear
2: Materials: C45, 39NiCrMo3, 40CrNiMoA, SAE 4320, 36Mn5
3: Measurement: Max outside dia: 3200, weight: 30 tons.
| Wind Turbine Shaft | 42CrMo4, 34CrNiMo6 |
| Marine Shaft | C-Mn steel |
| Hydro Turbine Shaft | 20SiMn |
| Roller Shaft | 70Cr3Mo; 9Cr2Mo; MC1; MC2; MC3 |
| Gear Shaft | 17CrNiMo6; 18CrNiMo7-6; 20CrNi2Mo; 42CrMo; 47CrNiMo6, 20CrMnMo |
| Gear | 17CrNiMo6; 18CrNiMo7-6; 20CrNi2Mo; 42CrMo; 47CrNiMo6, 20CrMnMo, 30 CrNiMo6 |
| Pressure Vessel Forgings | SA105, SA350 LF2, 16Mn, 20MnMo, 15MnMo, 12Cr2Mo1, 14Cr1Mo, 42CrMo, F304, F316, 17-4PH, 4330, 4336, 4340 |
| Ring Rolling | 16Mn, 50Mn, 42CrMo, 15MnV, 35CrMo, A105, 20#, 304, 304L, 316, 316L |
Detail description:
1: Name: Arbon seel roller
2: Proces: Heat forging
3: Certificates: ISO9001-200, SGS
4: Products ability: Max length: 1--16m, Max OD: 3m
5: Surface: Polishing or per costomer's requirement
Products range:
Die Forging, Main Shaft, Wind Power Shaft, Stabilizer, Flange, Coupling, BOP Body, Tube Plate, Roller Forging, Roller Shell, Ring Forging, Gears, Gear Blank, Gear Shaft, Gear Wheel.
WORKSHOP
We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
Forging weight is from 50 kg to 20 ton. Many kinds of materials, free size.
Smelting Process: EF+LF + VD+VC The process as follow: Ingot → Heat → Forging → Heat treatment (Normalizing+ tempering) → Inspection → Rough machining→ UT → 2th Heat treatment → Finishing machining → Inspection
Applications: The heavy forging: Forged ring, shaft, roller, flange, or gear is widely used for various industries For example: Metallurgy, mining, power station and so on.
Specifications:
Description
The heavy forging: Forged ring, shaft, roller, flange, or gear
Material
Alloy steel or stainless steel
Material standard
ASTM or GB/T3077-1999
Specification
As per specified requirements
Weight
Max. 250 ton
Smelting Process:
EF+LF + VD+VC
Process
Ingot→ Heat → Forging → Heat treatment (Normalizing+ tempering) → Inspection
→ Rough machining→ UT → 2ND Heat treatment → Finishing machining → Inspection
UT standard
EN10228, ASTM A388 or JB/T 5000.15-1998
Competitive Advantage:
The heavy forging is manufactured by large scale stated enterprise. Advanced technical process from smelting steel to forging and heat treat guarantees the product quality. Closed relationship with several famous stated enterprises guarantee "in-time delivery" and competitive price.
Excellent product quality and service, competitive price, "in-time" delivery
