Forging&Casting Wedge for Sideframe Assembly

Forging&Casting Wedge for Sideframe Assembly
Price: Negotiable/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: bogie component 106.02.003-2
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Steel/Iron
Used For: Bogie
Product Type: Freight Wagon
Method: Casting/Forging
Weight: 5kg
Certification: TB
Type: Freight Wagon
Part: Sideframe Assembly Part
Age: Bogie Component
Bolt Grade: No

Product Description

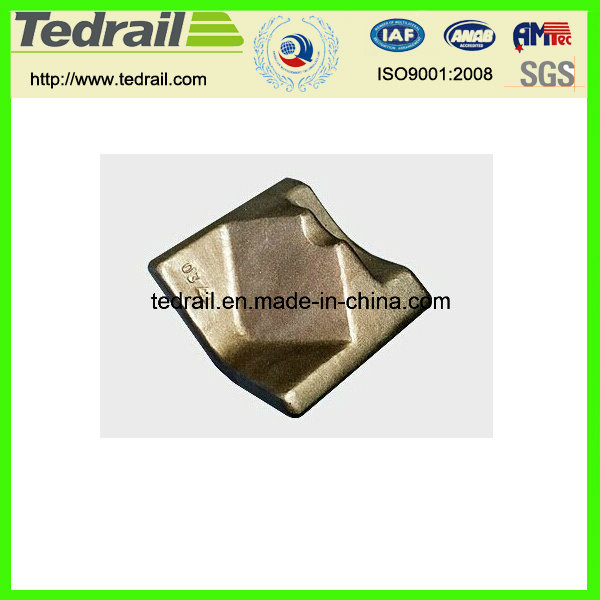

Wedge 106.02.003-2

The Weight of Wedge is 5KG. We supply all kinds of Wedge, and also the related products. If you need more infos, pls contact us directly.

BOGIE
A Bogie as well as called Truck American is a chassis or framework carrying wheels, attached to a vehicle, thus serving as a modular subassembly of wheels and axles.

Bogies serve a number of purposes:
Support of the rail vehicle body.
Stability on both straight and curved track.
Ensuring ride comfort by absorbing vibration and minimizing the impact of centrifugal forces when the train runs on curves at high speed.
Minimizing generation of track irregularities and rail abrasion

Key components of a bogie include:
The bogie frame: This can be of inside frame type where the main frame and bearings are between the wheels, or (more commonly) of outside frame type where the main frame and bearings are outside the wheels.
Suspension to absorb shocks between the bogie frame and the rail vehicle body: Common types are coil springs, or rubber airbags.
At least one wheelset, composed of an axle with bearings and a wheel at each end
Axle box suspensions absorb shocks between the axle bearings and the bogie frame. The axle box suspension usually consists of a spring between the bogie frame and axle bearings to permit up-and-down movement, and sliders to prevent lateral movement. A more modern design uses solid rubber springs.
Brake equipment: Two main types are used: brake shoes that are pressed against the tread of the wheel, and disc brakes and pads.
In powered vehicles, some form of transmission, usually electrically powered traction motors or a hydraulically powered torque converter





Tedrail Supply the most type of freight wagon bogies according to following features:
Bogie Type: Fabricate Type, Ride Control Type
Gauge:
ü  Meter Gauge, 1000mm
ü  Narrow Gauge, 1067mm
ü  Standard Gauge 1435mm
ü  Broad Gauge 1520mm, 1676mm
Wheel Diameter:
         28" (711mm), 30" (762mm),33" (840mm),36" (920mm)
Wheel Type:
Casting wheel, Forging wheel, Tyred wheel
Tedrail can supply most of railway products, such as Bogie parts, Wagon parts, Coach parts, Locomotive parts based on customers' requirements. We have a professional technical and quality assurance team, well understanding of international railway products standard or specification, expert in design, manufacture, and inspection for railway products. With our experienced and educated business team, Cooperated with Chinese railway industrial university, Tedrail has got most valuable technical support and knowledge base.

Tedrail is focused on the complete solution of railway industry, and interested in sharing experience and cooperation with all parties in the world.

Our Team

We have a strong technical team, lots of them have been engaged in the production line for many years, with a more profound experience about production and processing of products.

Our team comprises:

Management Team

Senior Engineer

Engineer

QA Team

Workshop staff

QA Team

We have a professional technical and quality assurance team, well understanding of international railway products standard or specification, expert in design, manufacture, and inspection for railway products. We will make sure give customers best design and most reliable and safe products. With our experienced and educated business team, Tedrail give customers easiest and convenient business service.

Our railway industrial products are tested:

1. Chemical Analysis

2. Metallographic

3. Mechanical Analysis

4. Ultrasonic Testing

5. Magnetic Testing

6. Impact Testing

7. Hardness Testing

8. Surface Quality

Customer Satisfaction

For attaining customers' satisfaction, we manufacture and supply superior quality railway products that are cost efficient and highly durable. Our railway products are manufactured by using superior quality raw materials and checked by our quality analysts at every level of production process. Our range of products is widely acknowledged by our customers because of its quality and effectiveness.

Why Us?

We are one of the most promising organizations who have achieved a leading position in this domain due to the following factors:

Rigorous quality control measures

State-of-the-art infrastructure

Ethical business policies

Experienced professionals

Wide distribution network

Team of skilled personnel

On time delivery
