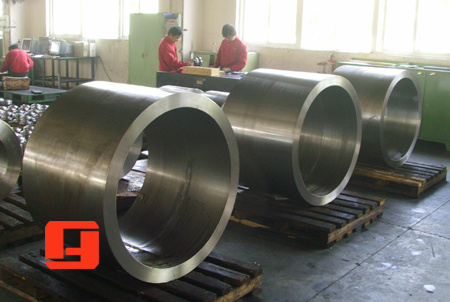

Forging Cylinder

Name: Forging Cylinder
Brand: china-castingforging.com
SKU: 674836055
Availability: InStock
Rating: 4.5 (20 reviews)

Price:	Negotiable
Min Order:	1

Contact Supplier

TianYuan(HK) International Limited

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Deformation Temperature:	Hot Forging
Molding Style:	Forging

Product Description

Specializing in forging, valve body, Tube sheet, Forged shaft, Flange, Forged ring, Forged valve, Forged disc, Forged cylinder, Forged piece, free die forging, open die forging

Item	Description
	Forged Type
	Flange,Fitting,Ring,Pipe&Tube,Barrel,Bearing,Block,Shaft,Closures,Nozzle,Bushe,Coupling,Crankshaft,Eccentric-Shaft,Cylinder,Compressor Crankshaft,Blower Shaft,Spindle,Gear,Roller,Steam Turbine Rotor,Shaft For Wind Turbine,Ship Shaft Coupling,Valve Parts,Wheel,Column,Crane Shaft,Valve Body,Hollow Shaft,Impeller-for-Steam-Turbine,Input Shaft,Intermediate-Shaft,Forged Manifold,Mill Roller,Parts for Pressure Vessel,Piston,Sleeve,Stabilizer,Vacuum Chamber
	Materials
	1) Wind power shaft: 42CrMo4V, 34CrNiMo6,Wind power flange: S355, C22, 16Mn, 20Mn, 42CrMo, F304 2) Forged pipe fittings: SA106 CL B, SA 106 CL C, WB36, 12Cr1MoV, SA 335 P11, P12, P22, P91, SA182 Gr. F1, Gr. F5, Gr. F11 CL2, Gr. F12 CL2, Gr. F22 CL3, SA350 Gr. LF1, Gr. LF2, Gr. LF3, 3) Pressure vessel forgings: SA105, SA350 LF2, 16Mn, 20MnMo, 15MnMo, 12Cr2Mo1, 14Cr1Mo, F304, F316, 17-4PH(630),S31803,S32750 4) Shaft related forgings: 25CrMo4, 42CrMo4, 40CrNiMo, 34CrNi3Mo, 25Cr2Ni4MoV, 18CrNiMo5, 30CrMo, 4130,4140 5) Gear related forgings:35CrMo, 34CrMo4, 4137, 42CrMo, 4140, SCM440, 20CrMnMo, 40CrNiMo, 20CrNi2Mo, 20Cr2Ni4A, 34CrNi3Mo
	Product Range
	1) Shaft forging weight: 1T-30T, OD-5000mm 2) Sleeve forging Max. OD 3500mm, Max, weight: 8T. 3) Cylinder forging Max. Length 6000mm, Max. OD 1600mm, Max Weight 30T 4) Gear Forging Max. weight 5T 5) Gear shaft forging Max. weight 30T 6) Forged tee for power mill use: Max weight 85T, Max OD 5000mm, Max appliance for 100MW power plant (SA336/SA182F11, F91, F22) 7) Forged tube Max. OD-3500mm, Max Length—15000mm 8) Valve body, valve cage flange(2000-35000kg)
	Main Manufacture Equipment
1	Saw Machine
2	D53k-400/315-6300/1000Numerical Control ring rolls
2	Finished-size :External Diameter Range 600mm~6300mm Height Range 80mm~1000mm
3	D53k-200/125-3000/500 Numerical Control ring rolls
3	Finished-size :External Diameter Range 500mm~3000mm Height Range 70mm~500mm
4	4500T forging hydraulic machine
5	2500T forging hydraulic machine
6	10T double arm type free forging electric liquid hammer
7	3T double arm type free forging electric liquid hammer
8	1T air hammer
9	750 Kg air hammer
10	560 Kg air hammer
	Test Equipment
1	Electronic Universal Testing Machine
2	Metal pendulum impact testing machine
3	Ultrasonic flaw detector
4	Metal pendulum impact testing machine
5	Digital ultrasonic defect detector
6	Electron configuration hardness tester
7	Rockwell hardness tester
8	Transistor type automatic thermostat console
9	Digital readout electric drying oven with forced convection
	Noted:
	Max. weight:50 ton MOQ: 1ton FOB port: Shanghai Port. China Delivery time: 60 ton in 30 days. Delivery condition: rough or machined Payment: TT,L/C

Dingxiang CHN Flange Forging Co., Ltd. is located in the State Dingxiang named"hometown of forging", founded in 2006 invested by TianYuan(HK) International Limited be specialized in manufacturing various kinds of high quality flange and other forging.

Being a designer and manufacturer of flange and forgings in the industry. We provide both standard and customized designs in a large range of different pipeline system. Our main products include Welding Neck, Slip-on, SocketWelding, Threaded, Binld according to ANSI, DIN, JIS, EN, made of ASTM A105, A350, A694, A182, ect. Our engineers are able to design the right products to fit your application and the best solution for your requirements. The products have been wildely used in the industries of petroleum, chemical, foodstuff, metallurgy, construction, electric power and so on.

We have a 4, 000tons Hydraulic Machine and 6300 Ring Rolling Machine operating flange&ring production, the maximum outside diameter is up to 6000mm, maximum gross weight up to 6tons. Our annual production capacity of Flange is 5000tons;

We do a whole set of chemical and mechanical performance test, metallurgical structure, hardness test, NDE test, salt-fog test, film thickness test, roughness test, and the lowest temperature of impact test can be -196 degree C.

We treat Quality, Customer, Market, Upgrade as the most important.
