| Prod Model: |
SS91 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Stainless Steel/Alloy Steel/Carbon Steel etc |
| Diameters: |
50-5000mm |
| Weight: |
0.1-3000kgs |
| Standard;: |
ISO9001:2008 |
| Certification: |
ABS, Dnv, BV, Gl, Lr, Kr, CCS, Nk |
| Molding Style: |
Forging |
| Processing Object: |
Metal |
Product Description
We specialized in manufacturing various forging parts in China. We have a lot of forging customer at home and abroad. So if you need forging parts, please do not hesitate to contact us.

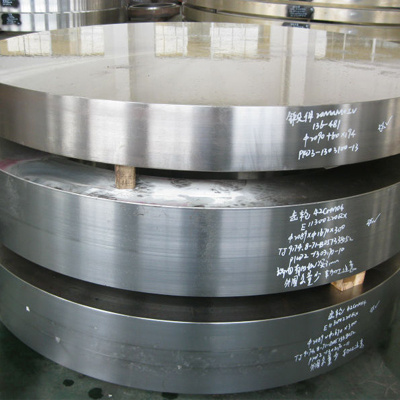

Forging Disc/ Forging Disk /Forging tube sheet
Steel grade:
Carbon steel:
Chinese Standard: 20#, 25#, 35#, 45#, 50#, 60#;
Japan Standard: S20C, S25C, S35C, S45C, S55C, S60C;
US Standard: AISI1020, AISI1040, AISI1045, AISI1050;
Europe Standard: CK15, C. 22, C45, CK45, C60, CK60; C45E;
Alloy Steel:
Chinese Standad: 16Mn, 20Mn, 30Mn2, 30Mn5, 40Cr, Q345D, Q345E,
Q390; 42CrMo, 20CrMo, 38CrMoAl, 40CrNiMo; 48CrMo, 5CrNiMo;
Janpan Standard: SCM415, SCM420, SCM440, SNCM439, SNCM220; SACM645
USA Standard: SAE4140, SAE4130, SAE9840, SAE4340, AISI4145H, SAE4150,
SAE8620,
Europe Standard: 42CrMo4, 25CrMo4, 34CrNiMo6, 39CrNiMo3,
17NiCrMo6, 18CrNiMo7-6, S355J2G3, ASTM A105, ST52-3, 16MnCr5,
20MnCr5, 16MnCrS5, 20MnCrS5, 21CrMoV511, 56NiCrMoV7, 18NiCrMo5,
30CrNiMo8, 34NiCrMo16, 41CrAlNi7, 34CrAlNi7, B7, B16, F11,
F12, F22, F5, F9, 51Cr4.
Tool Steel: 1.2714, H13, H11, P20, SKD61;
Delivery condition: Forged+Normalized/Annealed+RoughTurned
+Quenched and Tempred;
Also can supply the finish products according the drawings;
Length: 3 meters or 4 meters and up or fix length according the actually needs
Size: 90mm-800mm
Diameter tolerance: -0/+6mm Black surface -0/+2mm Rough Turned
Steel ingot: EAF+LF+VD;
Also use ESR Process if needed;
Ultrasonic Test: According GB/T6401-91 Class 1, Class 2, Class 3;
And GB/T6402-2008 Class 3, Class 2;
And Sep1921 Class C/c, D/d, E/e, Or ASTM A388 Standards;
Grain Size: Better than 6;
Purity, non-metallic inclusions, mechanical properties, hardness According China or EU
Standard;
Quantity: 70000 Tons per year
Including Forged round bar 55000 Tons,
Forged square bars 12000Tons,
Other forgings like forged step shaft, forged hollow bars, forged rollers 3000 Tons;
Manufacturer: Jiangsu Zhuhong Forging Co., Ltd
Technics: Open die forging(free drop forging) Manufacturer in China, open die forging(free drop forging) Supplier in China, open die forging(free drop forging) Factory in China, open die forging(free drop forging) Exporter in China
Shangyu City Tongte Forging Co., Ltd is not just supplying customers a component or part, but considering from the end machinery or equipment, to ensure every part or component from us will be the best and most-effective solution and maximize the customer's satisfaction. Let our customers be free from worries, be at ease on the products is Tongte Forging's everlasting pursuit.
After several year's efforts, Tongte Forging has successfully exported its products to more than 20 countries and areas, such as Australia, USA, Germany, England, Sweden and so on. In the next 3 years, Tongte Forging will devoted to making itself to be an innovation and service brand in the overseas market and quick grow together with our suppliers and business partners.
Tongte Forging's work is based on integrity and honesty. We believe continuous innovation and technology will change the earth and future.
