| Prod Model: |
M6~M100 |
| Markets: |
North America,South America,Eastern Europe,Western Europe |
| Deformation Temperature: |
Hot Forging |
| Molding Style: |
Forging |
| Molding Technics: |
Pressure Casting |
| Casting Method: |
Sand Casting |
Product Description

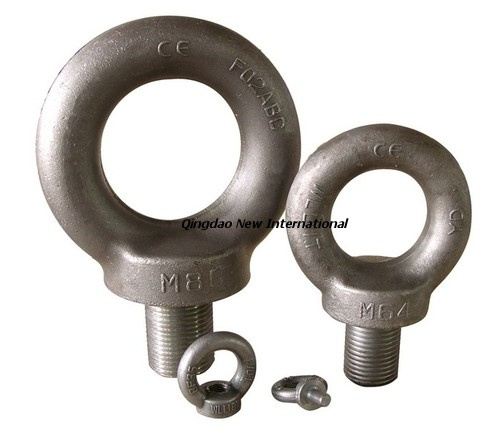

DIN 580
Process: Drop forging, die forging, hot forging
Thread according to DIN13
Material: Steel C15, steel C15E, 42CrMoV, Stainless Steel A2, A4 etc.
Finish: Plain, galvanization, hot dipped galvanization, phosphating, polishing
Specification: M6-M100
Certification: CE
We have five factories for casting, forging, stamping, machining and welding parts with more than 20 years experience. 90% of our products were exported to Germany, Japan, USA, Italy, Sweden etc.
Our main products are: All casting parts, all forging pars, stamping parts, lifing eye bolsts( DIN, ASTM, JIS etc), DIN bolts, nuts, washer, pin, screw, DIN lifting eye bolts, eye nuts, timber connector and automotive parts etc.
Produce according to your drawings and samples.
Welcome to our factories for visiting and discussing.
Size
d |
WLL
(tons) |
Dimensions (mm) |
Weight
(kgs/100pcs) |
|
A |
B |
C |
D |
E |
F |
|
M6 |
0.08 |
17 |
28 |
16 |
13 |
6 |
17 |
5 |
|
M8 |
0.14 |
20 |
36 |
20 |
15 |
6 |
18 |
6 |
|
M10 |
0.23 |
25 |
45 |
25 |
18 |
8 |
22 |
11 |
|
M12 |
0.34 |
30 |
54 |
30 |
22 |
10 |
26 |
18 |
|
M14 |
0.49 |
35 |
63 |
35 |
28 |
12 |
30 |
28 |
|
M16 |
0.70 |
35 |
63 |
35 |
28 |
12 |
30 |
28.5 |
|
M18 |
0.95 |
40 |
72 |
40 |
30 |
14 |
35 |
45 |
|
M20 |
1.20 |
40 |
72 |
40 |
30 |
14 |
35 |
45 |
|
M22 |
1.50 |
45 |
81 |
45 |
35 |
16 |
40 |
67 |
|
M24 |
1.80 |
50 |
90 |
50 |
38 |
18 |
45 |
87 |
|
M27 |
2.50 |
50 |
90 |
50 |
38 |
18 |
45 |
88 |
|
M30 |
3.60 |
65 |
108 |
60 |
45 |
22 |
55 |
166 |
|
M33 |
4.30 |
65 |
108 |
60 |
45 |
22 |
55 |
172 |
|
M36 |
5.10 |
75 |
126 |
70 |
55 |
26 |
65 |
265 |
|
M39 |
6.10 |
75 |
126 |
70 |
55 |
26 |
65 |
280 |
|
M42 |
7.0 |
85 |
144 |
80 |
65 |
30 |
75 |
403 |
|
M45 |
8 |
85 |
144 |
80 |
65 |
30 |
75 |
425 |
|
M48 |
8.6 |
100 |
166 |
90 |
70 |
35 |
85 |
638 |
|
M52 |
9.9 |
100 |
166 |
90 |
70 |
35 |
85 |
660 |
|
M56 |
11.5 |
110 |
184 |
100 |
80 |
38 |
95 |
880 |
|
M64 |
16.0 |
120 |
206 |
110 |
90 |
42 |
105 |
1240 |
Qingdao New International Group has following manufacturing plant: Yuandong Mechanical & Exectrical Parts Co., Ltd., Automtive Spare Parts Co., Ltd., Yudong Riggings Co., Ltd., Stamping & welding company, New International Imp&Exp Co., Ltd.
The main products are: DIN, BS, ASTM malleable pipe fittings, casting parts in malleable, ductile iron, gray iron, resin sand casting steel and investment casting steel. Non-ferrous casting products, hot forging parts including marine hardware, shackles, eyebolts, automotive forging blank parts, stamping hardware, spike, alloy-aluminum stamping parts, hot dipped galvanized products. The company has obtained ISO9002 quality certification, Korea KS quality certification and Germany XX certification.
