| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Outside Diameter From 100mm to 5000mm |
| Molding Style: |
Forging |
| Processing Object: |
Metal |
Product Description

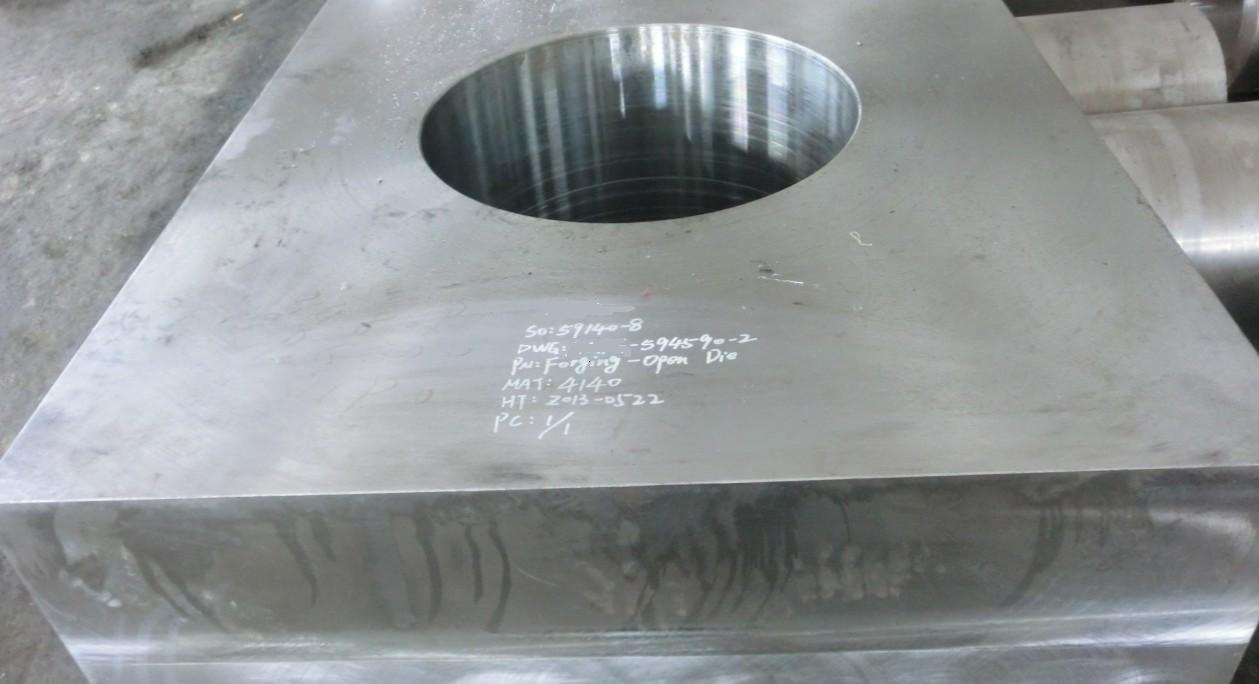

forging open die block with hole inside
Features:
1) Standards: ASTM, ASME, AISI, DIN, EN, JIS
2) Materials: Carbon and stainless steel
3) Customers' designs welcomed
The company is committed to research and development of new materials. After decades of accumulated experience, in addition to ordinary carbon steel, alloy steel, stainless steel, our company also has rich experience in production of duplex stainless steel, martensitic stainless steel, nickel-base alloy and other special materials.
There're 198 kinds of raw material in stock, including Chinese standard, American Standard, European standard, etc. The existing gross tonnage is about 3500 tons, supplying sufficient quantity to customers' demand.
Specifications
Forged pipe
Grade: ST 52 Metric Size
Inside diameter from 40 to 1000 mm
Max length 20m
Forged pipe
QUICK DETAILS:
L Grade: ST 52, stainless steel, alloy steel and special steel
L Metric size: Inside diameter from 40 to 1000mm (skiving tube ID max 500mm),
L Max length 20m.
L Straightness: 0.5 /1000
Tolerance EXT: DIN 2391
Tolerance INT: ISO H8
Roughness(Ra): 0.2 to 0.4µ
Type: Cold drawing, normalizing treatment, honing or skiving.
|
JiangYin LongYu Forging Co., Ltd |
|
No. 168 Shashan Road, European Industrial Park, Zhouzhuang Town, Jiangyin, Jiangsu, China |
|
Tel: 0086 1595012 4887 |
|
|
Fax: 86-0510-86223753 |
|
Products: |
Free forging/Forged Open die |
|
Material: |
Vacuum Degassed Ingot of Carbon Steel & Alloy steel & Stainless Steel |
|
Forging Equipments: |
1.8tons, 6tons Electrical Hydraulic Hammer |
|
|
2.1ton, 750KGS, 560KGS, 200KGS air hammers |
|
Heat treatment: |
Normalized/quench and temper/annealed/solution treatment |
|
Machining Equipment: |
1. Horizontal Turning Machine |
|
|
2. Vertical Turning Machine |
|
|
3. Milling Machine |
|
|
4. Drilling Machie |
|
|
5. CNC etc. |
|
Quality System: |
ISO9001: 2008 |
|
Cetificate: |
PED 97/23/EC, ABS, BV, GL, DNV |
|
Products Type: |
Maximum Diameter(mm) |
Max. length(mm) |
Maximum weight(ton) |
|
Ring |
4900 |
400 |
35 |
|
Shaft |
2000 |
8000 |
35 |
|
Block |
3500 |
/ |
8 |
|
Hollows |
1500 |
3000 |
8 |
|
Flange |
4900 |
400 |
8 |
|
Round bar |
2000 |
8000 |
15 |
|
Unusualshapes |
1500 |
400 |
8 |
|
Forging Ratio: |
≥ 3.5 |
|
Annual Production Ability: |
28800 tons |
|
QA & DOC: |
EN10228 3.1 Certificate, Chemical Composition Report, Mechanical Properties Report, UT Report (according to EN10228-3, SA388, Sep 1921 etc. ) Heat Treatment Report, Dimensions Check Report |
We are located in an industrial town -- Zhouzhuang Town, Jiangyin City, which belongs to the beautiful and fertile Yangtze River Delta. It is 18km away from Jiangyin City in the east, and 3km from Huaxi crossing of Riverside Highway in the north. Established in 1985 as a township enterprise, we became a private owned enterprise in 1997.
Our company currently covers an area of 25, 000 square meters, with a building area of about 10, 000 square meters. Our total capital reaches 80 million Yuan, including fixed assets of 30 million Yuan. We are equipped with a full set of flaw detection, and chemical testing equipment (an electro-hydraulic hammer of 8 tons, 2 air hammers of 1 ton, 3 air hammers of 750Kg, 1 air hammer of 560Kg, 1 air hammer of 150Kg); 10 saws; 3 heat treatment furnaces (75KW, 500KW, 580Kw), and 20 metal processing equipment (vertical lathe of 2.5 meters, sleeping car of 8 meters, sleeping car of 1.25 meters, various lathes, vertical drills, radial drills and other equipment).
We are a professional supplier of forging parts, and are able to produce forgeable pieces and flanges of various sizes. Our products are used in pressure vessels, mechanical manufacturing industry and other industries. We staff 108 employees, including 20% professional technical personnel, among whom 1 has senior professional title, 4 have medium-grade professional titles, and 3 have primary professional titles. We enjoy extensive experience in producing machinery forgings and we are well received by users with excellent after-sales services. Moreover, we were awarded the title of "Trusted Quality Enterprises". We are also a member of China Forging Industry Association, and have attained "Quality System Certification" and national "Pressure Pipeline Components Manufacturing Permit".
"Providing first class quality and first-rate service" and "Improving quality management system constantly to meet customers' needs" is our aim. In order to further enhance staff's awareness, we comprehensively regularize our quality system and always think about what users think.
Our company is willing to enhance sincere cooperation with all customers for mutual benefits. We look forward to your investigation and guidance.
