Product Description

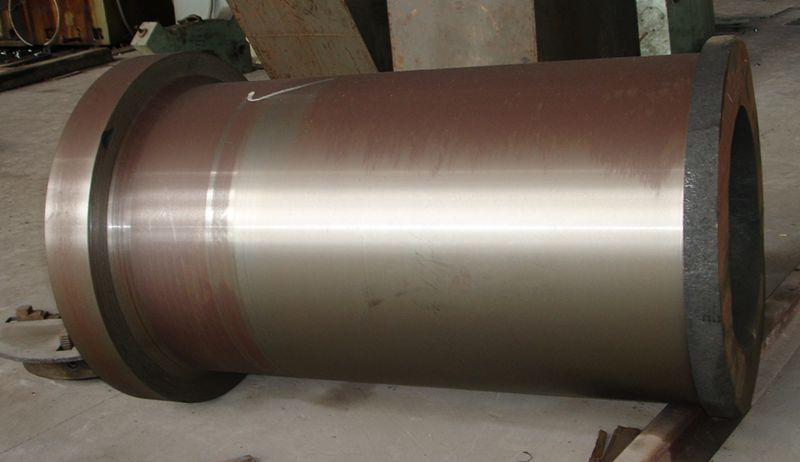

Forged Tube/Forging Tube
Material:
S355JR, 16Mn, 42CrMo4, 1045, 4340, 4140, F91, 316, 304
1. Forging style: Open die forging/free forging
2. Materials: Alloy steel, carbon steel, stainless steel
3. Specification: Max weight: 80tons for forging, 120tons for ingot
4. Production Process: Ingot Buying---Chemical Composition Test---Heating---Forging---UT and Dimension Test---Normalizing & Tempering, Proof Machining---UT and Dimension Test---Sample Taken---Mechanical Property Test---Quenching & Tempering---Second Machining---UT and Dimension Test---Final Machining— MT and Dimension, surfaceness Test.
5. Application: Used for ship, power generation, metal processing machinery, metallurgy machinery, mine industry, etc.
6. UT test: 100% ultrasonic test according to EN10228, ASTM388, Sep 1921 C/c etc.
7. Factory Report: EN10204 3.1-----Chemical Composition, Mechanical Property, UT and MT, Heat Treatment report, Dimensions etc.
8. Inspection: Factory self respection or by the third party
9. Standard: ASTM, GB, DIN, BS, JIS, etc
10. Ship Classification Society: GL, BV, NK, LR, DNV, CCS, ABS
Quality Control System: ISO9001-2008
Over 20 years' experinece in open die forging industry; 70MN hydraulic oil press and 6 tons hammer, horizontal and vertial lathe, milling, cutting, CNC lathe etc for forging and machining; Different size and shape of forging, as Shafts, gears, rollers, valves, flanges, discs, rings, bars, Blocks, etc, normally used for electric genertaion, boat building, petrol Industry, mine industry, machinery manufacturing transmission, etc.
