| Prod Model: |
01100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Part No: |
00210 |
| Color: |
White/Yellow |
| Hydraulic Fitting: |
Ferrule |
| Manufacture: |
Factory |
| Original Place: |
Qingdao, China |
| Material: |
Medium Carbon Steel |
| Standard: |
JIS |
Product Description

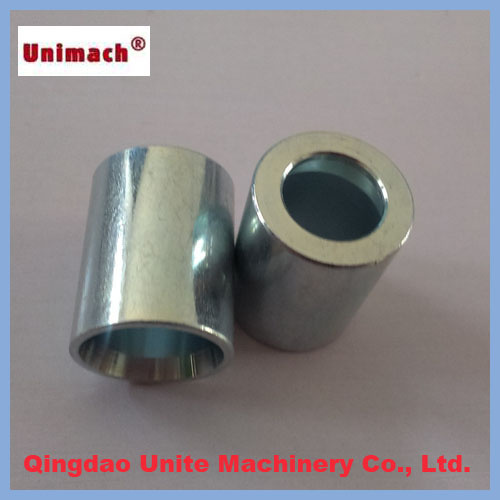

Skive Carbon Steel Hydraulic Hose Ferrule with Zinc Plated(01100)
DETAIL:
Model No.: 01100
Material: Carbon Steel, Stainless Steel
Surface Treatment: Yellow Zinc-Plated
Standards: Eaton, DIN, ISO, SAE, JIC or As customers' drawing
Ferrules:
SKIVE FERRULE FOR SAE 100R1A/EN 853 1ST HOSE
NO-SKIVE FERRULE FOR SAE 100R1AT/EN 853 1SN HOSE
NO-SKIVE FERRULE FOR SAE 100R1AT/EN 853 1SN HOSE
SKIVE FERRULE FOR SAE 100R2A/EN 853 2ST HOSE
NO-SKIVE FERRULE FOR SAE 100R2AT/EN 853 2SN HOSE
NO-SKIVE FERRULE FOR SAE 100R2AT/EN 853 2SN HOSE
SKIVE FERRULE FOR CHINA 1-WIRE HOSE
SKIVE FERRULE FOR CHINA 2-WIRE HOSE
SKIVE FERRULE FOR CHINA 3-WIRE HOSE
SKIVE FERRULE FOR R12/20-24 HOSE
SKIVE FERRULE FOR 4SP,4SH/10-16,R12/06-16 HOSE
SKIVE FERRULE FOR 4SH,R12/32 HOSE
FERRULE FOR SAE 100 R9AT-R12,EN 856 4SP/04-16 HOSE
FERRULE FOR EN 856 4SP/21-16-32 HOSE
NO-SKIVE FERRULE FOR SAE 100R7 HOSE
NO-SKIVE FERRULE FOR TEFLON HOSE
FERRULE FOR SAE 100 R5
INTERLOCK FERRULE FOR SAE 100 R13/R15 HOSE
PRODUCTS PACKAGE: Plastic Bag+Box +wood Pallet
| PART NO. | HOSE BORE | DIMENSIONS |
| DN | DASH | D | L |
| 01100-03 | 5 | 3 | 17 | 28 |
| 01100-04 | 6 | 4 | 19 | 30 |
| 01100-05 | 8 | 5 | 21 | 32 |
| 01100-06 | 10 | 6 | 23 | 32 |
| 01100-08 | 12 | 8 | 28 | 34 |
| 01100-10 | 16 | 10 | 31 | 39 |
| 01100-12 | 20 | 12 | 34 | 43 |
| 01100-14 | 22 | 14 | 37 | 43 |
| 01100-16 | 25 | 16 | 41 | 50 |
| 01100-20 | 32 | 20 | 49 | 59 |
| 01100-24 | 38 | 24 | 55 | 74 |
| 01100-32 | 51 | 32 | 68 | 78 |
QINGDAO UNITE MACHINERY Co., Ltd(HAITE GROUP) is located in the beautiful seaside city-Qingdao China, which has very beautiful picturesque view and very convenient transportation. Qingdao port is one of the biggest ports of China and our factory is about 15 minutes to Qingdao airport. We specialize in the manufacturing of hydraulic fittings for many years and we have distributors and buyers all over the world.
Products: Our main products include: Ferrule, Hydraulic fitting(Metric, British, American, staplelok, etc. ), Banjo, Adaptor, Hose assembly, and Hose Crimper machinery.
R&D: We have big talent pool which has a large group of exporters and engineers. Some of them have been working in this field for more than 10 years and they have strong knowledge and experience in new product development and quality guarantee.
QC: We adopted an advanced and strict quality control system to guarantee our products comply with or exceed the quality standard.
Market: We focus on both domestic and international markets. Our buyers and distributors include some big and prestigious companies.
Principle: Quality first! Your satisfaction is our biggest goal!
