| Prod Model: |
JJM-R |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Metal Rolling&Drawing Machine |
Product Description

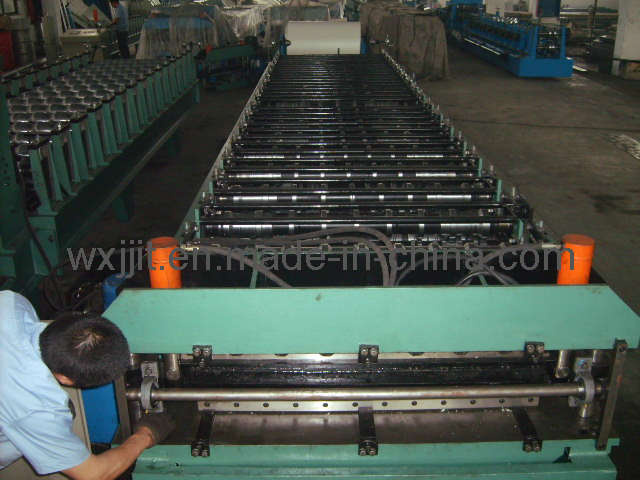

No-girder and columniation curve roll forming machines, roll forming machines for roof panels and walls, C and Z shaped purline
No-girder and columniation curve roll forming machines, roll forming machines for roof panels and walls, C and Z shaped purling forming machines, steel tile forming machines, guard roll forming machines, down pipe forming machines, cable tray machine
1.1 Main dimension: 11400 x 1600 x 1800mm
1.2 Total weight: 14000kg
1.3 Main motor: 18.5kW
1.4 Hydraulic motor: 5.5kW
1.5 Hydraulic pressure: 15-20MPa
1.6 Steps of rollers:
Feeding & guiding: Two sets
Lveling: One set, seven rollers
Main forming: 14 steps
Rib making: One step
Rectifying: One step
1.7 Forming speed: 15 m/min maximum
1.8 Changing speed from one profile to another or from one size to another size: 3 minutes.
1.9 Purlin specifications:
For C purlin: 100-350mm
For Z purlin: 100-350mm
1.10 Suitable material: 1.6-3.2mm, Q195~235 cold rolled steel, hot-zinc coil
1.11 Material of rollers: GCr15, 9CrSi, quenched
1.12 Material of rib roller: GCr15, 40Cr, quenched
1.13 Shape of rib: Slash rib
1.14 Dimension of punch adjustable: 45-500mm
Wuxi Jing Jia International Trade Co., Ltd. is located by the coast of beautiful Tai Lake of the Yangtze River Delta, Wuxi, with Shanghai-Nanjing Railway, Xin-Chang Railway, Beijing-Shanghai Expressway, Shanghai-Nanjing Expressway and Huyi Expressway converging and the Grand Canal (China) passing through, only 100m from National Highway 312. It is a modern technology enterprise integrating R&D, manufacture, technical service and import & export trade. Our tenet is "Build Credit Once, Serve You Forever!
To adapt to the development of domestic and foreign steel structure, the company has been engaged in production of steel structure roofs and wall containment channeled steel plate equipment for years. It is also committed to the R&D of new products. We have developed many series of channeled steel plate production lines from the initial monolayer corrugated sheet pressing production line, such as slitting line production line, series hidden gripping wall roof plate production line, series colorbond sandwiched steel plate production line, series C-type steel and Z-type steel numerical control tape punching and purlin production line, series floor steel bearing plate production line, PU load board production line, series arch roof with or without beam and series production equipment, fully meeting requirements of all steel buildings.
Our company has strong technical strength, high-level management personnel, strong production capacity and complete quality tracking and detection. We have passed the certification of ISO9001: 2000 Quality Management System, and the quality management during production strictly executes 9001 standard. The company has ranked among the industry in China, our users spread all over China and our products are exported to many countries and regions in Southeast Asia, South Africa, America, etc. We have established good cooperative relationship with many manufacturers and distributors, forming wide product marketing channels.
Wuxi Jing Jia International Trade Co., Ltd. will give play to its advantages of technology, market channel and market development capacity to provide professional and excellent service for manufacturers and users at home and abroad.
