Foundry Industry Crane and Casting Ladle Crane

Foundry Industry Crane and Casting Ladle Crane
Price: Negotiable/Piece
Trade Terms: FOB,CIF,others
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: YZ
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
GB/T 24001-2004 Idt ISO14001: 2004: Passed
GB/T 19001-2000 Idt ISO 9001: 2000: Passed
GB/T 28001-2001, Ohsas18001: 1999: Passed
Limited Switch: Included
Polyurethane Material Buffer: Included
Current Overload Protection System: Included
Voltage Lower Protection Function: Included
Lifting Mechanism: Electrical Hoist
Main Electrical Parts: Siemens Brand
Condition: New
Power Source: Electric
Sling Type: Wire Rope
Certification: GOST SGS
Type: Double Beam Crane
Application: Mineral Area Usage

Product Description

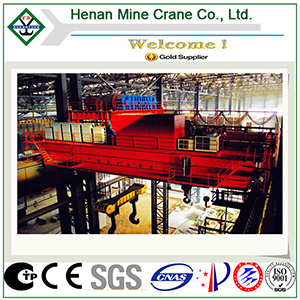

Foundry industry crane and Casting hanging Crane

Foundry crane is one of the main equipments in the continuous casting technology of steelmaking. It is mainly used for pouring melted iron from additive bay of converter to converter; Lifting melten steel from refining bay to refining furnace or lifting melten steel from melten steel bay to ladle turret of continuous casting machine.

The overall structure of foundry crane has the following forms: Two girder and two rail, four girder and four rail, and four girder and six rail, etc. The form of two girder and two rail, four girder and four rail, are mainly used for middle and large-tonnage foundry crane; The form of four-girder and six-rail and two trolley is mainly used for extra large-tonnage foundry crane.
Name Hoisting Mechanism Name Travelling Mechanism
Main Trolley Aux Trolley Bridge
Lifting Capacity  T 75 20 Rail Distance M 7 1.8 16.5
Hoist Speed  m/min 7.73 18.7 Travelling Speed M/Min 39.2 46.5 77.7
Working System A7 A6 Working System A6 A6 A7
Max Lifting height M 16 18 Buffer Distance  mm 100 100 240
motor Power kw 63*2 55 Motor Power kw 18.5 5 18.5*2
Rotation Speed r/min 584 725 Rotation Speed r/min 721 935 721
Span  M 16.5 Max wheel pressure
Total Power kw 249.5 Rail type 43kg/m 43kg/m QU80
      Total weight 44.3 7.01 154
Power Source 3Phase  380V      50HZ
We are a shareholding industry enterprise, engaged in the manufacture and sale of "Kuangyuan" brand electric hoists, single or double beam overhead cranes, gantry cranes, grab cranes, foundry cranes, anti-explosion cranes and related spare parts. We have gotten production, installation, modification and maintenance licenses issued by the General Administration of Quality Supervision, Inspection and Quarantine, and is a director-lever member of China Association of hoisting Industry and China Association of Heavy Equipment Industry.
We have more than 2700 employees, cover 680, 000 square meters and hold RMB380 million capital and over 380 branches around the world. The 1200-plus sets of equipment enable us to finish independently over 20 technological flows, including lathing, milling, planning and grinding. More than 180 medium and senior technical staff members are responsible for the design and production guidance of whole products. We have passed ISO9001: 2000 international quality control standard, ISO14001: 1996 environment and ISO9001: 2001 health and safety standard. We have a perfect quality-control system, a strict management system, strong production capabilities and advanced testing measures to ensure the high production and high quality.
Our company does continually investment, and all kinds of economic targets are increased by 30% annually. Our products are very popular in the market, and have been sold well in more than 30 provinces and cities in China, for instance, our single beam overhead crane has scored No. 1 on quantity for continuous 3 years in Chinese market. Meanwhile, we have exported our cranes to Australia, Vietnam, India, Thailand, the United States, Pakistan, Egypt, Bangladesh, the Philippines, Malaysia, Singapore, Malta, Turkmenistan, Saudi Arabia, Peru, Ethiopia and other countries and regions.
Every year, we manufacture and sell more than 3500 sets of double beam and gantry cranes, more than 19000 sets of single beam cranes, more than 23000 sets of the single and double-beam electric hoists and related accessories. Our output and economic benefits per capital are at the first head in the same industry. Our company has won more than 120 honors, such as "Advanced Science and Technology Enterprise", "Top Trademark in China", "Top-10 Brand of Crane in China", "Henan Famous Goods", "Henan Famous Trademark", "Quality Management Qualified Enterprise", "High Credit Enterprise", "Enterprise without Counterfeit, Fraud or Unjust Competition", "Quality Reliable Company", "Advanced Science and Technology company" and "Famous Brand on CCTV Recommended List".
Our company is a high & new technology enterprise in Henan Province, through continuous technology innovation, developing new products, improving the technological content of products to meet the market demands for higher quality hoisting equipments. On the basis of the digestion and absorption of advanced crane design and manufacturing technology in China and abroad, we make the great effort to redesign of the electric hoists and single and double beam cranes, keep pace with the other international similar products company and have occupied the commanding location of the market.
We are in the Central Plains of China, with advantageous geography and humanities, having the scientific management system, automatic office system, huge production capacity, advanced inspection ways and stronger sales nets, then producing the "Kuangyuan" brand series products which have high quality and reasonable prices to serve the markets at home and abroad. The "Kuangyuan" people have a decision to make our company be first class in the crane industry in China, making the great effort to use our wisdom and ability to write out the most brilliant Chinese nation' S industry flying chapter!
Quality makes the brand, integrity weaves bright future and your ideal is our pursuit. We hope cooperate with all kinds of trade friends and create large brilliance together!
