| Prod Model: |
Z14 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Selectable |
| Waranty Time: |
One Year |
| Color: |
Selectable |
| Spar Parts: |
Available |
| Type: |
Clay Wet Sand |
| Machining: |
Resine |
| Surface Treatment: |
Shape |
| Standard: |
ISO |
Product Description

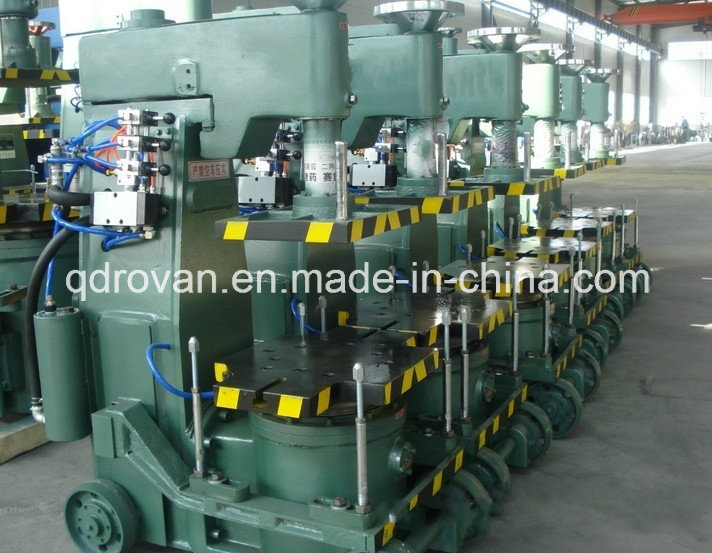

Z14 series Foundry resin sand compaction machine
Z145WA/B Hot sale jolting sand molding machine For Foundry
1.The machine using the fuselage box structure basket to improve the body of the steel.
2.It adopt microseism squeeze molding technics used to significantly increase the pressure and the strength to make up hardness HB90 sand box more than one level to increase surface roughness, make the quality of the other products stable.
3.Shock part of it with a buffer spring, effectively reduce the impact of machine-to-base.
4.The machine adopt cylinder, crank, connecting rod, synchronizing shaft achieve molding synchronously
5.Control part, all pneumatic components used to achieve the overall functionality, simple operation, easy maintenance.
6.It is easy to operate, visual sand, the operational procedures can be humane and effective to increase productivity.
Foundry resin sand compaction machine Technical parameter:
Name |
Z143WA |
Z145WA |
Z145WB |
Foundry flask size (mm) |
500*400*200 |
500*450*200 |
550*450*200 |
Worktable (mm) |
560*420 |
600*550 |
700*550 |
Jolting load(kgf) |
200 |
300 |
300 |
Compressive stress (kgf) |
4200 |
6800 |
6800 |
Compress process(mm) |
200 |
160 |
160 |
Moulding process(mm) |
160 |
200 |
200 |
Productivity(case/h) |
40-60 |
40-60 |
40-60 |
Jolting cylinder diameter(Φmm) |
|
150 |
150 |
Consumption of free air(m³/case) |
0.25 |
0.4 |
0.4 |
Outline dimention L*W*H (mm) |
|
1300*800*1700 |
1200*800*1680 |
Foundry resin sand compaction machine Technical parameter:
Item |
Z146W |
Z148WB |
Foundry flask size (mm) |
600*500*250 |
800*700*400 |
Worktable dimension(mm) |
700*550 |
900*700 |
Jolting load(kgf) |
400 |
700 |
Compressive stress(kgf) |
8300 |
17000 |
Compress process(mm) |
150 |
200 |
Moulding process(mm) |
220 |
250 |
Productivity(case/h) |
40-60 |
40-60 |
Jolting cylinder diameter(Φmm,) |
150 |
620 |
Outline dimention L*W*H(mm) |
1100*850*1800 |
1760*1180*2280 |
Qingdao Rovan Machinery Co., Ltd. Was established in 2001, intergrated scientific research, design, manufacture, debugging installation consulting service professional equipment manufacture ent erprises.
The company has always been adhering to the 'win-win' business purposes, to provide customers with quality products and services while focusing on self-construction, introduced ISO9001 quality management system, and built a 100 highly qualified employee to be strong backing.
The company mainly produces casting machinery, rubber machinery and accessories, the products are mainly for shipbuilding, the tire manufacture and the road shot blasting machine, mobile shot blasting machine, tunnels and other special equipment, including clean-up, casting, three series of vulcanizing machine, near dozens of varieties.
The company has always adhered to the 'innovation, pragmatic' entrepreneurial spirit, innovation research out variety of new products. The products are sold throughout the country, excellent quality and perfect service have won the trust of customers, achieved a high market share, the company also won the title of 'Quality Trustworthy Enterprise'.
The company is located in the New Blue City Jiaonan, east of Qingdao, the Huangdao, and Liu Ting International Airport, north of Jiaozhou-Jinan Railway and Jinan-Qingdao Expressway, advanced geographical location.
The company in principle win-win cooperation, welcome new and old customers with us create brilliant!
