| Prod Model: |
YA32-100, YA32-315, YA32-500B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Forging Forming Method: |
Mold Forging |
Product Description
Character:
1. This series of hydraulic machines with a wide range of versatility to adapt to a variety of plastic materials in the processing and forming pressure.
2. Like Bo sheet metal stretching, bending, Flanging, indentation, stamping, extrusion, such as hot and cold at the same time can also be used in a variety of plastic products, powder metallurgy, magnetic materials to suppress the forming of products can also be used for the correction, press-fit and shaping operations
3. We can design and manufacture all kings of non-standard rubber machinery according to the re-quirement of the customers.
Feature:

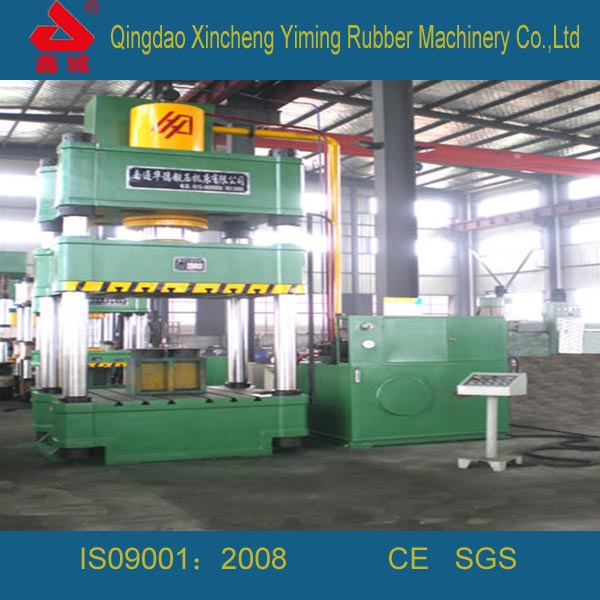

Presses of Series Y32 are suitable for expanding, impressing, forming and drawing of thin metal sheet, for example, they are suitable for producing wristwatch body and it's back cover and band, jewelry, badges, coin like article as well as tableware and ornamental lighting, they are also suitable for component pressing assembly.
Item Unit
|
Four-Column |
|
YJL-63 |
YJL-100 |
YA32-100 |
YA32-315 |
YA32-500B |
|
Rated force |
KN |
630 |
1000 |
1000 |
3150 |
5000 |
|
Ejection force |
KN |
300 |
300 |
300/500 |
400\1600 |
1000/2000 |
|
Return force |
KN |
150 |
190 |
90 |
600 |
930 |
|
Max. Working pressure |
Kpa |
29 |
31.5 |
25 |
25 |
25 |
|
Slide stroke |
mm |
400 |
400 |
630 |
800 |
900 |
|
Ejection stroke |
mm |
180 |
180 |
200 |
250\500 |
300/630 |
|
Daylight |
mm |
650 |
650 |
900 |
1250 |
1500 |
Slide speed |
Idle |
mm/s |
130 |
150 |
200 |
120 |
120 |
|
Pressing |
mm/s |
1~7 |
1~5 |
~10 |
6~12 |
10 |
|
Return |
mm/s |
95 |
75 |
145 |
60 |
40/80 |
|
Ejection speed |
Ejection |
mm/s |
50()100 |
50()100 |
50 |
100 |
75 |
|
Return |
mm/s |
100 |
100 |
95 |
170 |
160 |
|
Table size |
Left-right |
mm |
500 |
500 |
710 |
1200 |
1380 |
|
Front-back |
mm |
480 |
480 |
630 |
1200 |
1400 |
|
Central distance between column |
Left-right |
mm |
575 |
575 |
800 |
1250 |
1600 |
|
Front-back |
mm |
360 |
360 |
460 |
870 |
1100 |
|
Height of working table over floor |
mm |
750 |
750 |
850 |
660 |
500 |
Overall size |
Left-right |
mm |
1340 |
1340 |
2095 |
2650 |
3840 |
|
Front-back |
mm |
1020 |
1020 |
1300 |
2200 |
2800 |
|
Above floor |
mm |
2830 |
2830 |
3500 |
4190 |
4716 |
|
Motor power |
|
kw |
5.5 |
5.5 |
7.5 |
16 |
44 |
|
Weight |
|
kg |
2300 |
2500 |
4200 |
15000 |
27000 |
