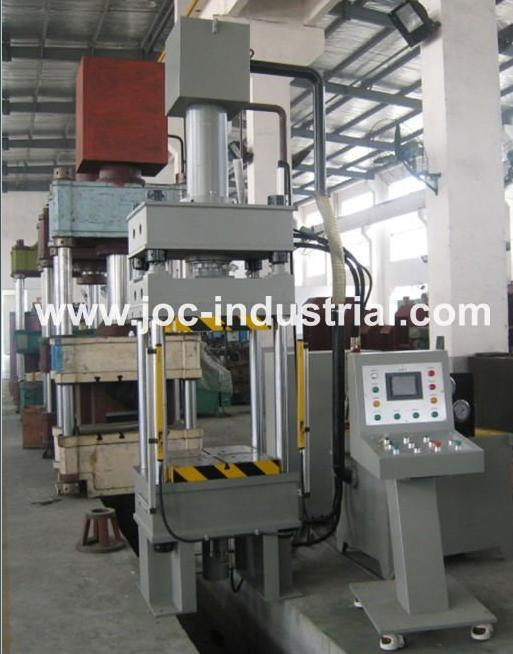

| Prod Model: |
PHF-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
-Norminal force 40-2000T
-Slide stroke 400mm-1200mm
-Two-hand control and single cycle operation
Computer optimized design, 3-beam & 4-column compact structure, with high performance cost ratio cartridge valve integrated unit equipped in hydraulic control by means of proper piping and minimum hydraulic impact design.
Independent electrical control system is adopted in the press adjustment of two-hand/single cycle operation mode at operator's choice preset stroke forming process or preset pressure forming process can be selected on control panel; Pressure holding period can be preset according to requirements stroke and pressure can be adjusted with in specified scope.
Optional accessories:
-Cutting dampening system
-Proportional regulation for slide speed
-Moving table
-Light curtain safety device
-Oil heating/cooling unit
-Die protection unit
-Displacement sensor
-Die exchange cart
-Industrial touching screen monitor
-upper ejector (Hydraulic or mechanical type)
-Floating guide-way and rolling bracket for die exchange
-Working area lighting
-Power socket
-Hydraulic driving system upon upper platform
-Quick die
|
Type/Model |
unit |
PHF-100 |
|
Nominal force |
KN |
1000 |
|
Nominal force |
KN |
250 |
|
The maximum working pressure of the fluid |
Mpa |
26.3 |
|
Daylight |
mm |
800 |
|
Slide stroke |
mm |
500 |
|
Liftout stroke |
mm |
200 |
Slide speed
|
Idle stroke down |
mm |
76 |
|
Working |
mm |
15 |
Return
|
mm/s |
85 |
The size of the working platform
|
L-R |
mm/s |
715 |
|
F-B |
mm/s |
580 |
|
Table height above floor |
mm |
810 |
|
Overall dimension |
mm |
2420x
900x
3420 |
|
Motor power |
kw |
5.5 |
