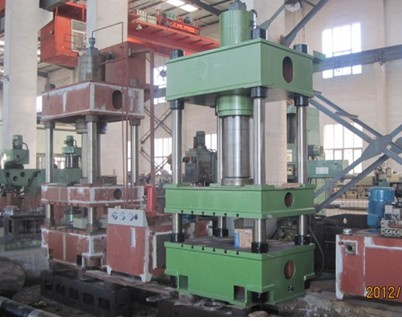

| Prod Model: |
YB32 Series 315 500 630 1000 Tons |
| Markets: |
Southeast Asia,Africa |
| Forging Forming Method: |
Mold Forging |
Product Description
This machine is applicable to the plasticity material pressing process, such as impactive loading, bending, flanging and metal drawing as well as correcting press-fitting, grinding wheel forming, cold extrusion metal parts forming and pressing process of plastic products and powder products, which can be used for punching and blanking process when matching on blanking device. This machine has the independent power mechanism and electrical system which uses the button common control to realize the adjustment, manual and semi-auto operation.
Operators can carry on the adjustment the working pressure, pressing speed and the stroke of this machine according to the process. This machine can complete constant pressure and constant distance process, which can make pressure-keeping and delay to automatic return action after pressing in constant pressure process.
Optional accessories: Photo-electric protection device, stroke, pressure, time digital display system, hydraulic system heating, cooling device. PLC programmable controller, blanking buffer device, mould heating and temperature control device, die change with floating guide and rolling bracket, etc.
|
Project |
Unit |
Types and specifications |
|
Nominal pressure |
KN |
630 |
1000 |
2000 |
3150 |
3150 |
4000 |
5000 |
5000 |
6300 |
8000 |
10000 |
|
Ejecting force |
KN |
100 |
200 |
400 |
800 |
2500 |
800 |
1000 |
1000 |
1000 |
1000 |
1250 |
|
Return force |
KN |
125 |
320 |
450 |
600 |
300 |
600 |
1000 |
1000 |
1000 |
1200 |
1250 |
|
Slide stroke |
mm |
500 |
600 |
700 |
800 |
1050 |
800 |
900 |
900 |
900 |
1000 |
1000 |
|
Ejection stroke |
mm |
160 |
200 |
250 |
300 |
500 |
300 |
355 |
355 |
355 |
350 |
350 |
|
Maximum opening height |
mm |
800 |
900 |
1120 |
1250 |
1500 |
1250 |
1500 |
1500 |
1500 |
1800 |
1800 |
|
Slide stroke speed |
Idle speed |
mm/s |
22 |
24 |
100 |
100 |
200 |
100 |
120 |
120 |
80 |
120 |
120 |
|
Operation |
9 |
10 |
12 |
12 |
28 |
12 |
12 |
12 |
10 |
10 |
10 |
|
Return speed |
50 |
50 |
50 |
60 |
150 |
30 |
80 |
80 |
50 |
100 |
100 |
|
Ejection stroke speed |
Ejection speed |
mm/s |
50 |
80 |
60 |
45 |
29 |
45 |
80 |
80 |
80 |
65 |
65 |
|
Return speed |
100 |
160 |
120 |
100 |
100 |
100 |
200 |
200 |
200 |
140 |
140 |
|
Working table size |
Left/Right |
mm |
520 |
720 |
900 |
1260 |
1600 |
1250 |
1400 |
2200 |
1600 |
2200 |
2500 |
|
Front/Back |
490 |
580 |
900 |
1200 |
1400 |
1250 |
1400 |
1400 |
1600 |
1600 |
1800 |
|
Stand column center distance |
Left/Right |
mm |
650 |
800 |
1140 |
1400 |
1800 |
1500 |
1700 |
2620 |
1950 |
2600 |
2900 |
|
Front/Back |
350 |
430 |
660 |
900 |
1150 |
1000 |
1120 |
1120 |
1200 |
1200 |
1350 |
Jinan Quanyue Computer Numerical Control Company specilized in designing, production, manufacturing, sales of CNC machinery. Facing the seamless ring parts forming and ring parts processing application needs, we provide automation forging press, D51 type vertical broaching machine, D52 type nc radial grinding ring machine, D53 type CNC diameter axial ring rolling machine, school circular machine, four column hydraulic press, forging hydraulic press, automatic servo walking beam system, three coordinate automation mechanical design and manufacturing.
Jinan Quanyue computer numerical control regards product quality as important as the life of the enterprise and sticks to "To do that is to be, the products such as personal character" values. The credibility is the first, customer is uppermost. We insist that only shape the image and perform the promise by heart so that retain the customer and at the same time we implement the product quality in strictly, We can accord to the needs of users and cooperate with them to design and manufacture all kinds of tooling and non-standard equipment and provide related equipment and accessories for maintenance service. We will be willing with the people who are in the industry together to greatness and warmly welcome the friends of various circles which both at home and abroad to visit our company. Expecting to be your one of your most trustable supplier in China!
