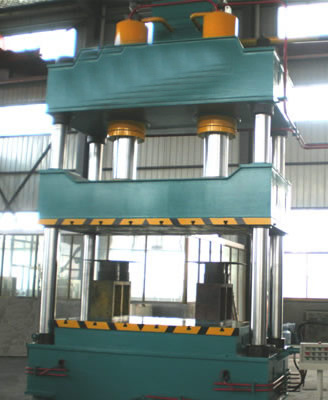

Four Columns Hydraulic Press Machine (YHD)

Name: Four Columns Hydraulic Press Machine (YHD)
Brand: china-castingforging.com
SKU: 682056955
Availability: InStock
Rating: 4.6 (147 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Nantong Yutung Industrial Co., Ltd.

Showroom Product Company Profile

Prod Model:	YHD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

This serial liquid press is suitable for various plastic mater pressing processes, such as forming, sheet metal drawing and etc. Lt can also be used for straightening, press in, and plastic moulding.

Feature and Characteristics:

This serial liquid press has two kinds of electric apparatus control system whth PLC, have three operation mods: Adjust, manual and semiaut-omatic, with pressure hold and time delay functions. While pressing shaping definitely, while protecting and mangling after suppressing and automatic backward stroke movements. Adjustable stroke and pressure in the specifed scope.

Numbers	Parameter		Unit	Model
Numbers	Parameter		Unit	YHD32-40	YHD32-63	YHD32-100	YHD32-160	YHD32-16
1	Rated force		KN	400	630	1000	1600	1600
2	Knock-out force		KN	120	190	190	400	400
3	Max.pressure		Mpa	25	25	25	25	25
4	Ram stroke		mm	450	500	600	700	700
5	Knock-out stroke		mm	150	200	200	200	200
6	Max. day light		mm	700	750	880	900	1000
7	Ram speed	Approaching	mm/s	20	20	22	100	100
		Working	mm/s	14	14	14	12	12
		Returning	mm/s	45	120	47	70	70
8	Effective working table size	L-R	mm	500	580	720	680	1000
8		F-B	mm	460	500	580	620	800
9	Overall	L-R	mm	2000	2400	2500	2700	2800
	Overall	F-B		1300	1400	1500	1700	1700
		Height a		2600	3100	2950	3400	3400
10	Motor power		KW	5.5	7.5	7.5	7.5	7.5

Numbers	Parameter		Unit	Model
Numbers	Parameter		Unit	YHD32-200	YHD32-315	YHD32-400	YHD32-500	YHD32-50	YHD32-630
1	Rated force		KN	2000	3150	4000	5000	5000	6300
2	Knock-out force		KN	400	630	630	1000	1000	1000
3	Max.pressure		Mpa	25	25	25	25	25	25
4	Ram stroke		mm	700	800	800	900	900	900
5	Knock-out stroke		mm	250	300	300	350	350	350
6	Max. day light		mm	1100	1250	1250	1500	1500	1500
7	Ram speed	Approaching	mm/s	100	100	100	100	100	80
		Working	mm/s	8	6-8	5-7	5	6	10
		Returning	mm/s	52	60	45	70	70	60
8	Effective working table size	L-R	mm	1000	1260	1240	1400	2400	1500
8		F-B	mm	900	1200	1200	1400	1400	1500
9	Overall	L-R	mm	3100	3235	3235	4060	6500	4200
	Overall	F-B		1800	2060	2200	3520	3800	4200
		Height a		3500	4295	4500	4995	4740	5600

Numbers	Parameter		Unit	Model
Numbers	Parameter		Unit	YHD32-800	YHD32-10	YHD32-12	YHD32-16	YHD32-2000
1	Rated force		KN	8000	10000	12500	16000	20000
2	Knock-out force		KN	1600	2000	2000	2000	3200
3	Max.pressure		Mpa	25	25	25	25	26
4	Ram stroke		mm	900	900	900	900	1300
5	Knock-out stroke		mm	350	400	400	400	500
6	Max. day light		mm	1500	1600	1600	1600	1800
7	Ram speed	Approaching	mm/s	80	80	80	80	110
		Working	mm/s	8	10	6-10	6-10	4-9
		Returning	mm/s	70	60	50	40	70
8	Effective working table size	L-R	mm	1500	1580	1700	2000	3200
8		F-B	mm	1400	1600	1600	1600	2200
9	Overall	L-R	mm	4800	5250	5250	5800	4500
	Overall	F-B		4000	3800	3800	4000	3200
		Height a		6000	6800	7000	6200	7200
10	Motor power		KW	60	60	74	74	3*37

As a leading manufacturer and exporter in China, Yutung Industrial Limited owns and also cooperates with many high quality factories. Our business has expanded to the lines of marine equipment, metal working machinery, all kind of machine parts process, bulk handling equipment, rubber processing machinery and other industrial products.

Our factory manufacturing and supplying all most all kinds of marine fenders in China, which has exported to USA, Australia, Greece, Singapore, Germany, Iraq, Saudi Arab, Russia and the Philippians for many years. All the products are tested before delivery according to relevant International Standard or as per customers' requirements. Some of our products get ABS, BV, CCS, DNV, GL, KR, LR, NK, RINA and CR certifications. Besides the international standard products, we can also design new moulds for the new products as per your drawings or requirements.

Another part of Yutung Industrial focuses on the researching, manufacturing and service in metal working machinery and all kinds of metal parts, rubber processing machinery and the bulk handling equipment and system for many years.

Our metal working machinery factory was founded in the early 1970's which specializes in shearing, bending and rolling machine. Our main product is Q11Z, QC12Y, QC12K, QC11Y, QC11K series shearing machine, WC67Y, WC67K series bending machine, W11, W11S series rolling machine, YQ series hydraulic shear and large type metallurgical equipment, our product honor a good market both at home and abroad. The export volume exceed 20million US dollar and take the top place of mechanical industries in Nantong, even in China.
Our factory owns advanced CNC machining center, lathing, planning, milling, boring, grinding, etc such media and large equipments more than 200sets, including the value over one million US Dollar CNC equipments 30sets. We have a twenty thousand sqm heavy processing and assembling workshop, the max. hoisting height 25m, max. hoisting capacity 20tons, the processing ability is in the head of the same line in China.

Our rubber machinery factory is a research and development manufacturing enterprise with more than twenty years manufacturing experience, honor 24 national patents. Our factory specializes in manufacturing various specification vulcanizing machine and PTFE press from 15ton to 5000ton, has the manual, semi automatic and full automatic types. Our open mixing machine is from 6ton to 2000ton.
Electric heating, oil heating, steam heating and water cooling can be designed and manufactured in accordance with the requirement of users.

Our bulk handling equipment covers engineering plastic, rubber and metal products. The factory owns the most wide range products in this line in China. The products has HDPE elevator bucket, steel elevator bucket, fang bolt equipped, elevator belt, belt clamp, impact, conveyor idler, coveyor chain, conveyor flight, conveyor sproket, rubber ball and all kinds of engineering plastic sheet, rod etc. Many kinds of specification could customize as per our clients' demands.

Yutung Industry Implements modern management concepts and models, establishes a client-oriented inormation management system, to maximize the fluency of internal and external information flow, enhance logistic and captial flow operation, so as to guarantee the high-quality product and services to customers.

Focus and Beyond, we will always do what we said.
