Product Description
BOGIE
A Bogie as well as called Truck American is a chassis or framework carrying wheels, attached to a vehicle, thus serving as a modular subassembly of wheels and axles.
n Bogies serve a number of purposes:
l Support of the rail vehicle body.
l Stability on both straight and curved track.
l Ensuring ride comfort by absorbing vibration and minimizing the impact of centrifugal forces when the train runs on curves at high speed.
l Minimizing generation of track irregularities and rail abrasion
n Key components of a bogie include:
l The bogie frame: This can be of inside frame type where the main frame and bearings are between the wheels, or (more commonly) of outside frame type where the main frame and bearings are outside the wheels.
l Suspension to absorb shocks between the bogie frame and the rail vehicle body: Common types are coil springs, or rubber airbags.
l At least one wheelset, composed of an axle with bearings and a wheel at each end
l Axle box suspensions absorb shocks between the axle bearings and the bogie frame. The axle box suspension usually consists of a spring between the bogie frame and axle bearings to permit up-and-down movement, and sliders to prevent lateral movement. A more modern design uses solid rubber springs.
l Brake equipment: Two main types are used: brake shoes that are pressed against the tread of the wheel, and disc brakes and pads.
l In powered vehicles, some form of transmission, usually electrically powered traction motors or a hydraulically powered torque converter
n Tedrail Supply the most type of freight wagon bogies according to following features:
Bogie Type: Fabricate Type, Ride Control Type
Gauge:
ü Meter Gauge, 1000mm
ü Narrow Gauge, 1067mm
ü Standard Gauge 1435mm
ü Broad Gauge 1520mm, 1676mm
Wheel Diameter:
28" (711mm), 30" (762mm),33" (840mm),36" (920mm)
Wheel Type:
Casting wheel, Forging wheel, Tyred wheel
Summary:

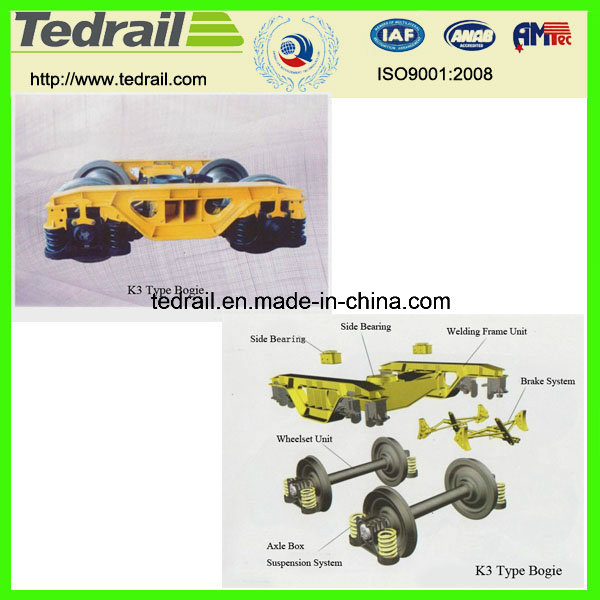

This bogie is suitable for various freight cars with standard gauge, 21t axle load and the maximum operating speed of 120km/h. It is integrated welding frame type bogie which is designed by absorbing the advantages of European Y25 bogie and combine domestic situation. It has features of large anti-lozenge rigidity, light unsprung mass, higher critical speed and low wheel-rail dynamic interaction. The bogie is comprised of welded frame, journal spring suspension, wheelset, bearing, constant contact side bearing and brake rigging, etc.
| RTSTD K3 |
| Axle Load | Tare Weight | Max Speed | Bogie Rigid Wheel Base | Diameter of Bogie Center Plate | Side Bearing Center
Distance | Height Center Plate Rail
Surface |
| 21T | 4.2T | 120km/h | 1956mm | 355mm | 1520mm | 685mm |
