| Prod Model: |
YD-0354 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Height: |
About 1.5m |
Product Description
1. PLC computer control
2. No noise, no shake
3. Hydraulic system
4. Easy operation
5. Passed CE certification
6. Passed AAA certification
Construction:
The pinch roll can adjust along. There are two adjusting point at the front and the end. It can form A certain banked angle to improve the leveling quality. The guide vertical roll can moves centered Or moves at the same time. It is adjusted by hand wheel, so it is convenient to centered.
We can also design C purlin roll forming machines according to your specific profile drawing.
Wuxi Yuanding Science & Technology Co., Ltd.
Tel: +86-024-8621-3062
Contact me to get more information
Welcome to contact and visit us, waiting for your cooperation sincerely.
|

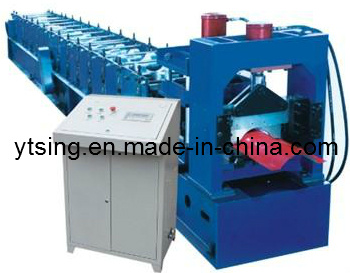

Ridge Cap Roll Forming Machine |
|
Specification |
|
|
Number of Stations |
12 sets |
|
Thickness |
0.3-0.7mm |
|
Main Power |
5.5KW |
|
Shipment Packing |
one 40FT container |
|
Forming Speed |
12-15mtr./min(Not include shear) |
|
Machine Frame |
H-BEAM Frame |
|
Technical Data |
|
|
Productivity |
Ridge cap as the drawing |
|
Man Power Required |
One operator with one assinstant |
|
Set Up time |
15 mins |
|
Working Hours per Day |
8 to 16 |
|
Line Direction |
Left to Right While Facing Operator Panel |
|
Overall Machine Length Required |
12.6m |
|
Approximate Machine Height |
1.5M |
|
Complete Line Consist Of(working process) |
|
Passive decoiler |
|
Infeeding applicator |
|
Roll forming machine unit |
|
Hydraulic shear |
|
Output table |
Wuxi Yuanding Science and Technology Co., Ltd. is located in national health city, ecosystem cityscience and technology advanced city and unique inland river harbor type wuxi city who protects the tax area, the south side economy development in pond city area. It produce YX series roll forming machine for roof and wall panels, colored steel tile forming machine, YX series guard rall forming machine, C&Z shaped purline forming machines and metal deck forming machine. These use new generation shaping machine, applies advanced microcomputer and PLC technology as well as intelligent touch screen operation and control system. These function largely improved working efficiency and the integrated performance. Welcome to our company.
