Casting & Forging Manufacturers and Factories

Home Casting & Forging Products G213, S213 Round Pin 1/2" Anchor Lifting Rigging Shackle for Connection

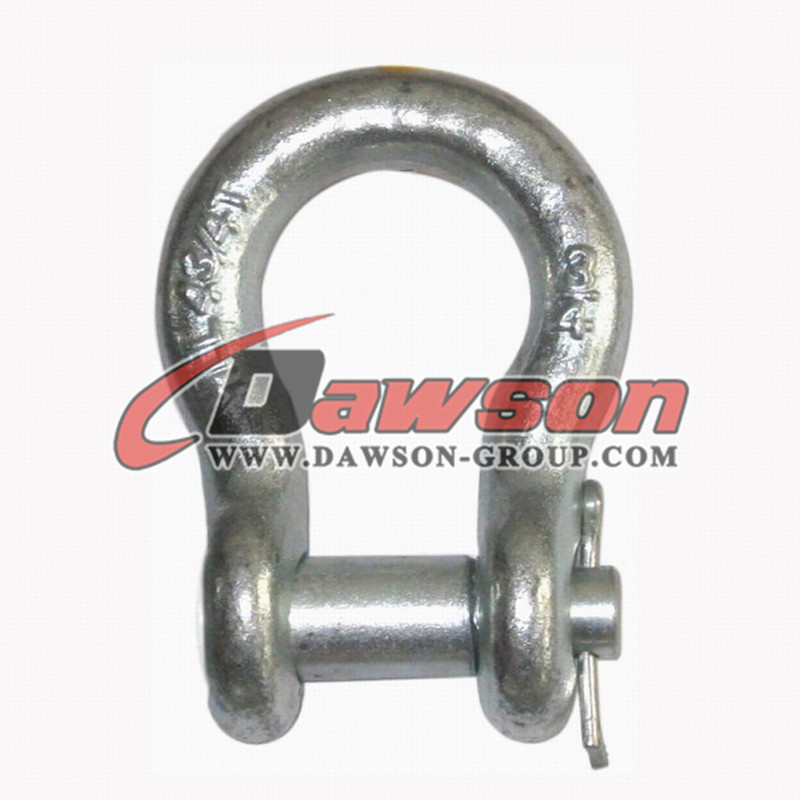

G213, S213 Round Pin 1/2" Anchor Lifting Rigging Shackle for Connection

G213, S213 Round Pin 1/2
Price: US $ 0.1-1/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 500/Piece
Pay Type: L/C,T/T,D/P
Prod Model: DS
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 1/4"-4"
Wll: 0.3t~150t
Bl: Usually 4 to 6 Times of Wll
Surface Treatment: Polished, Galvanized, Self-Colored
Us/ European/ Japan Type Shackle: Carbon Steel Shackle
Material: Alloy Steel, Carbon Steel
Color: Multi Color

Product Description

Iterm: Round Pin Anchor Shackle, G-213, S-213, Drop Forged Alloy Steel - China Manufacturer, Supplier

Round pin anchor shackles meet the performance requirements of Fedral Specification RR-C-271D Type IVA, Grade A, Class 1, except for those provisions required of the contractor.

Galvanized or hot-dipped galvanized or self-colored.
The S. W. L. Is 4: 1 or 6: 1.
Made by Forging, Free forging.

Dawson Group supply Shackles, bow shackle, anchor shackle, trawling shackle, lifting shackle, high tensile shackle, alloy shackle, stainless shackles, chain shackle, drop forged European type, ect.

Rigging Hardware
Screw Pin Anchor Shackle G-209
Round Pin Shackle G-213
Screw Pin Chain Shackle G-210
Round PIn Chain Shackle G-215
Bolt Type Anchor Shackle G-2130
Bolt Type Chain Shackle G-2150
Alloy Steel Anchor Shackle A-209
Trawling Shackle
Trawling Shackle With Round Head Screw Pin
EU Type Large Dee Shackle Same Size Diameter Pin With Body
EU Type Large Bow Shackle Same Size Diameter Pin With Body
Trawling Shackle With Square Head Screw Pin
ITEM NONominal SizeWorking Load LimitDimensions (mm)Weight Each
(in.)(tons)ABCDEFGHI(kg)
BAS06323/161/39.656.3522.44.8515.214.237.224.94.850.03
BAS08321/41/211.97.8528.76.3519.815.546.732.56.350.05
BAS10325/163/413.59.6531.07.8521.319.153.037.37.850.10
BAS12323/8116.811.236.69.6526.223.163.045.29.650.15
BAS14327/161-1/219.112.742.911.229.526.974.051.511.20.22
BAS16321/2220.616.047.812.733.330.283.558.512.70.36
BAS20325/83-1/426.919.160.516.042.938.110674.517.50.76
BAS24323/44-3/431.822.471.519.151.046.012689.020.61.23
BAS28327/86-1/236.625.484.022.458.053.014810224.61.79
BAS323218-1/242.928.795.525.468.560.516711926.92.57
BAS36321-1/89-1/246.031.810828.774.068.519013131.83.75
BAS40321-1/41251.535.111931.882.576.021014635.15.31
BAS44321-3/813-1/257.038.113335.192.084.023316238.17.18
BAS48321-1/21760.541.414638.198.592.025417541.19.43
BAS56321-3/42573.051.017844.512710631322557.015.4
BAS643223582.557.019751.014612234825361.023.7
BAS80322-1/25544.610570.026766.518414545332744.61
BAS963238512782.533076.020016554636592.070
BAS112323-1/212013395.537292.0229203626419105120
BAS128324150140108368104254229653468116153
&FAQ

Do you do the retailing?
    Sorry,we are no doing retailing ,we are supplying our quality products and competitive price to our distributors.
Can I expect a quality product?
    Yes. All our activities are accredited to ISO 9001 and based on delivering the highest quality possible, both in products and services, ensuring long-term benefits and optimum performance. Also we got the below certification: CE GS SUV, LR ABS ( anchors and anchor chains) Our rigging hardware is manufactured under exceptional quantity control and strictly adhered to the US, DIN, JIS, BS and AS standards.
About sample:
    Cost with free If the quantity small, and the express charge account into buyer's, after receiving the official order, the seller deducts it in first order's
About payment: value.
    T/T in U.S. Dollars or EUR
Who we are?
    We are working team, factories, sales, inspector, QA, QC, purchaser, service ...
What we can supply?
    Rigging, marine, lifting, lashing, sling, mining, fishing, trucking, transporting, safety concerned products, and full set of rigging accessories, including trade service in the fields. Such for: material handling, load restraint, cargo control, Anchor shackles, chain shackles, wire rope products, chain products, lifting components, chain slings, webbing slings ,round slings, and cargo tie down, ratchet straps, hooks,...
How to order the products?
    Send the inquiry with detail item description or with ITEM number.
    Tell us the quantity you need, the size of goods, and the packing.
    If there is no packing demand we take it as sea-way packing.
    If possible please attach one reference picture to avoid any misunderstanding.

&Company information

    Dawson Group Ltd.10year experience,Honest service and Competitive price we can provide.
    Dawson, an ISO9001 certified firm, is specialized in the field of lifting & hoisting equipment, webbing and round sling, ratchet tie down and lashing equipment, chain and chain sling, wire rope and wire rope sling, material handling, rigging hardware and other products.
    We are located in Qingdao, China. All products are produced under strict standard of quality control. Constant research and development ensures that you are getting the latest products with the most advanced and cost effective technologies. Most of our products are comply with CE, TUV & GS  certification.
    We are confident that our products and service will satisfy with the highest of standards. From the beginning, Dawson is growing continually; stately and high-speed, now supplies a range of industrial products that cover lifting, lashing, sling, rigging, marine, mining, towing, transportation, construction, fishing and security application.
    Our value is Brave challenger, never give up.
    Our spirit is Make it perfectly.
    Our goal is International, Technological, and Professional.

&Contact me

    DAWSON GROUP LTD.------Tarnie
    Tel:86-532-86660582-8012
    Fax:86-532-86660583
    Skype:tarnie80
    Website:www.dawson-group.com
Qingdao Dawson Industries Ltd. Is Dawson Group's ubsidiary company.

Dawson an ISO 9001 certified firm. Specializes in the field of Lifting & hoisting equipment, Webbing and round sling, Ratchet Tie Down and lashing equipment, Chain & chain sling, Wire rope and wire rope sling, Material handling, Rigging hardware & other products. We are located in Qingdao, China. All products are produced under strict standard of quality control, and constant research and development ensures that you are getting the latest products produced with the most advanced and cost effective technologies. Most of our products are CE, TUV & GS certified. We are confident that our products and service will satisfy the highest of standards. From the beginning, Dawson is growing continually, stablely and high-speed.

Our products include: Lever block, push trolley & geared trolley, I beam clamp, lifting clamp, snatch block, webbing sling, endless type webbing sling, round sling, cloverleaf slings, slings bags, grade 80 chain and chain sling, chain fittings, ratchet tie down, ratchet straps, cargo lashing, ratchets, ratchet type load binder, lever load binder, hand winch, hand puller, winch strap, tow straps, logistic strap, winches, rigging hardware, marine hardware, anchors, anchor chains, turnbuckles, shackles, stainless steel rigging, etc.

Dawson, now supplies a range of industrial products that covers lifting, lashing, sling, rigging, marine, mining, towing, transportation, construction, fishing and security applications.

The unique feature of Dawson is youthful manager and technological abilities. They supervise the quality according with international standard; Dawson thinks much of the demands of our customers, putting the customers' benefits on the first place, pursuing excellent sources of products results in competitive prices in world markets; Standardization, high efficiency operating procedure insures that accuracy and speed shipment to all over the world. We are glad to make good trade companionship with you on a mutuality beneficial basis and serve you heart and soul including OEM products.

If you are interested in our products or have any questions, please do not hesitate to contact us. We promise any inquiries from you will receive our most careful and immediate attention, thank you.

Our value is Brave challenger, never give up
Our spirit is Make it perfectly
Our goal is International, Technological, Professional
