| Prod Model: |
046 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Customized |
| Color: |
Different According to Surface Finish |
| Sample Fee: |
Refundable |
| Sample Time: |
7days |
| Delivery: |
Door to Door Provided |
| Processing Object: |
Metal |
| Molding Style: |
Forging |
Product Description

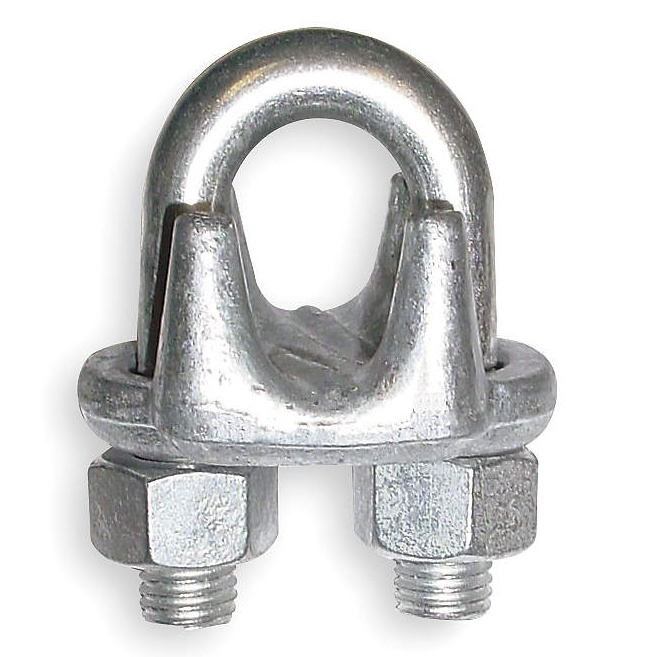

Galvanized finish U Bolt Type Forged Steel Wire Rope Metal Clips
Material:carbon Steel
Surface:Hot dipped galvanized, electro-galvanized
Treatment:Cast and Forged
Size:1/4 to 1
Standard:US Type
|
Clips in | Size mm | A | B | C | D | F | E | Weight/kg per 100 pcs |
| 1/4 | 6-7 | 8 | 26 | 13 | 19 | 30 | 36 | 8 |
| 5/16 | 8 | 9.5 | 35 | 19 | 22 | 33 | 43 | 14 |
| 3/8 | 9-10 | 11 | 38 | 19 | 25 | 41 | 49 | 19 |
| 7/16 | 11-12 | 12.7 | 47 | 25 | 30 | 46 | 58 | 32
|
ItemWire Rope Clip
Clip TypeU-Bolt
MaterialForged Steel
Wire Rope Dia.3/8"
Min. Number of Clips2
Rope Turn Back6-1/2"
Min. Torque45 ft.-lb.
FinishGalvanized
StandardsFF-C-450 Type 1, Class 1
why us
1. 1rst Class OEM/ODM Service
2. 1 stop solution (Door to Door service, you may need to pay import duty and VAT tax)
3. Fast response within 1 work day
4. Strict quality control for materials, production and finished products
5. Return and refund policy for products with defects or other quality problems
6. Small & trial order is acceptable and welcomed.
7. Urgent order according to customer requested delivery time
Rizhao City Hetai Automobile Fittings Factory was established in March 2007, which is located in Wulian County Industrial Zone, and covers an area of 5000 square meters. There are 53 employees and 5 senior technicians. The fixed asset is over 3 million RMB yuan. Our main productions are as follows,
Forged steel and casting iron parts -- Flange, pipe clamp, scaffolding fittings, auto steel parts, hand tools, etc.
Cold bending/stamping/welding parts -- Solar panel bracket, wall mounting bracket, roadway signage bracket, road post, U shape bracket, angle bracket, steel hinge, etc.
Auto Parts --Auto air compressor, gear pump, water pump, spring, brake valves, safety valves and other metallic auto parts.
Fitness Equipment -- Kettlebell, dumbbell, barbell, and other fitness equipments.
We supply our products to many famous automobile factories and exporting companies in China, and we also do OEM business with foreign customers all over the world.
Our factory has full sets of modern high-precision production and testing equipment, Such as numerical control (CNC) machine, stamping machine, shearing machine, welding machine, plastic spraying oven, crankshaft producing machine, honing machine, multi-drill, drilling and milling machine, automatic washing machine, air-tight detector, Multi function air compressor testing machine, metallographic analyzer, deflection instrument, hardness tester, etc. We have passed the GB/T19001-2008/ISO9001: 2008 certification, and we have a number of domestic inspection certificates.
Concept innovation, Product innovation and Integrity service, all of them is our tenet for ever. With high-quality products, competitive price and wholehearted after-sale services, we will hospitably cooperate with all our customers to create a bright future.
