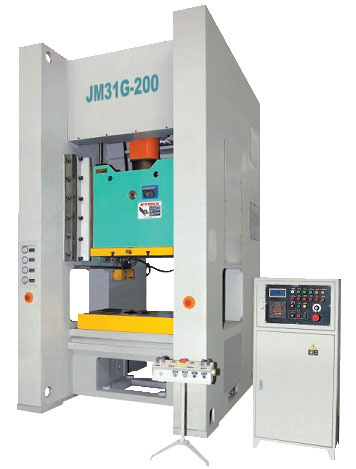

Gantry Type High-Speed & High-Precision Press
| Price: |
Negotiable |
| Min Order: |
1 |
Product Description
Welded Steel plate framework with high intensity of machine body.
The middle crankshaft adopts special rolling bearing, and the precision roller bearing is adopted for front and rear side.
Combined pneumatic friction clutch and brake.
Equipped with hydraulic overload protecting device.
Eight-side precision needle roller guide rail.
Pitman screw locked up with oil pressure.
Electric shut height adjustment with digital display.
Equipped with lifting balance cylinder device.
Duplex valves imported from Japan.
Control by PLC with international brand.
Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are imported from international brand.
Electronic cam device with intelligent top dead center stop function and several safety function.
Optional air cushion device, NC feeding machine, light curtain and inverter with international brand to fulfill stroke adjustment
Press Specifications
|
|
JM31G-125 |
JM31G-160 |
JM31G-200 |
JM31G-250 |
|
Nominal force |
KN |
1250 |
1600 |
2000 |
2500 |
|
Stroke under nominal force |
Mm |
3 |
3 |
3 |
31 |
|
Slide block stroke |
Mm |
30 |
30 |
30 |
30 |
|
Number of stroke |
min |
160-240 |
130-170 |
120-160 |
120-150 |
|
Max die set heigh |
Mm |
400 |
400 |
450 |
500 |
|
Die set heigth adjustment |
Mm |
50 |
50 |
50 |
50 |
|
Worktable dimensions(F·B×L·R) |
Mm |
600
1100
80 |
740
1300
180 |
760
1350
200 |
800
1400
200 |
|
Hole dimensions in bed(F·B×L·R) |
Mm |
150
600 |
200
700 |
200
750 |
200
800 |
|
Dimensions of slide block bottom surface(F·B×L·R) |
Mm |
580
1000 |
680
1200 |
680
1250 |
700
1300 |
|
Size of the handle hole (Diameter×Depth) |
Mm |
φ60
80 |
φ65
90 |
φ65
90 |
φ70
90 |
|
Distance between columns of body |
Mm |
1200 |
1380 |
1450 |
1500 |
|
Mian motor capacity |
Kw |
18.5 |
22 |
30 |
37 |
|
Net weigth |
Kg |
about17000 |
About22000 |
About26000 |
About33000 |
