| Prod Model: |
JM31 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Gantry Type: |
with High Performance |
| Model: |
Jm31 |
| Color: |
White and Green |
| Size: |
2480 4750 3500 |
| Weight: |
20000 |
| Forging Forming Method: |
Mold Forging |
Product Description

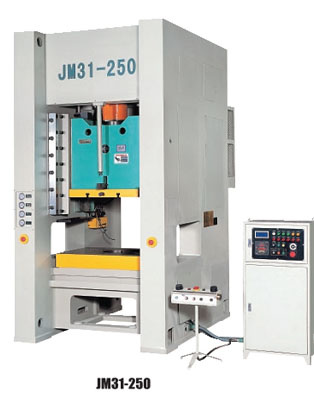

JM31 series gantry type single point press with high performance
1. Entire steel welded column type frame with high intensity;
2. Dry friction clutch with high performance and big torque JM31-160~400: Optional wet clutch;
3. Hydraulic overload protector;
4. Electrical die height adjustment with digital display;
5. Lifting balance cylinder;
6. Imported dual solenoid valve;
7. Electrical forcd grease lubrication system;
8. Balance cylinder: Manual lubrication;
9. PLC of international brand;
10.1 set ejector'
11. Button, AC contator, air circuit breaker of international brand. \
12. Integrated interface( elctrical cam included. )
13. Optional: Air cushion, NC feeder device, ligjt curtain, motor with inverter;
14. JMD31 series presses equpped with multi-link for light drawing.
| MODEL//CODE NO. | JM31-160
JMD31-160 //31001 | JM31-200
JMD31-200 //31002 | JM31-250
JMD31-250 //31003 | JM31-315
JMD31315 //31004 | JM31-400 //31005 | JM31-500 //31006 |
| Nominal force | kN | 1600 | 2000 | 2500 | 3150 | 4000 | 5000 |
| Stroke under nominal force | mm | 6 | 6 | 8 | 8 | 10 | 10 |
| slide block stroke | mm | 160 | 180 | 200 | 200 | 200 | 100 |
| Number of stroke | Fixed | min-1 | 40 | 35 | 30 | 30 | 25 | 20 |
| Variable | 35~50 | 30~40 | 25~35 | 25~35 | 0~30 |
|
| Max die set height | mm | 350 | 450 | 500 | 550 | 600 | 650 |
| Die set height adjustment | mm | 110 | 110 | 120 | 120 | 120 | 120 |
| Worktable dimensions | mm | 740
1050 | 760
1130 | 800
1200 | 850
1250 | 900
1350 | 1000
1500 |
| Thickness of bolster | mm | 150 | 160 | 170 | 170 | 180 | 190 |
| Dimensions of slide block bottom surface | mm | 650
800 | 650
850 | 700
900 | 750
950 | 800
1050 | 900
1200 |
| Size of the handle hole | mm | φ65
90 | φ65
90 | φ70
90 | φ70
90 | φ80
90 | φ80
90 |
| Distance between columans | mm | 1150 | 1200 | 1320 | 1370 | 1550 | 1700 |
| Slide hole size | mm | 760
300 | 800
370 | 820
430 | 880
480 | 920
520 | 1020
600 |
| Distance between worktable and ground | mm | 1030 | 1030 | 1050 | 1050 | 1050 | 1060 |
| Main motor power | KW | 15 | 18.5 | 22 | 30 | 37 | 45 |
| Cushion (option) | number |
| 1 | 1 | 1 | 1 | 1 | 1 |
| Ejection force | KN | 160 | 160 | 250 | 250 | 250 | 250 |
| stroke | mm | 80 | 80 | 80 | 80 | 80 | 80 |
| Area | mm | φ350 | φ350 | 340
540 | 400
540 | 400
540 | 400
540 |
| Outline dimension | mm | 2480
4750
3500 | 2570
1810
3610 | 2950
2080
3850 | 3150
2200
4000 | 3430
2400
4210 | 3670
2580
4600 |
| Net weight | Kg | 20000 | 24000 | 31000 | 36000 | 42000 | 52000 |
