| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Yqj-11 |
| Gas Service: |
Oxygen/Carbon Dioxde |
| Inlet Connection: |
G3/4 |
| Outlet Connection: |
G3/4 |
| Inlet Pressure (Mpa): |
15 |
| Outlet Pressure(Mpa): |
0.01~1.6 |
| Outlet Flowmeter(M3/H): |
100 |
| Automation: |
Automatic |
| Type For Cutting Machine: |
CNC Cutting Machine |
| Type For Fold-bending Machine: |
CNC Fold-bend Machine |
| Application: |
Machinery & Hardware |
Product Description

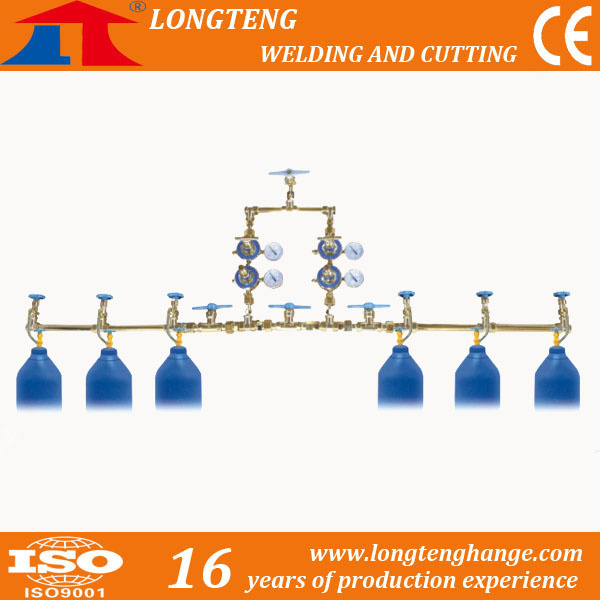

Gas regulator for gas cylinder manifolder, cnc gas regulating device
1)Quick Detail:
1. Single stage high pressure gas regulator
2. Use for gas supply control of CNC cutting machine
3. Material: Brass
2)Structural Features:
1. Single stage pressure reducing structure
2. Use the high quality forging brass for upper cover and its body structure
3. With the sintered bronze filter screen at the inlet gas pipe.
4. For the lining in side of the upper cover, use the high quality stainless steel to make much smoother for pressure reducing.
3)Applications:
Gas regulator is a adjusted device which can reduce the high pressure gas to low pressure gas, can maintain the pressure.
1. A big-flow gas distributing system.
2. Designed for the pressure regulating system of the cylinder centralized gas supply device.
3. A high- precision pressure regulating device.
4. The input pressure is no more than 15Mpa and the output pressure is between 0.01 and 1.6Mpa.
5. When both the output pressure and the output flow change, it can stabilize the output pressure and work continuously for a long time.
6. It uses brass strainer inside, which can effectively filter gas impurities. The strainer is easy to be replaced.
4)Specifications:
Model Number
|
LT-YQJ-11-2
|
Brand Name
|
Longteng,OEM
|
Place of Origin
|
Wuxi, China (Mainland)
|
Certification
|
CE,ISO
|
Loading Port
|
FOB Shanghai
|
Type
|
Double stage
|
Outlet pressure
|
0.01-1.6(Mpa)
|
Input Pressure
|
0-15(Mpa)
|
Rated Flow
|
100(m3/h)
|
Fluid available
|
Oxygen
|
Material
|
Brass
|
Using temperature range
|
-20-50 centigrade
|
Founded in 1996, LONGTENG (Wuxi Longteng Welding and Cutting Equipment Co., Ltd. & Xuyi Longteng Welding and Cutting Technology Co., Ltd. ) is the professional group which specializes in producing centralized gas supply systems, flame cutting equipments, cutting instruments as well as welding auxiliary equipments.
The company owns the professional team for technology research and development, the superior manufacturing equipments and the excellent sales force. Under the guarantee of the Quality Management System (ISO9001), the Environmental Management System (ISO14001) and the Special Equipment Manufacturing License (Pressure Pipe) of the People's Republic of China, the enterprise ensures the overall control of the product's quality, using safety andother aspects, which makes the products sell well at home and abroad, obtain numerous of clients' approvals and faith, dominate the market and let the market share increased year by year. With the exquisite products and the refined service, longteng company takes "improvement, completion, perfection"as the philosophy to provide the most efficient, safesty and the most sincere service to the clients.
The most devoted make the most professional, we are professional as we are exclusive.
