| Prod Model: |
BL, PL, SO, WN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/2"-14' |
| Material: |
Stainless Steel |
| Surface Preparation: |
Polishing |
| Casting Method: |
Directional Crystallization |
Product Description
Ball Valve Nominal Pressure: PN64(1000PSI)
Ball Valve Working Temperature: -10~150
Ball Valve Application: W. O. G
Thread Standard for Ball Valve: BSP. BSPT. NPT. DIN2999
Ball Valve Sealing Material: PTFE
Ball Valve Material: Stainless steel SUS304/316. CF8/CF8M. CF3M. WCB
Valve type: Floating Ball Valve.
Valve Dimension: 1/4"-4"
Valve body: Stainless Steel 304/316, CF8/CF8M.
Nominal pressure: PN64(1000psi )
Working temperature: -10 degrees centigrade to 150 degrees centigrade
Application: Water/oil/gas
Valve end type: THREAD(NPT/BSP/BSPT/DIN2999), socket welding, butt welding
Avaliable in carbon steel material.
100% hydraulic pressure testing.
Valve design standard: API ANSI, DIN, JIS
if not factory ,what we are.
We can not only provide products,but also provide technical support.
Welcome to ？visit our factory at anytime.
Our main products are flange and valve.We also supply fasteners such as bolt, nut, gasket and stud, valve fittings, pump parts.？OEM service is ok.
We can produce full range of flange and valve standard or non standard.
We have 20 years of experience in valve and have a good reputation in this field. Our products have won praise from customers worldwide.？
Quality and Safety:
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment.？
Your Success, Our Glory:
Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us.
？
？
If you have any requirement, contact with me soon.
|
1PC Ball Valve/Female Thread |
|
G |
1/4" |
3/8" |
1/2" |
3/4" |
1" |
1 1/4" |
1 1/2" |
2 " |
|
DN |
8 |
10 |
15 |
20 |
25 |
32 |
40 |
50 |
|
D |
4.6 |
6.8 |
9 |
12.5 |
16 |
20 |
25 |
32 |
|
L |
39 |
44 |
56.5 |
59 |
71 |
78 |
83 |
100 |
|
W |
62 |
62 |
84 |
94 |
104 |
109 |
131 |
131 |
|
E |
10.0 |
10 |
13.5 |
14.5 |
17 |
19 |
19 |
23 |
|
H |
32 |
35 |
38 |
41 |
51 |
57 |
64 |
72 |
|
SW |
17 |
21 |
25 |
32 |
38 |
48 |
53 |
33 |
|
14 |
Handle Sleeve |
Plastic |
1 |
|
13 |
Lock Device |
304 |
1 |
|
12 |
Nuts |
304 |
1 |
|
11 |
Spring Washer |
304 |
1 |
|
10 |
Handle |
304 |
1 |
|
9 |
Washer |
304 |
1 |
|
8 |
Stem packing |
PTFE |
1 |
|
7 |
Washer |
PTFE |
1 |
|
6 |
Stem |
304 |
1 |
|
5 |
Pipe Plug |
CF8M |
1 |
|
4 |
Sealing Ring |
PTFE |
1 |
|
3 |
Ball |
316 |
1 |
|
2 |
Seat |
PTFE |
2 |
|
1 |
Body |
CF8M |
1 |
|
ITEM |
Part Name |
Material |
Qty |
Established in Qingdao, China in 1990, Qingdao Hengyong Valve Industrial has grown to become the Top manufacture of casted Stainless Steel Flanges and Stainless Steel Ball Valves in China. Now Hengyong Valve Industrial exported stainless steel flange and ball valve to 23 different countries.
Our Products Range include:

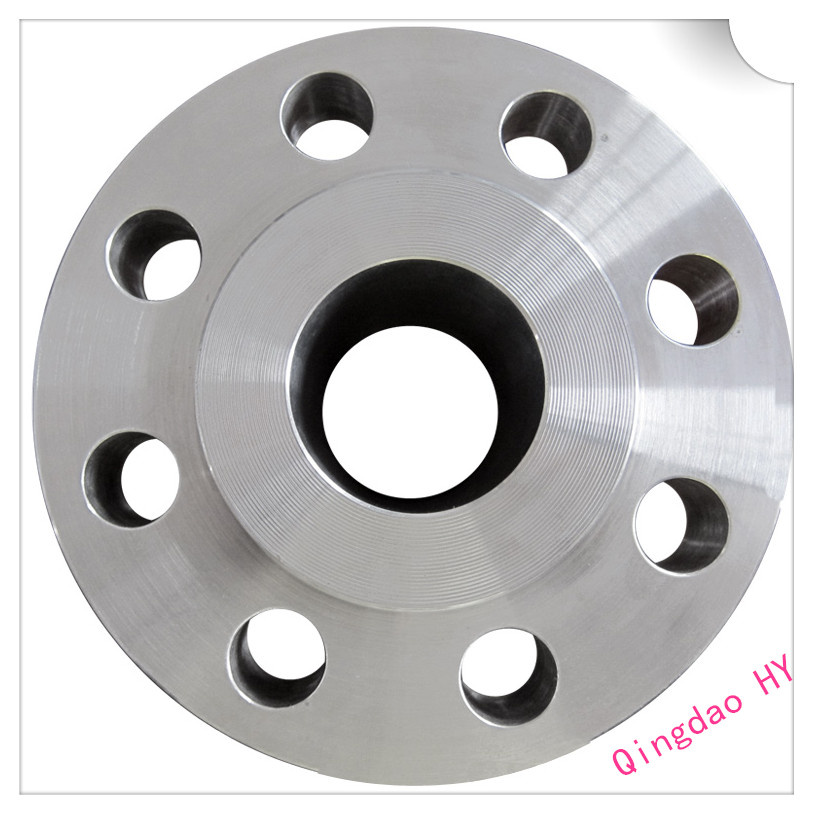

1. Stainless Steel Flanges: DIN/UNI/JIS/ASME/BS, Type include WN/BL/SO/PL/SW, size from 2" to 24".
2. Stainless Steel Valves: Manual or electric or pneumatic 1PC, 2PC, 3PC ball valves, globe valves, check valves, gate valves, Y strainers,
3. Stainless Steel Pipe Fittings: Quickly Coupling, Union, Camlocks and 150LBS fittings
4. Metal Castings from precision lost wax investment casting and Sand Casting process.
Our Production Capacity:
Flanges about 3000ton/annual, and Valves about 1000ton/annual.
In 2008, Qingdao Hengyong Valve Industrial was audited ISO9001-2008 Quality certification by TUV company.
For Further information pls contact.
