| Prod Model: |
SB720 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control System: |
PLC Control |
| Cutting System: |
Hydraulic Shearing System |
| Warranty: |
12 Monthes |
| Color: |
Can Paint as Your Requirement |
| Type: |
Building Machine |
Product Description

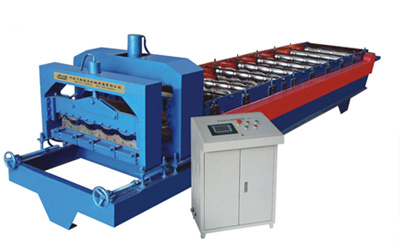

Glazed tile roll forming machine for SB80-360-720
Molding host Equipment production model SB28-207-828
Forming size 5500mm*1300mm*1500mm
Weight 3500 kg
Main frame 250 U-bar steel
Number of forming rollers 13rows
Forming axial material 45# steel quench
Out diameter of shaft 70mm
Shaft material 45# steel
Driving mode Sprocket chain transmission
Thickness of chain 25.4mm
Equipment total power: 6 kw
Forming speed 8-10m/min
Rolling thickness 0.3-0.8mm
Feeding width 1000mm
|
Computer control system |
PLC control electric models |
Taiwan Weida |
|
LCD |
5.7 inches LCD |
|
The working principle |
Automatic industrial computer PLC control system and accurate control the plate size, linking piece precision, rolling speed |
Hydraulic shearing
|
Shear die material |
Cr12 High temperature quenching process |
|
Hydraulic shear power |
3 KW |
|
Working principle |
The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.
Power of the oil pump: 4kw
Hydraulic oil: 40# |
