| Prod Model: |
20-150mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Hardness: |
HRC55-67 |
| Impact Toughness: |
>12j/Cm2 |
| Endurance Impact Test: |
>10000 |
| Certification: |
ISO9001:2008 |
| Original Place: |
China |
| Molding Style: |
Forging |
| Processing Object: |
Metal |
Product Description

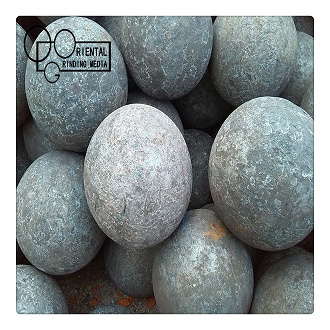

Forged Steel Grinding Balls
Specifications
1. Diameter: 20mm-150mm
2. Hardness: HRC55-67
3. Certificate: ISO9001: 2008
4. Breakage rate: < 1%
5. Impact tes: > 12J/CM2
6. Endurance test times> 10000
Chemical Elements:
Name C Si Mn P S Cr
60Mn 0.57-0.65 0.17-0.37 0.7-1.0 0.035max 0.035max 0.25max
65Mn 0.62-0.70 0.17-0.37 0.9-1.2 ; 0.035max; 0.035max 0.25max
45# 0.42-0.50 0.17-0.37 0.5-0.8 - - 0.2max
42Cr 0.38-0.45 0.17-0.37 0.5-0.8 ≤ . 035 ≤ 0.035 09-1.2
Mechanical Properties
Spec. Impact Test
AK. J/CM2 Endurance Test Times
(5m) Dia 25mm-60mm Dia 70mm-100mm
Surface Core Surface Core
42Cr ≥ 12 ≥ 10000 ≥ 55 ≥ 48 ≥ 52 ≥ 45
50Mn ≥ 12 ≥ 10000 ≥ 56 ≥ 50 ≥ 55 ≥ 50
60MN ≥ 13 ≥ 12000 ≥ 58 ≥ 52 ≥ 58 ≥ 50
65MN ≥ 15 ≥ 12000 ≥ 62 ≥ 54 ≥ 58 ≥ 52
Specification and Hardness of Forged Grinding Ball
Product Speciality
High Hardness No Breakage Good Wear Resistance Even Wearing
Applied Field
Mines Cement Plants Power Station Chemical Industries
Packaging & Shipping
Packing
1000kg bags or steel drums(850-900KG)
