| Prod Model: |
st |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Hydraulic System Pressure MPa: |
12 |
| Air Comression MPa: |
0.6 |
| Type: |
Sintering Furnace |
Product Description

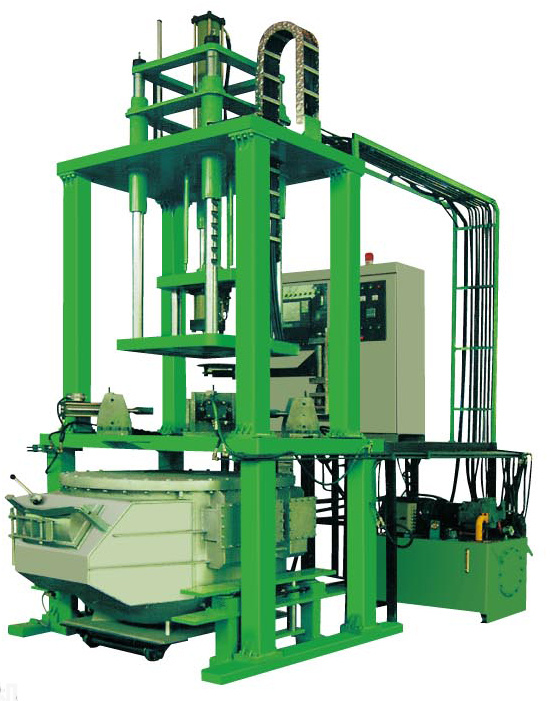

Low-Pressure Casting Machine
Low-pressure casting machine principles:
Holding Furnace is the necessary and sufficient to seala dry compressed air, Holding Furnace, the liquid metalunder pressure in the air, along the tube or liguid to the mold cavity, liguid metal type in the mold cacity(Underpressure)solidification, the castings are close.
| Technical Parameters TYPE | S451 | S452 | S455 | S458 |
| Holding Furnace Capacity (Kg) | 150 | 200 | 500 | 800 |
| Mould Diameter: (L*M*H) mm | 600*400*400 | 700*600*450 | 800*800*500 | 1000*1000*500 |
| Horizontal Mould Cylinder: Amout | 2/3 | 2/3/4 | 2/3/4 | 2/3/4 |
| Cylinder Diameter/Stem Diameter mm | 100/50 | 125/63 | 125/70 | 125/70 |
| Itinerary mm | 200 | 250 | 300 | 350 |
| Center Height(adjustable) mm | 110 | 130 | 150 | 160 |
| Molmerged Cylinder: Cylinder /Stem Diameter mm | 125/70 | 125/70 | 140/80 | 140/80 |
| Molmerged Cylinder: Itinerary mm | 500 | 600 | 800 | 1000 |
| Hydraulic System Pressure Mpa | 12 | 12 | 12 | 12 |
| Flow L/min | 63 | 63 | 63 | 80 |
| Air comression Mpa | 0.6 | 0.6 | 0.6 | 0.6 |
| Electric Quantuty Kw | 30 | 40 | 50 | 60 |
| Machine Weight T | ~6 | ~8 | ~10.5 | ~15 |
Shipping:
1,Shipping can delivery by sea,air,or express according to customer requirement
Payment:
1. Small order under 3000USD T/T100% in advance
2. 30% deposit and 70% before shipping or after received copy of B/L
3. L/C also acceptable
Warranty:
We provide 1 year warranty.
Related products:
We are a professional art production plan promotion company, our production line can be customized size according to the customer's workshop and provide worker training in assembly process, detection technology and so on , also provides products customized development and all of the parts of MCB.
RCBO,MCCB,production line,testing line.
About Wenzhou Seten International Trade Co., Ltd.Established in 1997, Wenzhou Seten International Trade Co., Ltd.Is a China-based professional supplier of casting machine to produce various casting spare parts with professional, dynamic and customer-oriented staff.Aimed on people, each individual makes a unique contribution to the business and you.The professionalism, skills and knowledge of our team throughout the business allow us to deliver you the product you need in higher quality at more reasonable price.
