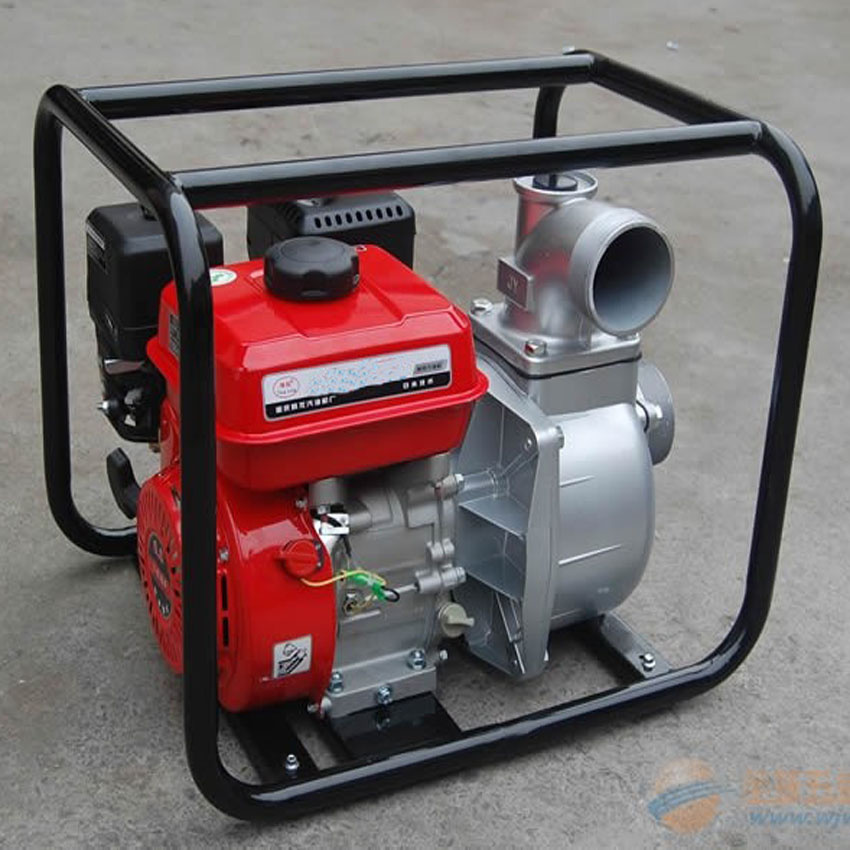

Gp80 Gasoline Water Pump
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
GP80 GP100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Single-stage Pump |
| Theory: |
Centrifugal Pump |
| Type: |
Positive-Displacement Pump |
| Application: |
Sewage Pump |
| Material: |
Cast Iron |
| Power: |
Gasoline |
Product Description
Aluminum alloy high pressure casting
Neat and economical for classical design
EPA, CARB, CE, EC-II noise and EMC standard
Big volume water discharge
Compact in structure and light in weight
High effective mechanical seal
Semi trash pump
Model GP80
Suction(mm) 80(3in)
Rated Capacity(m3; /h) 60
Discharge Port Dia(mm) 80
Self-Priming Time(s/4m) 120
Max. Head(m) 28
Max. Suction Head(m) 5
Dim( L x W x H )(mm) 517X415X452
Net weight/Gross weight(kg) 27/30
20ft container Qty 305
40ft container Qty 625
Engine UP170
Engine Type Four-stroke, Air-cooled,
OHV gasoline engine
Displacement Capacity(CC) 208
Max. Output(HP)/rpm 7.0/3600
Fuel Tank Capacity(L) 3.6
Lubrication Oil SAE 10W/30
Lubrication Oil Volume(L) 0.6
Spark plug F6TC
Certificate CE EC-II EPA CARB
Shandong huanhai machinery group Co., Ltd is one of largest machineries manufacture in China. It consisted of 3 factories, with more than 800 workers and engineers.
We speclized in manufacturing and exporting of all kinds agricultural machineries, construction machineries and plastics machineries. Our factories have more than 20 years manufacturing experience and can supply all kinds of high quality machinery and equipment. Many of our products have passed CE approval and are exported to European and American market.
We pay much attention to innovation of products, also we adopt all usuful suggestions from customers to improve our products, we can desigh and arrange production according to your reasonable suggestions.
Our main products is as below:
(1 ) agricultrual machineries:
15tpd /20tpd/30tpd/50tpd/70tpd/100tpd/150tpd rice milling plant
TF40 TF50 TF70 series maize mill
Sh41 sh81 sh101 sh121 sh151 sh181 gn12 gn15 power tiller
15HP 20HP 25HP 30HP 35HP 45HP 55HP 72HP 82HP 100HP 120HP four wheel tractors
Yl95A yl100 yl125 yl130 yl150 yl160 oil press
2t to 100t oil pre--pressing plant, solvent extraction plant, refinery plant.
1000ton per year charcoal briequette plant
(2) plastics machineries:
PE/PVC double wall corrugated pipe extrusion line 75-500mm
PP/pet strap band extrusion line 8-20mm
XPS board extrusion machine
WPC profiles extrusion line
PP-r cold and hot water pipe extrusion line
...
With our continued efforts now our all kinds of machineries and equipments have been exported to Turkey, Mexico, Russia, Ukraine, Iran, u. A. E, Saudi arab, Australia, India, Peru, Chile, sri-lanka, South Africa, Benin, Madagascar, Tanzania, Syria, Egypt etc more than 40 countries.
