| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
Pallet ,Manmade Wooden Case or as Your Requirement |
| Certificate: |
ISO9001 SGS CE |
| Origine: |
Qingdao |
| Service: |
OEM and ODM |
| Brand: |
Chifine |
| Machining: |
CNC Turning Milling Drilling Lathe |
| Delivery Time: |
30 Days After Receiving The Payment |
| Tolerance: |
CT7-CT9 |
| Type: |
Clay Wet Sand |
Product Description

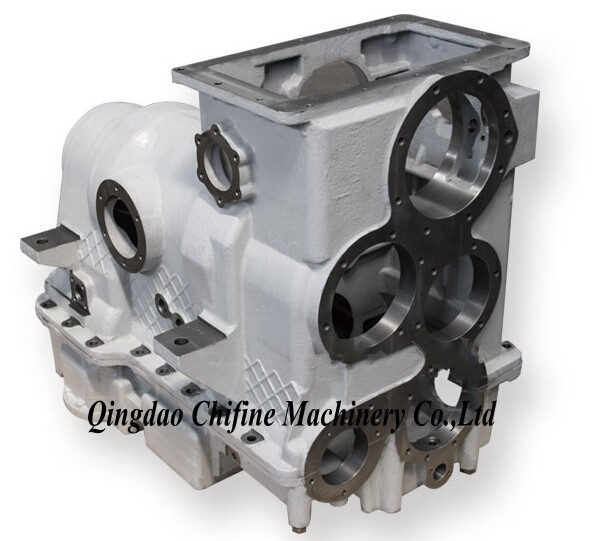

I. sand casting
1) molding process: Green sand casting,Shell sand casting,resin sand casting,auto sand casting line
2) Material:----Grey iron,GG15,GG20,GG25,GG30
Ductile iron GGG40 GGG50,GGG60,GGG70
EN 1596 EN1563,ASTM A159,and etc
3)Molding: Hand made/Half auto made Auto casting line
4)Possible Heat Treatment:Normalizing
5) Industry involved: Agricultural& Engineering& Automotive industry
6) Part Unit Weight range:0.5Kg~1000kg
7) Wall thickness requirements: min 3mm,
Our advantage:
1: High quality with factory price.
2: Strong capability of self-research and self-innovation, can provide one stop service from initial design to through prototype to finished products.
3: Abundant working experience with world-class customers.
4: Strong and efficient international sales' service.
Delivery & Shipping:
1.Via EMS,DHL,UPS,FedEx,TNT and HK air mail for the customer.
2.Supply sea or air freight forwarder or shipping agency.
3 EXW,CIF,FOB,L/C flexible shipping.
4.Any import charges or fees are buyer's responsibility.
Our Service:
Help your design team to improve the part for manufacture( design refine/process optimize/cost reasonable)
1.Your inquiry related to our products or prices will be replied in 8 hours .
2.Experienced staffs to answer all your inquiries in fluent English.
3.We do OEM and ODM service for more than 15 years.
4.Protection of your sales area, ideas of design and all your private information.
5No matter big order or small order we will provide all the best quality,best service
2.Quality ControlWe use first-class facilities in the world to control all the processes to offer products with the best component quality and the correct dimension.
Customer's satisfaction is our final target!
2.Product Design and casting simulation
Successful parts are original from successful design. We own high level engineers on the product design .They are good at make drawing using the software of CAD.PROE,SOLIDWORKS for assuring production process well.Our technical group have rich experience in casting process, so we can put forward reasonable suggestions to the product structure design on various performance, process parameters to solve the customer's requirement, set up the 3D model, get the results from pouring simulation analysis. Then modify and optimize the scheme to determine the correct casting process.
Material
|
Ductile iron,Grey iron |
Process
|
Resin sand |
Weight
|
5okg-12000kg |
Production Capacity
|
15,000 tons per year
|
Certification
|
ISO9001:2008,PED |
Surface treatment
|
Shot-blasting,polish,paint or others according to customers'requirement
|
Lead time
|
30days |
Package
|
wooden case or according to your requirement |
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
