| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
Pallet ,Manmade Wooden Case or as Your Requirement |
| Origine: |
Qingdao |
| Brand: |
Chifine |
| Certificate: |
ISO9001 SGS |
| Machiing: |
CNC Turning Milling Drilling |
| Tolerance: |
CT7-CT9 |
| Delivery Time: |
30 Days |
| Surface Treatment: |
Powder Coating, Painting, Polishing, Galvanizing |
| Service: |
OEM and ODM |
| Type: |
Clay Wet Sand |
Product Description

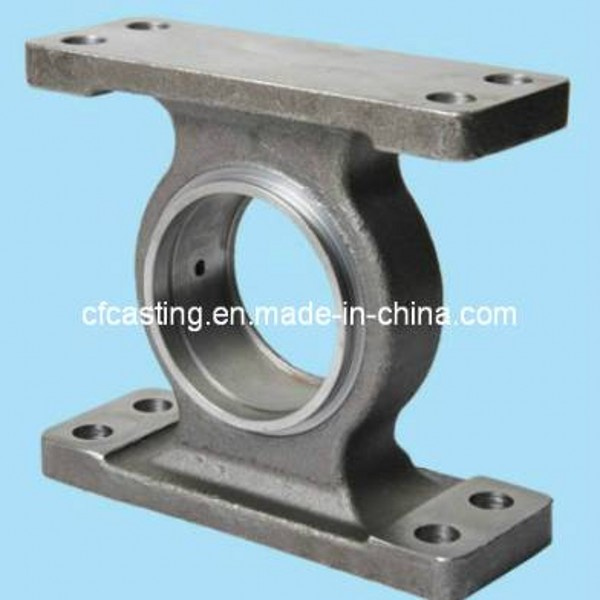

Grey Iron Sand Casting for Machining Casting
1Grey Iron Sand Casting for Machining Casting Material: Cast Iron, Grey Iron, Ductile Iron
2. Standard: ASTM, GB or as per Client Specification
3. Professional Service
4. Full set quality Control
5. Best Quality and Competitive Price
6. Punctual delivery
7. Casting Process:
Client Drawing-Pattern-Casting-Rough Machining-HT-Mechanical Testing-Final Machining
Quality Control:
Grey Iron Sand Casting for Machining Casting
1. NDE after Rough Machining
2. Hardness after Heat Treatment
3. Mechanical testing
4. Final NDE and Final Dimension Check
Quality Assurance Document:
Grey Iron Sand Casting for Machining Casting
1. Item Testing Plan will be submit to customer in 2 days after contract signed.
2. All the Q. A Document as per Client Requirement will be submitted in 1 week after final product delivery.
Packing and Shipping
Grey Iron Sand Casting for Machining Casting
1. Standard: Wooden skid or box for export
2. Delivery: As per contract delivery on time
3. Shipping: As per client request. We can accept CIF, Door to Door etc. Or client authorized agent we supply all the necessary assistant.
| material | grey cast iron, ductile cast iron, steel, stainless steel, brass, copper, bronze, aluminum, zinc etc |
| process | sand casting, precision casting |
| Surface finishment | polishing, sand blasting, heat treatment, painting, powder coating, anodizing, electroplating, mirror polishing. |
| certificate | ISO9001 |
| Service | OEM service available |
| Main export market | Eastern Europe
Western Europe
North America
Mid Africa
Central America
Asia
Australia |
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
