| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Controlling System: |
PLC |
Product Description

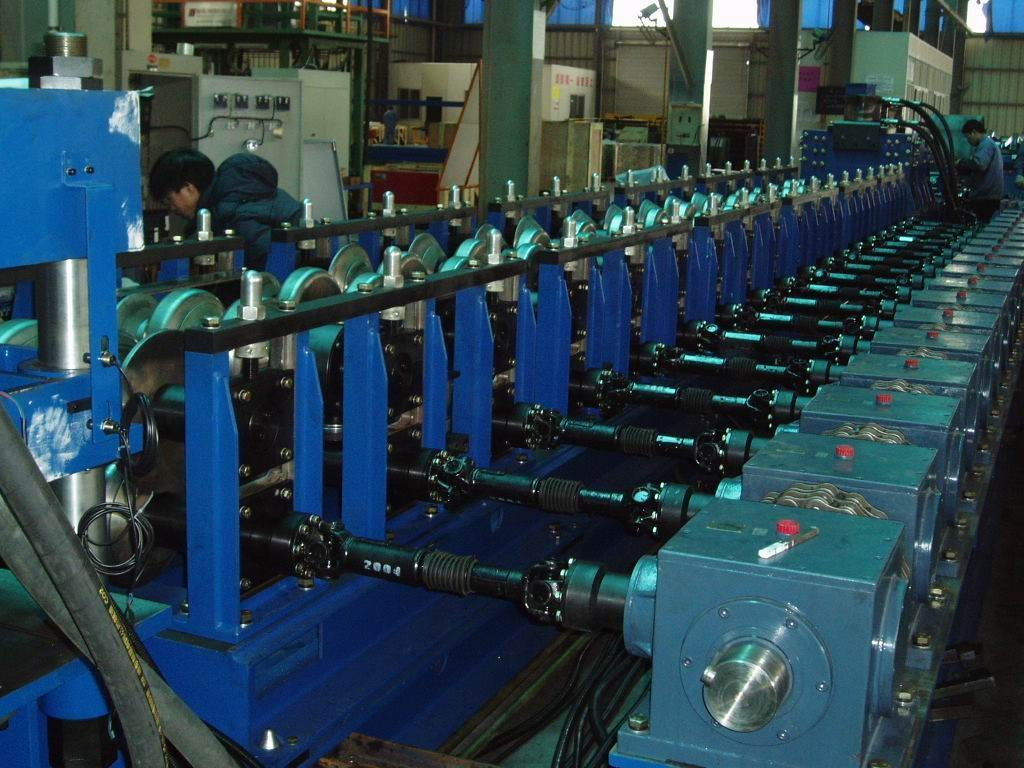

This Guardrail forming machine produce W beam guardrail and thrice guardrail in one machine as customer required. This line is cassette type which will share one machine base for W Beam and Thrice Beam. The whole line mainly consists of 7.5 ton double-cone uncoiler and its base, sheet guiding equipment, sheet leveling equipment, pre-punching equipment, pre-cutting equipment, guardrail forming system, post hydraulic cutting m equipment, automatic stacker, hydraulic and controlling system. It can continuous form the steel sheet according to customers requirement, automatically cut to length, PLC controlled, alternating Current Frequency Conversion.
We can design and manufacture different machines according to customer's requirement. Pls send us the profiles drawing.
|
NO |
Item |
Parameters. |
Remark |
1
|
Suitable material |
Type |
Hot-Rolled Steel |
|
|
Thickness (mm) |
3.0-4.0mm |
|
|
Yield Strength (Mpa) |
235Mpa |
|
|
Coil Width (mm) |
482/748mm |
482mm/W Beam, 748mm/Thrice Beam |
|
2 |
Forming Speed (m/min) |
Variable 20m/min |
Not including cutting and punching time |
|
3 |
Total power |
87KW |
Up to final confirmation |
|
4 |
Power |
AC380V,50Hz,3 Phase |
Up to final confirmation |
5 |
Dimension (L×W×H, m) |
23×7×1.5 |
Up to final confirmation |
|
6 |
Roller Material |
D2 Steel |
Mould Steel |
|
7 |
Shaft Material |
45# Steel |
|
8 |
Total Weight |
55 Ton |
Up to final confirmation |
9 |
Required Operator |
3 workers |
|
