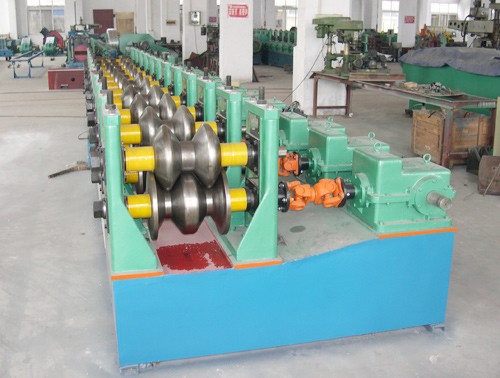

Guard Railway Roll Forming Machine

Guard Railway Roll Forming Machine
Price: US $ 1/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Forging Forming Method: Tire Mold Forging

Product Description

Number

Items

UnitType

RF-RC

1

Steel Thickness

Mm

2-4

2

Forming Speed

M/min

8-12

3

Roller stands

Stand

16

4

Roller Material

45# steel, coated with chrome

5

Main Motor Power

Kw

55

6

Hydraulic cutting Power

Kw

7.5

7

Hydraulic pressure

Mpa

12

8

Power Supply

380V, 50Hz, 3 phase

9

Tolerance

Mm

1.5

10

Material of cutting

Cr12

11

Control system

PLC with touch screen

12

Machine net weight

T

20
Wuxi Rollbank Machinery Co. Ltd is engaged in the research, manufacturing and export sales of various cold roll forming machinery and we are experienced incustomers design, installation and test, technical solution and after-sale services, Innovation, High quality, internationalization is our corporate core. We have been sold out our machines to many countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation. We are expecting you.
1. Cold roll forming machine introductions:
Different cold roll forming machine can produce different shapes of steel roof, wall sheets according to the clients' profile drawings and requirement. Steel roof, wall sheets are new building materials with various thickness and colors.

2. Cold roll forming machine advantages:
Cold roll forming machine has many advantages, such as low cost, easy installation, short building period, re-cycle use, beautiful appearance, and are light weight but high strength. Cold roll forming machine is used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers, etc.

3. Cold roll forming machine main components:
Manual decoiler, Main forming machine, Hydraulic press forming unit, Hydraulic system, Electrical control system, Hydraulic cutter, Normal receiving stand

4. Cold roll forming machine raw materials:
1. Hot dipped galvanized steel coil.
2. Galvalume steel sheet(Zinc- aluminum galvanized steel sheet)
3. Aluminum sheet.

5. Cold roll forming machine operation flow:
Uncoiling---Feeding---Leveling---Rool Forming---Cutting---Products Collecting

6. Cold roll forming machine machinery:
Number of forming rollers: 13-18groups
Material of shaft: 45# steel adjustable treatment. Outer diameter 75mm
Material of roller: 45#steel, plating hard chrome on the surface, rigidity HR55-57
Main motor power: 5kw
Speed of forming: 5-10m/min
Stand: 350# steel welding
The plating chromium of rollers' surface: 0.05mm
Thickness of the steel: 0.4-0.8mm
Chains: 1 inch
Thickness of wall plate: 14mm
Dimension of the machine: 7 m*1.2m*1.5m (depend on final design)
Weight of the machine: 4 ton (depend on final design)

7. Cold roll forming machine installation and training:
1)If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
2)Without visiting, we will send you user manual and CD to teach you to install and operate.
3)If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
4)Spare parts: Bearings, buttons, chains, magnetic valve etc.
