| Prod Model: |
JF75G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

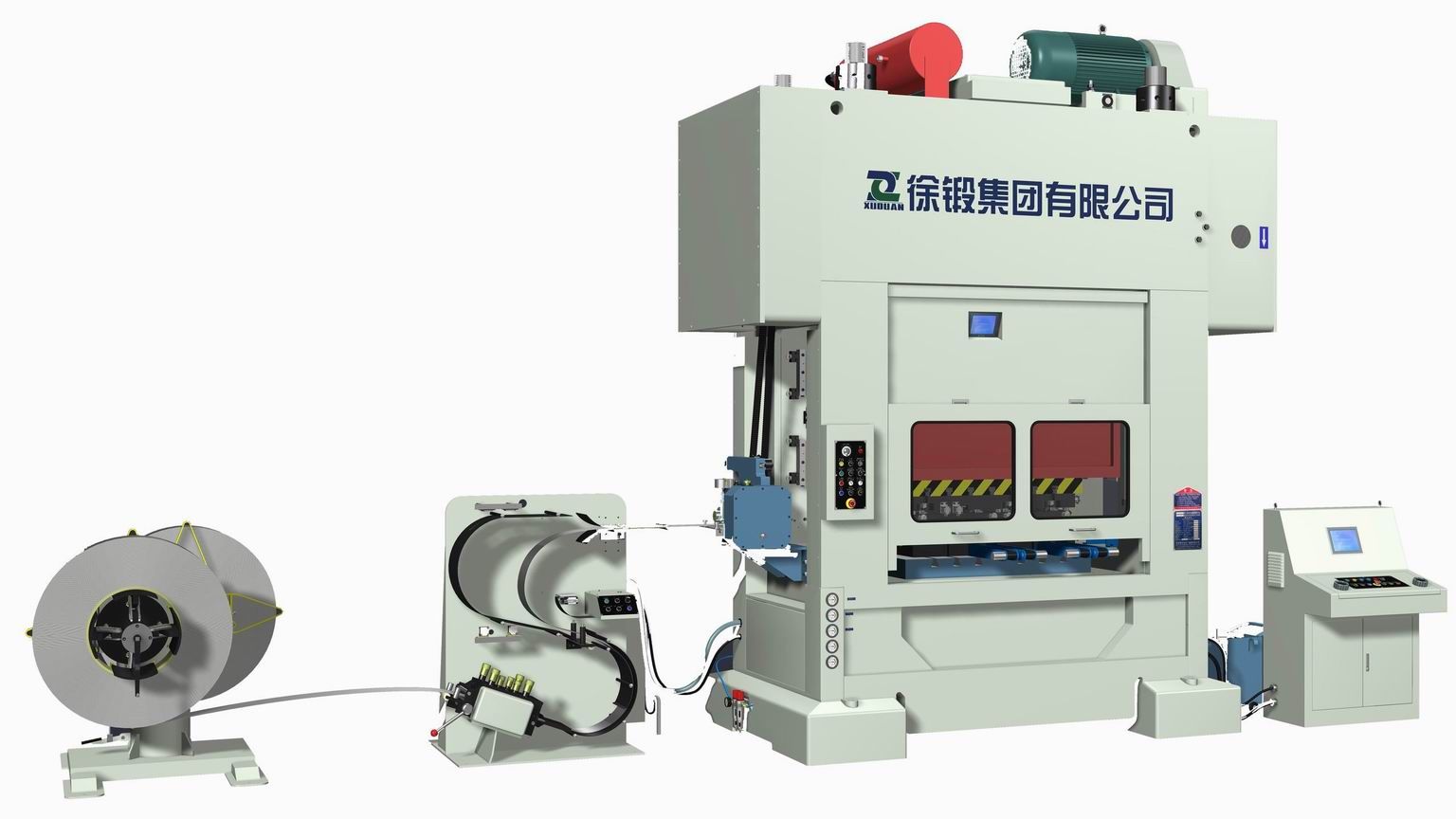

JF75G Series H Type High Speed Precision Press
Purpose and structure performance:
Through finite element and mode analysis and 3D CAD design, JF75G series straight high speed precision has fine construction and is suitable for manufacturing motor rotor and microelectronic etc. Fixed with auto feeder, the press will realize high efficient and precision punching.
Combined pre-stress frame structure and pre-stress of four screws, which means 2 times of nominal pressure and better rigidity.
8 surface guided gib, high precision.
Dynamic balance structure and counter balancer, which means better dynamic precision.
The main shaft adopts multi-bearing points and imported rolling bearing, which will enhance the rigidity and moving stability of the press, reduce the total clearance and generated heat.
Forced cooling, good lubrication condition.
Infinitely variable speed, touch screen man-machine interface is easy for operating.
Microcomputer control system and few peripheral electrical elements which means high stability. User can disassemble the board of the press, which is easy for maintenance.
Xuzhou Metal forming Machine Group Co., LTD, (the original name is Xuzhou Metal forming Machine Works) which is a large state-owned enterprise, owns employee's more than 1300, covers an area of 460, 000 square meters including a construction area of 150, 000 Square meters, and has total assets of 39 million Yuan including more than 13 million Yuan fixed assets.
Be in the light of the technology is creative, the profession is in the lead of business enterprise development strategy, the group has a team of high-quality professional personnel, in which there are 240 specialized persons and 38persons with postgraduate degree. Product development introduces and applies CAD, CAPP, and PDM technical software. So product development period are greatly reduced and design quality is enormously improved. At the same time the tech center of group reinforce the cooperation with Southeast University, China University of Mining and technology, Institutes of Technology of Nanjing and etc, attains efficient data organization &management in the whole life of design, manufacture and finished products. Also the group cooperated with famous colleague manufacturers, such as US Bliss company, Korea KMC Company and Spain's Fagor Company in succession, through which we brought international advanced level press technology and improved core-completion. During recent years, our group applied 2 invention patents, used 9 utility model patent, and 2 soft ware copyrights.
The factory also has sixty years industry experience, strong R &D capabilities and excellent processing equipments. There are 695 pieces machinery in workshop with the best heat-treatment equipment in huaihai economic region. In 2005, in order to keep up with the requirement of the development, the factory purchased land of 133, 332 square meters, invested 1.8 hundred million Yuan in technical reform and built a new plant about 5000 square meters, also purchased 40 pieces process equipments, such as Large Pentahedra Machining station, Large Horizontal Machining Centre, Boring and Milling Machine and so on. Now our factory is the best research &development and manufacturing base for producing high speed power press in China.
There are 8 marketing territories and 40 sales offices in China, more than 100 people who engaged in sale and service also provided with special purpose vehicle, at the same time the enterprise had signed distributorship agreements with more than 100 distributors all over China. The sales service network which covers the whole country. So, we can provide excellent service to users easily and quickly.
