| Prod Model: |
h13 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dia.: |
16mm - 300mm |
| Length: |
6-12m |
| Standard: |
BS |
| Technics: |
Hot Rolled |
| Application: |
Structural Steel Bar |
| Alloy: |
Alloy |
| Special Use: |
Free Cutting Steel |
Product Description

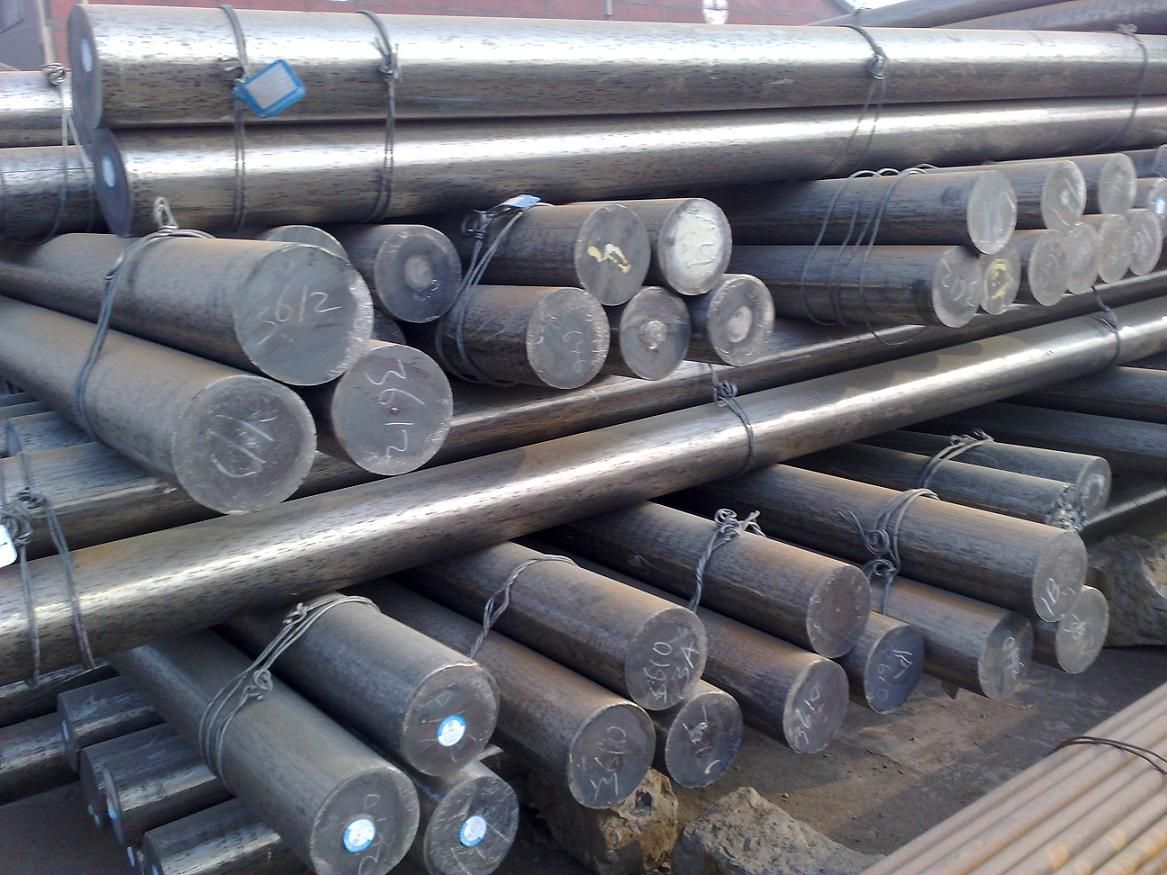

H13 Hot rolled Tool Steel Bars
Product Description
Material |
H13 |
Round bar |
Dia(mm) |
16-300 |
Process |
EAF + LF + VD + Forged + Heat Treatment (optional) |
Length (mm) |
Max 12000 |
Heat treatment |
Normalized / Annealed / Quenched / tempered |
Flat bar |
Thickness(mm) |
8-500 |
Delivery condition |
Hot forged +Rough machined (black surface after Q/T)+ Turned (optional) |
Width(mm) |
70-200 |
Test |
Ultrasonic test according to SEP 1921-84 D/d |
Length (mm) |
Max 12000
|
Chemical Composition
GB |
AISI |
DIN |
JIS |
4Cr5MoSiV1 |
H13 |
1.2344 |
SKD61 |
Country | Steel No. | C | Si | Mn | Cr | Mo | V | P | S |
| China GB | 4Cr5MoSiV1 | 0.32-0.45 | 0.80-1.20 | 0.20-0.50 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 | ≤0.030 | ≤0.030 |
| USA AISI | H13 | 0.30-0.40 | 0.80-1.20 | 0.20-0.40 | 4.75-5.50 | 1.25-1.75 | 0.80-1.20 | ≤0.030 | ≤0.030 |
| Japan JIS | SKD61 | 0.32-0.42 | 0.80-1.20 | ≤0.50 | 4.80-5.50 | 1.25-1.50 | 0.95-1.20 | ≤0.030 | ≤0.030 |
| Germangy DIN | 1.2344 | 0.37-0.42 | 0.90-1.20 | 0.30-0.50 | 4.80-5.50 | 1.20-1.50 | 0.90-1.10 | ≤0.030 | ≤0.030 |
H13 tool Steel Application:
H13 tool steel, mold material AISI H13 mold steel is for making hot forming tools,hot forging dies,pressure casting tools,hot shear knives,tools for plastic industry,hot punches and dies for blanking,hot extrusion diesfor aluminium,tin and lead die casting.
