Product Description

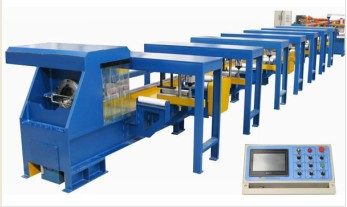

The machine is used for drawing conductor wire RO a Integer size through hydraulic system.
|
Sequence No. |
Item |
|
F-HAD50-12 |
F-HAD50-10 |
F-HAD50-8 |
|
1 |
Effective drawing length(m) |
|
12 |
10 |
8 |
|
2 |
Nominal drawing force(t) |
|
50 |
50 |
50 |
|
3 |
Extrusion specifications(mm) |
Width |
30~170 |
30~170 |
30~170 |
|
4 |
Thickness |
3~30 |
3~30 |
3~30 |
|
5 |
Drawing speed(m/min) |
|
3~10 |
3~10 |
3~10 |
|
6 |
Return speed(m/min) |
|
40 |
40 |
40 |
|
7 |
Oil supply pressure(hydraulic station)(MPa) |
|
20 |
20 |
20 |
|
8 |
Inner diameter of the cylinder(mm) |
|
200 |
200 |
200 |
|
9 |
Piston rod diameter(mm) |
|
100 |
100 |
100 |
|
10 |
Main motor power(kw) |
|
75 |
75 |
75 |
|
11 |
Installed capacity(kw) |
|
88 |
88 |
88 |
|
12 |
Drawing bench machine dimension(mm) |
Length |
27000 |
23000 |
19000 |
|
13 |
Width |
4300 |
4300 |
4300 |
|
14 |
Height |
1500 |
1500 |
1500 |
|
15 |
Minimum workshop length(mm) |
|
40 |
36 |
32 |
|
16 |
Total weight(t) |
|
32 |
31 |
30 |
|
Far East(China) machinery Co., Limited, it has two main products: Electrical machine for cable industry and copper wire and plastics extrusion machinery. We are a large scale group with new technology, up-to-date skill, latest device and combining research, production and sales. Headquartered in Shanghai yangpu area.
Now our company has more than 30 senior engineers and lots of experienced technical workers. We have three big manufacturing & processing centers, so that the work-types can be complete. Our company got the ISO9001 certification and CE certification. Meanwhile, we established the import and export department in 2008, which can help to develop the international markets more successfully.
Nowadays, our company keeps good cooperative relationship with many domestic and oversea industry associations. Our market covers American and European countries, Middle East, Africa, Russia, Ukraine, south-eastern Asia and so on. We have built some large projects abroad, even turnkey projects.
Honesty, quality and efficiency is our strict promise.
Welcome to visit us--Far East(China) Machinery Co., Limited
