Product Description

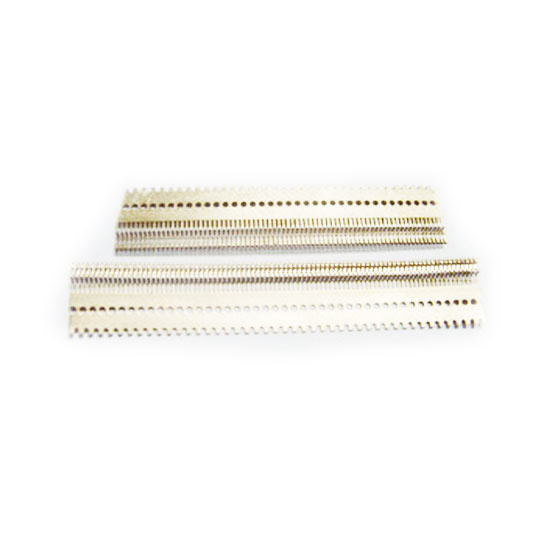

FPC connector pin
Products Information
Battery conector pin FPC connector pin 0.6Board to board pin
Connector for Consumer Electronics
Product Name: BOARD TO BOARD PIN
Spacing: 0.4MM
Material & Thickness: C5210R-H T=0.1
CAV: 2
Dimension: 0.8*10 MM
Tolerance: Standard tolerance + 0.02MM Critical dimension tolerance 0.005
Stamping speed: 600SPM
Capacity: 10000K SET
Machine: KYORY Longmen
|
Description of Products: |
Hardware /Connector Terminal / FPC Connector Pin |
|
Product material |
Phospor copper, bronze, etc, according to buyer' s requirment.
Plating: Tin, Silver, Nickel, Gold, according to buyer. |
|
Precision |
≤ 0.01mm |
|
Roughness |
1.6UM RA-6.3UM RA, or N7-N9 |
|
PROCESS |
Purcahsing order→ Engineering appraise and Request for change→ Layout design→ New product meeting→ Die design and Material plan→ Incoming material check→ Die processing→ Die Assembly→ Die trial→ Sample check→ Sample internal approval→ Sample submission→ Die Buyoff |
|
FINISH |
The type of surface treatment depends on the volume or according to customer' s requirement |
|
INSPLEADTIMEECTION |
5~10 Samples with full dimension report send to customer for approval before delivery.
CD record with construction/part drawing will be delivered with the dies |
|
PACKAGING |
Wooden case, fumigation treatment. |
|
LEADTIME |
15~60days, depending on different products |
Established in 1982, Helioway Group is a professional Hardware company specialized in mould design, mould manufacturing of connectors and casing for computer, cell phone, consumer electronics, auto parts etc.As well as precision metal stampings production.
We set up a plant in Guangzhou in Nov.1999.
Helioway focuses on the R&D of high speed precise progressive die as well as stamping production since its establishment.
We have 86 die machines including BRUDERER.KYORI etc.
Process technology capability:
A:Zero loss of material use
B:The min.Space between connectors is 0.4mm
C:The pressing SPM can reach to 1000-1500
D:The precision parts tolerance can control in +/-0.01mm
E:The rate of hole diameter and thickness is 0.85:1
F:The stamping material thickness is 0.07---1.00mm
