Prod Model: |
Hastelloy C276 Forged flanges, UNS N10276, 2.4819 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size Specification: |
1 1/2" 150# Sch40 Sw B16.5 C276 |
Material: |
Alloy Steel |
Type: |
Welding Flange |
Standard: |
As219/As4087/Sans1123/SABS 1123 |
Manufacturing Way: |
Forging |
Product Description
Quick Details
Size: | 1/2" to 60" | Material: | Alloy Steel | Standard: | ANSI,ASME,ISO,DIN,JIs,etc.,ANSI, ASME,DIN, JIS,MSS, API, BS, AWWA and GB |
Place of Origin: | China | Model Number: | Hastelloy C276 | Brand Name: | C&N |
Standard or Nonstandard: | Standard | certificate: | ISO SGS | Chemical Composition: | Ni, Cr, Mo,Fe, etc |
feature: | corrosion resistance & high temperature | technique: | forging,heat treatment,CNC Machining, | price term: | FOB/CIF/CFR |
OEM&ODM: | acceptable | Payment: | T/T , L/C with deposit | 100%factory: | Yes |
| |
Packaging & Delivery
Packaging Detail: | Wooden Box |
Delivery Detail: | within 15-30 days |

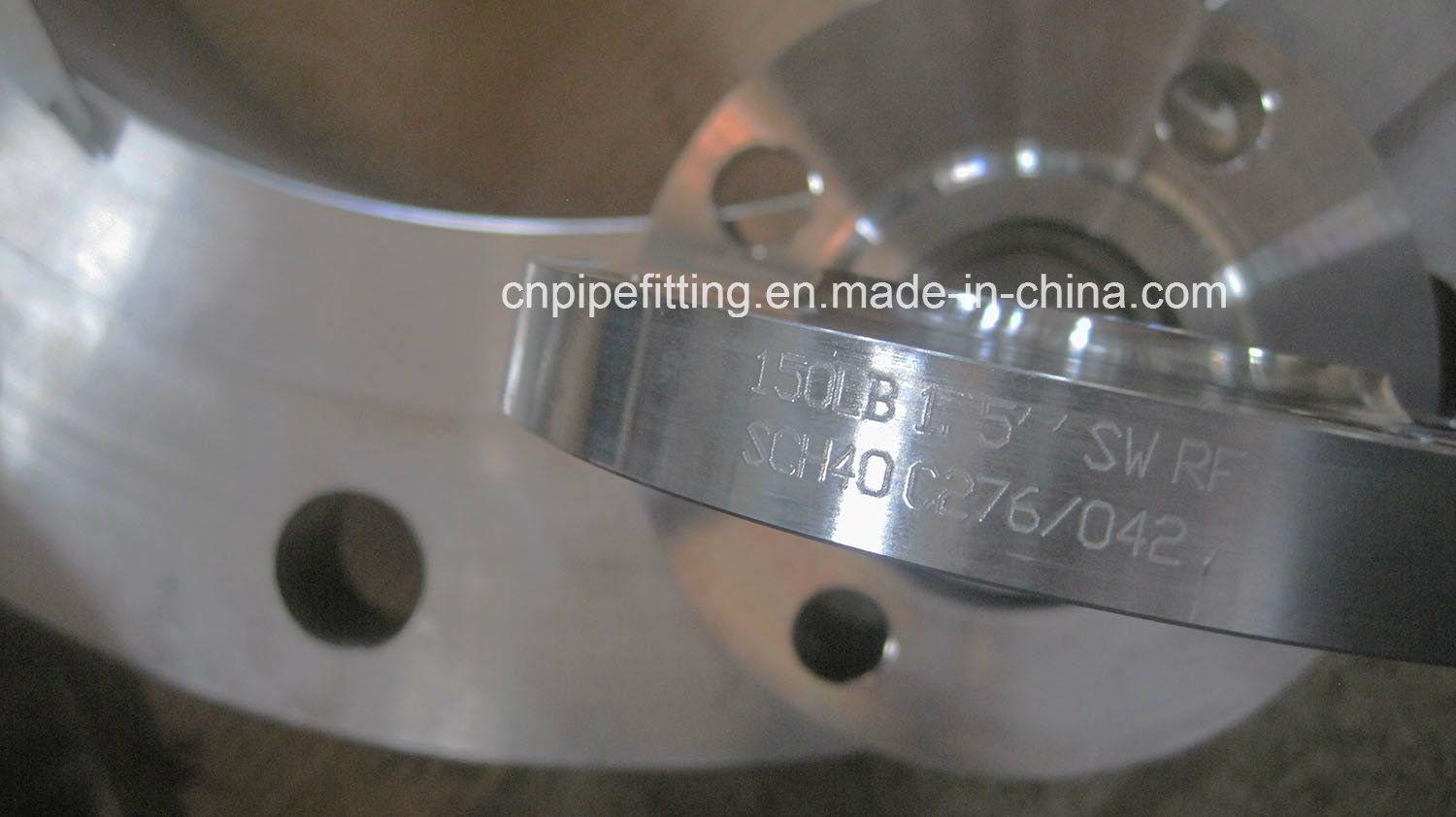

UNS N10276 nickel alloy hastelloy c276 forged flanges
Type: Weld Neck, Slip-On, Blind, Socket Weld, Lap Joint, Threaded, Orifice Flange, Swivel Flange, Spectacle Blind,Etc.
Material Grade :
Hastelloy C276 UNS N10276
Hastelloy C276 / C-22 / C4 , hastelloy X / S, hastelloy B3 / B2, Hastelloy C2000 ; Hastelloy G-30 , Hastelloy G35,etc.
Nickel alloy, Cobalt base alloy, and Iron base alloy, stainless steel , Duplex&Super Duplex ,etc
Inconel , Incoloy , monel , stellite , etc.
Standard : ASME/ANSI B16.5 , B16.47A/B, MSS SP-44 , ISO7005-I , API605, DIN, JIS, BS1560-3.1
Pressure Class: 150#, 300#, 400 #, 600#, 900#, 1500# & 2500 #
Other products like valve seats / stems / caps / ball valves , pumps body / parts , alloy rod / bar , , alloy wire , alloy springs , fasteners/ screws , alloy pipes are available
Performance of hastelloy C276
Chemical Composition, %
|
Ni | Mo | Cr | Fe | W | Co | Mn | C |
---|
Remainder | 15.0-17.0 | 14.5-16.5 | 4.0-7.0 | 3.0-4.5 | 2.5 max | 1.0 max | .01 max |
V | P | S | Si | | | | |
---|
.35 max | .04 max | .03 max | .08 max |
|
ASTM Specifications
Pipe Smls | Pipe Welded | Tube Smls | Tube Welded | Sheet/Plate | Bar | Forging | Fitting | Wire |
---|
B622 | B619 | B622 | B626 | B575 | B574 | B564 | B366 |
|
Mechanical Properties
Typical Room Temperature Tensile Properties of Annealed Material
Product Form | Tensile (ksi) | .2% Yield (ksi) | Elongation % |
---|
Bar | 110.0 | 52.6 | 62 |
Plate | 107.4 | 50.3 | 67 |
Sheet | 115.5 | 54.6 | 60 |
Tube & Pipe | 105.4 | 45.4 | 70 |
C&N Industrial group limited is a leading manufacturer of steel pipef itting, flange products in China With 10 years in pipeline fields both manufacturing and trading. We have been supplying high quality piping material to our customer all over the world.
Our production scope:
Butt weld Fittings:
Standard: ASME B16.9 16.28/MSS SP-43/DIN 2605/JIS B2311/ 2312
Elbows(45Deg, 90Deg, 180Deg), Tee(Equal&Reducing), Cross, Reducer, Cap, olet, etc
Forged fittings: THREADED/SOCKET WELD
ASME B16.11, BS3799, JIS B2316, MSS-SP-79, MSS-SP-83
ELBOW, TEE, CROSS, UNION, COUPLING, CAP, BOSS, BUSHING, OUTLET, INSERT
Flanges: ASME/ANSI/API JIS, DIN, EN/BS
Welding Neck, Slip on, Threaded, Socket Welding, Blind, Orifice,
We are also offering our customer a total soluation for the whole piping material packages
Which includes, stainless steel pipes, carbon steel pipes, valve, gasket, bolts etc.
For further information about our company and products, please visit our website, and please do not hesitste to drop us a mail for any inquiry.
