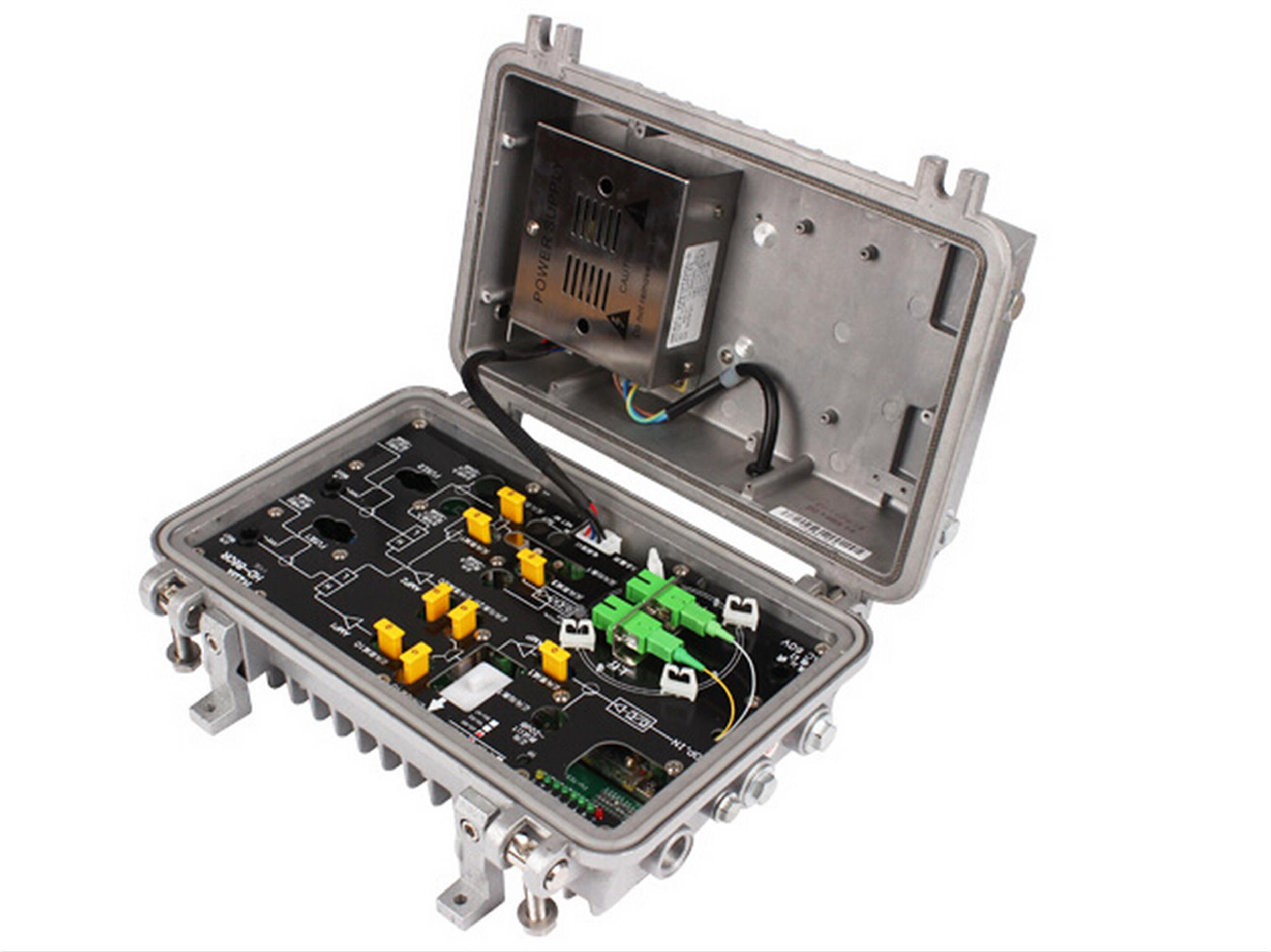

HD-860r CATV Optical Node / Receiver

HD-860r CATV Optical Node / Receiver
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: HD-860R
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Bandwidth: 870MHz
Optical Input Power: -6~+2dBm
Output Level: 108dbuv
Power Consumption: 20W
Type: CATV(Cable Television)Equipment
Function: Signal Transmission Equipment
Certification: ISO
Condition: New

Product Description

Optical Node

Description
HD-860R is a kind of bidirectional optical node. It has a high-level output port and a -20dB test port. The output level can reach as high as 108dBuV. The reversed optical transmitter module is with hot-swap structure, plug and play. It can be compatible with ANTEC reversed optical transmitter module. It is equipped with network management port, can be monitored and managed.


Feature
1. Aluminum die-casting housing with hammer paint, good performance in heat dissipation
2.862MHz bandwidth, 1000MHz platform
3. High output level, maximum downstream level can reach 108dBuV
4. NXP optical receiver hybrid module and GaAs power double amp. Module, ensure the high output level and low distortion, improve the non-linear specification
5. Reversed optical transmitter module can be plug and play, compatible with ANTEC reversed optical transmitter module
6. With network management port, can be monitored and managed comprehensively
7. Several choices for split frequency, with high effective switching power supply, AC220V or AC60V optional
8. Independent power port, 10A continuous over-current capability, maximum can reach as much as 15A
9. Compatible with 1310nm and 1550nm optical signal

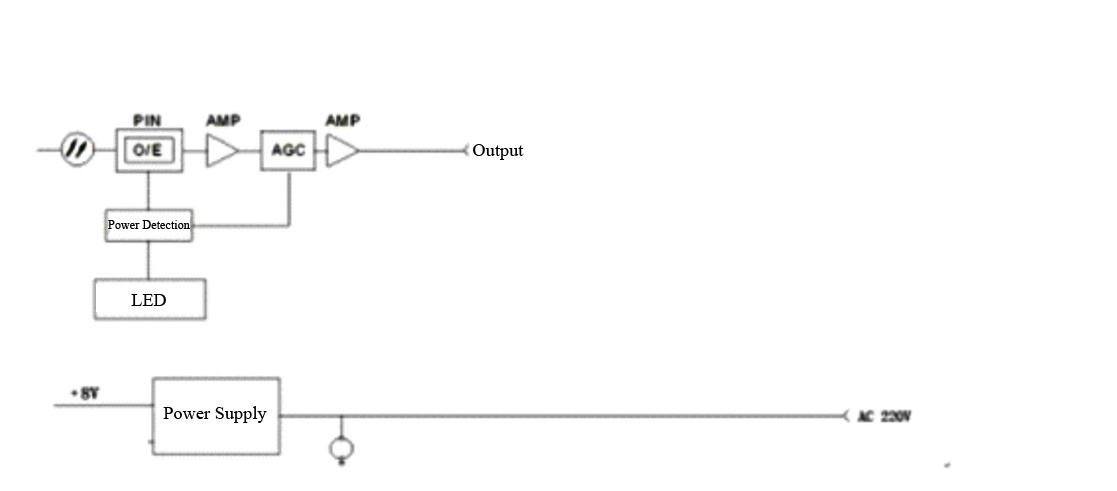

Block Diagram


Specification
No.ItemSpecification
Optical Specification
1Wavelength1290-1600nm
2Input Return Loss>45dB
3Responsivity of Optical Module0.85A/W (1310nm typical value)
4Optical Input Power-6~+2dBm
5Fiber TypeSMF (9/124μm)
6Fiber ConnectorSC/UPC
7Upstream Optical Power1mW
8Upstream Laser TypeFP
9Upstream Laser Wavelength1310nm
10Voltage Monitoring of Receiving Power2V/mW
11Voltage Monitoring of Transmitting Power1V/mW
Electrical Specification
1Bandwidth**-750MHz/**-862MHz
2Flatness≤±0.75dB (Downstream)
3RF Return Loss16dB (Downstream)
16dB (Upstream)
4Frequency Split (fL/fH)30/47MHz, 40/52MHz, 65/85MHz
5Nominal Output LevelFlat Output 106dBuV
6Max Output Level108dBuV (-1dBm receiving power)
7LinkC/N53dB
C/CTB70dB
C/CSO65dB
8Level at Test Port-20dB±1dB
9Gain Adjustable Range1-15dB/1dB-step fixed attenuator
10EQ Adjustable Range2-22dB/2dB-step fixed slop plug-in
11RF Output ConnectorF-type or 5/8" 24-teeth thread
12Internal RF ConnectorSMB RF Connector
13Data Port of Transponder10-pin data port
14AC Power Voltage60V (40-90VAC) or 220V(100-240VAC)
15Over-currentMax 15A
16DC Power Output Voltage+24V
17Max Power Consumption20W
Test Condiction:
60-PAL channel input, DONYAN transmitter, -1dBm optical receiving power, nominal output level

Guangdong Donyan Network Technologies Co., Ltd. is a leading Chinese manufacturer of fiber optic transmission equipment for CATV, FTTH, EPON, GEPON and HFC applications. The highly innovative and experienced technical and support teams have been engaged in research and development in CATV industry for more than 15 years. Our product ranges from headend to distribution network, the products are fully mature and popular at home and abroad. We also offer ODM and OEM service according to customer' S requirements.

DONYAN mainly involves in:

*Development and Manufacture

HFC, GEPON and EoC equipment development, manufacture, sales and services

*Network Planning and Design

Bi-directional HFC network investigation, design, optimization and technical consultation

*System Integration

Integration of optical transmission equipment, VOD system, and access devices of EPON, EOC and CMTS systems.

*Operation Service

Bi-directional HFC network operation technical support, training and equipment maintenance
