| Price: | US $ 3600/Ton |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Ton |
| Pay Type: | L/C,T/T,D/P,Paypal,Western Union |
| Prod Model: | JX |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: | Dia30-600mm X 120X3000mm |
| Bulk Density: | 1.70-1.78g/Cc |
| Carbon Content: | High-Carbon |
| Grade: | Industrial Grade |
| Type: | Graphite Rod |
| Forming Way: | Extruded Graphite |
| Crystal Morphology: | Artificial Graphite |
| Composition: | Petroleum Coke and Pitch Coke |
JX Vibration Graphite Use application:
-hot pressing molds, static casting molds, centrifugal casting molds, pressure casting molds, etc.
- Furnace parts: resistance heating elements, induction susceptors, structural elements and charging plates, furnace linings, heat shields and covers for pulling monocrystalline silicon or optical fibers, etc.

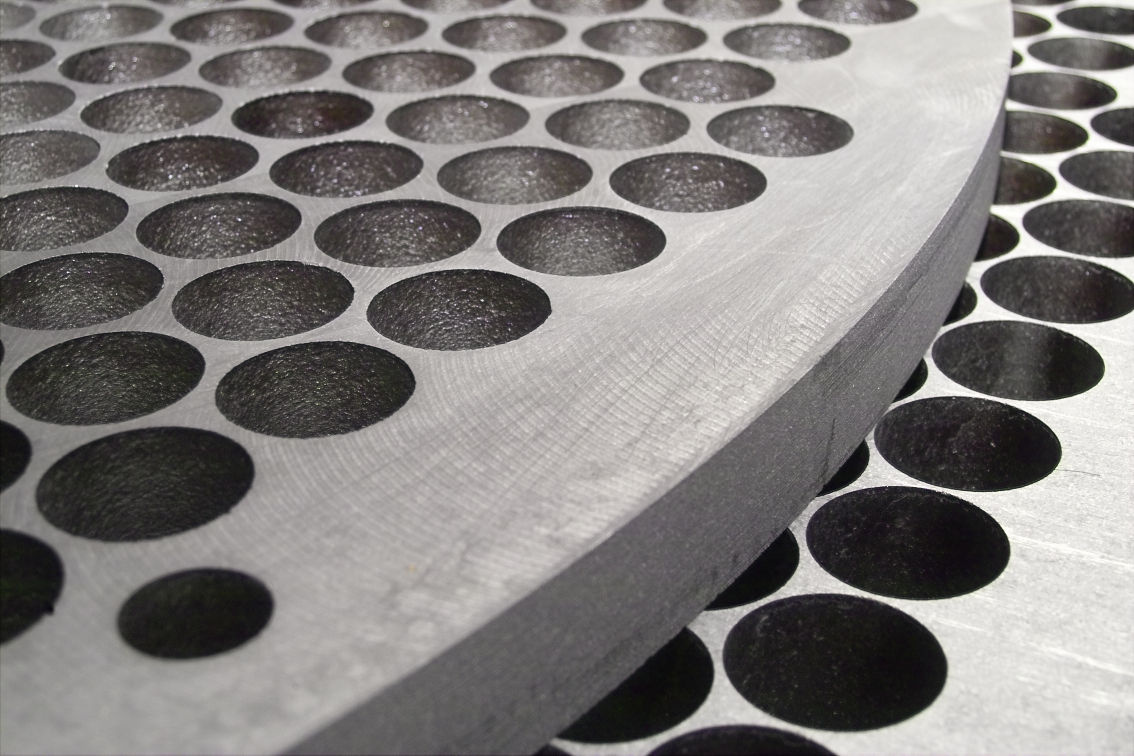

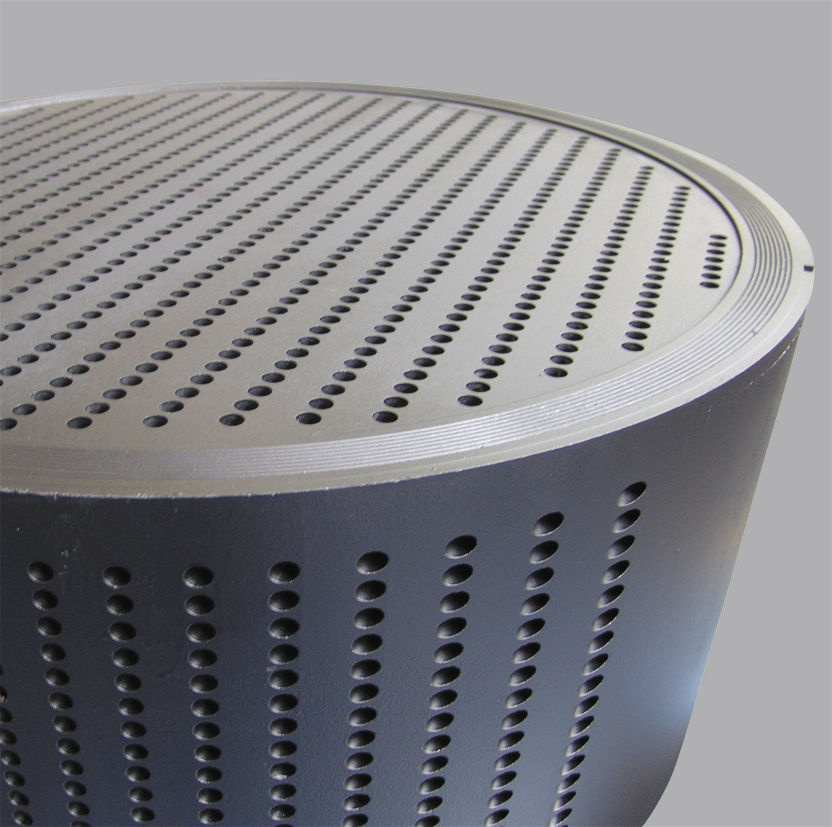

- Parts for heat exchangers.
- Crucibles for melting and reduction.
- Boats and trays for sintering, etc.
- High thermal and chemical resistance.
- Good thermal conductivity.
- Low coefficient of thermal expansion.
- Minimal wettability to molten metals.
| Test Item | Unit | JXD1 | JXD2 |
| Electric Resistance | μΩm | 8.5 | 8.5 |
| Bulk Density | g/cm³ | 1.72-1.74 | ≥1.70 |
| Grain size | mm | 0.8 | 0.8 |
| Compressive Strength | M pa | 37 | ≥32 |
| Bending Strength | M pa | 17 | ≥14.5 |
| Porosity | % | 18 | ≤20 |
| Ash content | % | 0.11 | ≤0.3 |
| C.T.E. | 10 -6 /Centigrade | 2.5 | ≤3.2 |
| Size | mm |
Max. diameter:1500mm Max. height: 600mm |
|
