| Prod Model: |
CF-76 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
Pallet, Manmade Wooden Case or as Your Requirement |
| Origine: |
Qingdao |
| Certificate: |
ISO9001 SGS |
| Supply Ability: |
150tons Per Month |
| Brand: |
Chifine |
| Service: |
OEM and ODM |
| Delivery Time: |
30 Days After Receiving The Payment |
| Machining: |
CNC Turning Milling Drilling Lathe |
| Quality Control: |
Profession QC and Test Equipment |
| Tolerance: |
CT7-CT9 |
| Casting Method: |
Thermal Gravity Casting |
| Material: |
Stainless Steel |
| Surface Preparation: |
Sand Blast |
Product Description
Product Information:

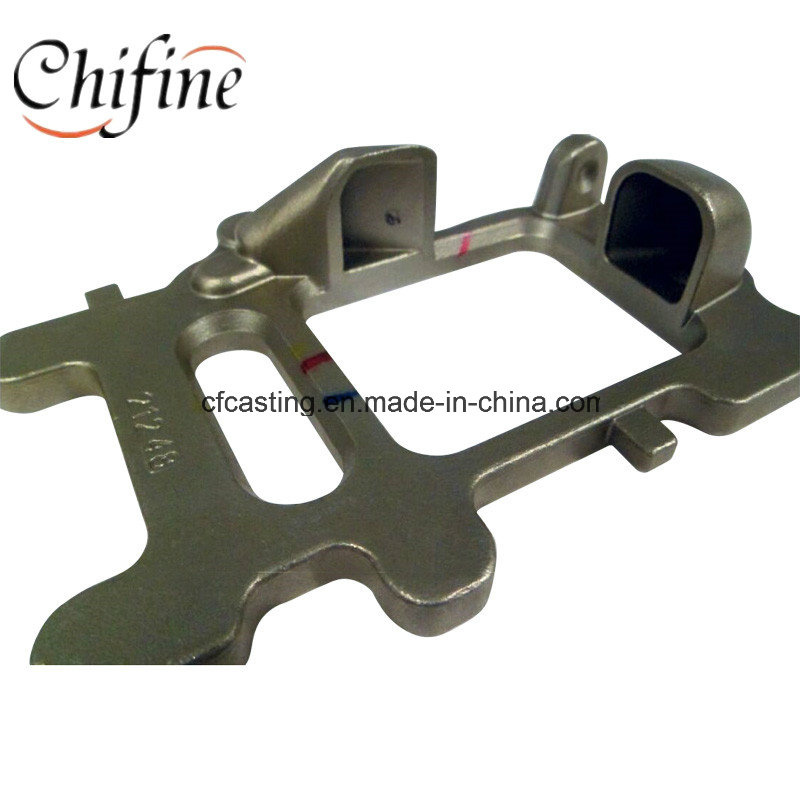

1. Investment Casting / Precision Casting Parts / stainless steel sand casting parts / machinery parts / CNC machining parts, Steel Investment Casting / Steel Precision Casting
2. Progress of precision casting: Investment casting
3. Precision Casting materials: Stainless steel, Carbon steel, alloy steel
4. We can do different kinds of surface treatment after casting, such as machining, polishing, and plating
5. All sorts of precision casting parts: Marine casting parts, auto parts, machinary casting parts
6. OEM are welcomed.
Productive Process: Wax Mould-Shell Making-Dewaxing-Smelting&Casting-Shell Off-Blasting-Cutting&Polishing-Acid Washing-CNC Precised Machining
Casting facility: wax injector, electric furnace,heat treatment furnace,cutting head machine, shot-blasting machine, sand-blasting machine.
Machining facility: CNC,NC lathe,ordinary machine tools,linear cutting machine, NC milling machine, polishing machine.
Our Inspection Equipment:
Direct-reading spectrograph,metallographic microscope,hardness tester,brinell hardness tester,thermometric indicator,universal testing machine,carbon and silicon analysis meter,magnetic powder flaw detector,digital ultrasonic flaw detector etc.
Our Service:
1.Your inquiry related to our products or prices will be replied in 12 hours.
2.Individual formula according to customers' special drawing requests.
3.Manufacturer with large capacity,ensures the fast production cycle after
confirming the order.
4.Protection of sales area and private information for all of our customers.
Quality Control:
We have a full set of quality control system to guarantee best product quality. Depending on the products, we can make different Item Testing Plan, Manufacturing procedure etc.
Raw material control
Chemistry spectrum analysis
Mechanical property
Metallographic analysis
Ultrasonic testing
Magnetic testing
Radiographic testing
Dimension inspection
Visual inspection
Penetrant testing
Leak testing
Hardness test
Micro-structure tester after heat treatment
Machining Ability
Our machining shop located in Qingdao using the latest CNC equipment to provide our customer with high quality products.
Horizontal and Vertical Machining Center
CNC lathe and normal lathe
CNC drilling and milling Center
Other assistant equipment
Qingdao Chifine Machinery Co.,Ltd is one famous company in China which specialized in various metal casting products with over 10 years experience located in Qingdao China.It covers a comprehensive range of forging, stamping, sand casting, investment casting, die casting and machining and was widely used in Agriculture machinery, Motor Vehicle, Architecture,Railway and Engineering
As a professional company, Chifine have four groups of experienced teams to be in charge of different work:
Project team-customer service
Engineering team-provide R&D and technical support
QC team-productive process control and incoming parts inspection
Warehouse team-warehouse management and logistic service
Advantages:
1). We have won the certificate of ISO9001: 2008.
2). We are one factory ,we can produce the casting by ourselves. The material covers cast iron ,carbon steel ,stainless steel and forging
3). Our strong R&D and QC department can control the products to meet your strict requirement.
4). We can provide OEM and ODM service. Customized order is available.
5).15years exporting experience. Our strong R&D and QC department can control the products to meet your strict requirement.
6) .Excellent and professional service:
Name | OEM Investment/Precision Casting-Stainless /Carbon/Alloy Steel/Iron Casting |
Technology |
Investment casting of silicon sol production line |
Material |
Stainless Steel Carbon Steel Alloy |
Surface Treatment |
Polishing, machining, machining center, plating, Heat Treatment, and so on |
Weight |
0.05kg~150kg |
Delivery time |
Samples within 7-10 days, mass production within 30-35 days. |
Packing |
Carton or according to customer's requirements |
MOQ |
100pcs |
Payment |
T/T,L/C |
Capacity |
200 tons per year |
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
