| Prod Model: |
ML-1400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automatic Grade: |
Semi-Automatic |
| Placing Form Of Template: |
Horizontal |
| Imprinting Type: |
Platen |
| Application: |
Earthquake Products |
| Die Cutting Tool: |
Steel Plate |
Product Description

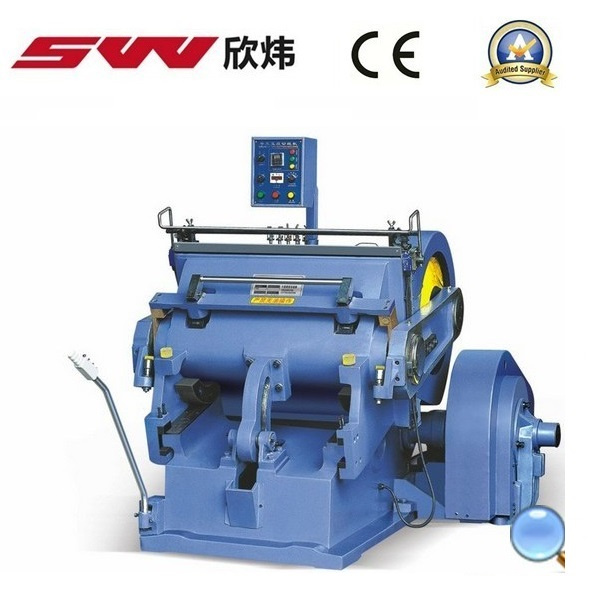

Heavy Duty die cutter with CE Stander is special equipment for creasing and die cutting cardboard, corrugated board, plastic board and leather, and is widely used in printing, packaging and plastic industries. It is characterized by compact structure, fine workmanship, high pressure, high precision and easy and reliable operation.
Features:
1)High strength due to whole body casting with high quality material.
2) Smooth running, high pressure and low noise with 3-step helical gear mechanism.
3) Single plate electromagnetic clutch is sensitive and reliable.
4) Operational altitude is reasonably arranged, moving-bed opens to its maximum.
5) Single, continuous operation and opening delay are available, delay range adjustable.
6) Reliable safety system.
7)Adjustable chases with movable bar
|
Model |
Max. inner chase size |
Working speed |
Creasing length |
Motor power |
Weight |
Overall dimension |
|
|
mm |
strokes/min |
mm |
KW |
T |
mm(L*W*H) |
|
ML750 |
750*520 |
25±2 |
<15 |
2.2 |
2.0 |
1450*1600*1450 |
|
ML930 |
930*670 |
23±2 |
<25 |
3.0 |
3.0 |
1670*1670*1630 |
|
ML1100 |
1100*800 |
20±2 |
<32 |
4.0 |
4.5 |
1900*1780*1700 |
|
ML1200 |
1200*830 |
20±2 |
<35 |
4.0 |
4.8 |
1920*2140*1920 |
|
ML1300 |
1300*920 |
18±2 |
<40 |
5.5 |
6.0 |
2000*2140*2000 |
|
ML1400 |
1400*1000 |
17±2 |
<45 |
5.5 |
6.8 |
2010*2400*1930 |
ZHEJIANG XINWEI MACHINERY Co., Ltd. is an integrated high-tech enterprise setting research and development, manufacturing, sales, service as one. From the beginning, we always adhere to the management concept of "technological innovation and development, quality of survival"and set establishing an international high standard of packaging machine manufacturing system as the mission. Always listening to the clients" voice, meeting customer expectations-oriented, and in-depth researching and development, we have won numbers of national invention patents and the latest national standards as "the national high-tech enterprise", and passed the ISO9001: 2008 and CE certificate.
The face of ever-changing, increasingly fierce competition in the domestic and overseas
Market, We insist that the customer service concept, the idea of full joint development. And always played a role in the command center. For the purpose of the spirit: Saving space and labour for customers and Improving economic efficiency.
Look forward to working with you to create brilliant future.
