| Prod Model: |
900*1800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mill: |
Milling Limestone |
| Type: |
Roller Crusher |
| Crushing Style: |
Extruding & Milling |
| Drive: |
Electric |
| Finished Surface: |
Outer Surface Process |
| Application: |
Stone Industry |
| Crushing Degree: |
Ultra-Fine Mill |
| Compressive Strength (',For Crushing): |
Please Consulted on The Specification |
Product Description
Gongyi Machinery Factory:http://www.gymineralprocessing.com
fixed-line telephone:86-0371-64324031 85603988
FAX:86-0371-64324051
Add:Gongyi City,HenanProvince, Kangdianzhen goverment one kilometer south
contacts:Sir ma;Tel:18538037601
We will offer warm-hearted service to you

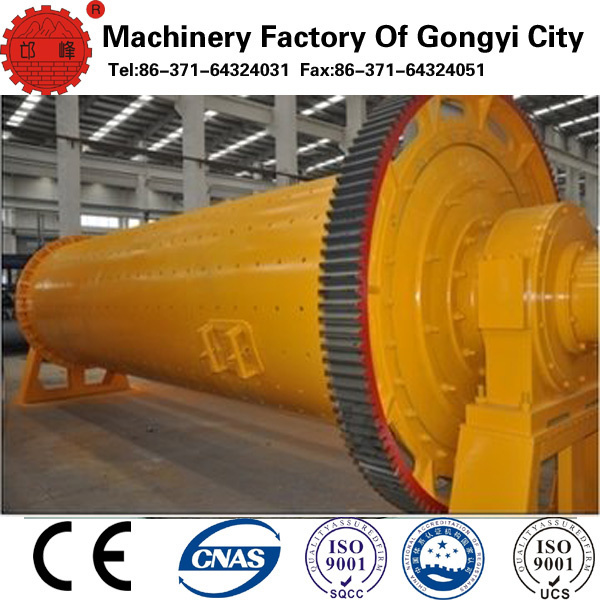

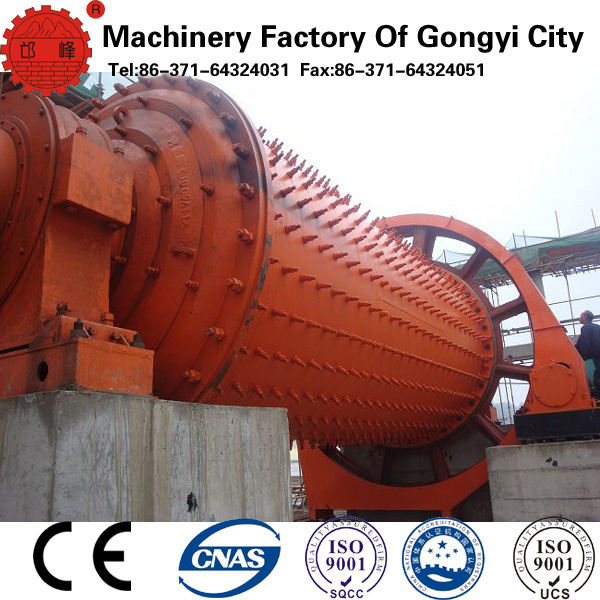

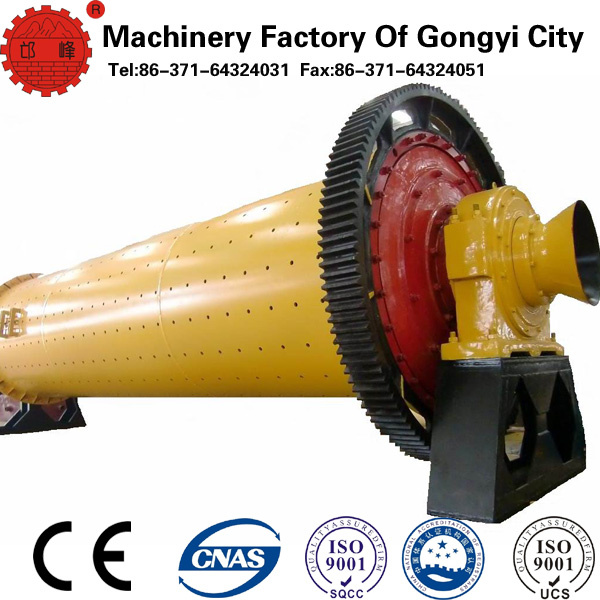

Ball mill is widely used for dry or wet grinding process of various ores and other materials in cement, silicate products, new building materials, refractory, fertilizer, ferrous and non-ferrous metal and other industries.
Usage and application of ball mill
Ball mill is key equipment for grinding materials after being crushed. Ball mill is widely used for dry or wet grinding process of various ores and other materials in cement, silicate products, new building materials, refractory, fertilizer, ferrous and non-ferrous metal and other industries. In addition, the price of ball grinder produced by our company is reasonable.
Working principle of ball mill grinderBall mill grinder is a horizontal cylindrical turning gear with central gear and two cabins. Material will be fed into the first mill warehouse from feeding device spirally and evenly. There are ladders liner or corrugated liners in the first warehouse, and the liner is built with steel ball with different specifications. The rotating cylinder produces centrifugal force which brings the ball to a certain height, and when the steel ball falls down, it brings severe crushing and impact on the material. After the coarse grinding in the first warehouse, the material will be fed into the second warehouse through monolayer partition panel, and the flat liner and steel balls in the second warehouse can give the material a further grinding, finally, powder will be discharged through grate plate and complete the grinding operation.
Structure features of grinding millsGrinding mills is mainly composed of the feeding part, discharging part, rotary part, driving part (reducer, small driving gear, motor, electric control) and other major parts. The hollow shaft of the ball mill is made of cast steel, and its inside lining is removable, while the rotary gear is processed by casting gear, and the anti-abrasion liner is inlaid in the cylinder body. Therefore, the ball mill enjoys a good abrasion resistance. The grinding miller has features of smooth running and reliable operation.
Dry-type ball mill and wet grid ball mill can be selected according to the material and discharging way.
Types of ball mill machine:
Overflow ball mill,
dry-type ball mill,
stirring ball mill,
cement ball mill,
mini ball mill,
wet-type ball mill.
Technical parameters of Ball mill
| Model | Shell rotation speed(r/min) | Ball load(t) | Feeding size(mm) | Discharging size(mm) | Capacity | Motor power(kw)(kw) | Weight(t) |
| (t/h) |
| Ø900*1800 | 36--38 | 1.5 | <=20 | 0.075-0.89 | 0.65-2 | 18.5 | 5.5 |
| Ø900*3000 | 36 | 2.7 | <=20 | 0.075-0.89 | 1.1-3.5 | 22 | 6.7 |
| Ø1200*2400 | 36 | 3 | <=25 | 0.075-0.6 | 1.5-4.8 | 30 | 12 |
| Ø1200*3000 | 36 | 3.5 | <=25 | 0.074-0.4 | 1.6-5 | 37 | 12.8 |
| Ø1200*4500 | 32.4 | 5 | <=25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| Ø1500*3000 | 29.7 | 7.5 | <=25 | 0.074-0.4 | 2-5 | 75 | 16.8 |
| Ø1500*4500 | 27 | 11 | <=25 | 0.074-0.4 | 3-6 | 110 | 21 |
| Ø1500*5700 | 28 | 12 | <=25 | 0.074-0.4 | 3.5-6 | 130 | 25.8 |
| Ø1830*3000 | 25.4 | 11 | <=25 | 0.074-0.4 | 4-10 | 130 | 29 |
| Ø1830*4500 | 25.4 | 15 | <=25 | 0.074-0.4 | 4.5-12 | 155 | 35.5 |
| Ø1830*6400 | 24.1 | 21 | <=25 | 0.074-0.4 | 6.5-15 | 210 | 43 |
| Ø1830*7000 | 24.1 | 23 | <=25 | 0.074-0.4 | 7.5-17 | 245 | 43.8 |
| Ø2100*3000 | 23.7 | 15 | <=25 | 0.074-0.4 | 6.5-36 | 155 | 34.8 |
| Ø2100*4500 | 23.7 | 24 | <=25 | 0.074-0.4 | 8-43 | 245 | 38 |
| Ø2100*7000 | 23.7 | 26 | <=25 | 0.074-0.4 | 8-48 | 280 | 56.6 |
| Ø2200*4500 | 21.5 | 27 | <=25 | 0.074-0.4 | 9-45 | 280 | 51.8 |
| Ø2200*6500 | 21.7 | 35 | <=25 | 0.074-0.4 | 14-26 | 380 | 60 |
| Ø2200*7000 | 21.7 | 35 | <=25 | 0.074-0.4 | 15-28 | 380 | 62 |
| Ø2200*7500 | 21.7 | 35 | <=25 | 0.074-0.4 | 15-30 | 380 | 64.8 |
| Ø2400*3000 | 21 | 23 | <=25 | 0.074-0.4 | 7-50 | 245 | 54 |
| Ø2400*4500 | 21 | 30 | <=25 | 0.074-0.4 | 8.5-60 | 320 | 65 |
| Ø2700*4000 | 20.7 | 40 | <=25 | 0.074-0.4 | 12-80 | 380 | 94 |
| Ø2700*4500 | 20.7 | 48 | <=25 | 0.074-0.4 | 12-90 | 480 | 102 |
| Ø3200*4500 | 18 | 65 | <=25 | 0.074-0.4 | ----- | 800 | 137 |
| Ø3600*4500 | 17 | 90 | <=25 | 0.074-0.4 | ----- | 850 | 158 |
| Ø3600*6000 | 17 | 110 | <=25 | 0.074-0.4 | ----- | 1250 | 175 |
Gongyi City Machinery Factory (original Kangdian machinery factory, Gong County Machinery Factory) has large and medium-sized equipment 365 sets, 384 employees, consists of six department: Tachnical department, production department, sales department, domestic trade department, international trade department, service department. There are 240 high-intermediate grade technical personnel. It covers an area of 38, 600 square meters, building area is 18, 000 square meters, fixed assets is 28 million yuan. Gongyi City Machinery Factory is locaded in Kangdian town. One kilometer to south of Kang million eatate Scenic and Kangzhuang road. It is in the east of the provincial capital of Zhengzhou city, there is Hulaoguan Three Kingdoms Battlefield Site; West of Luoyang which is ancient capital of nine dynasties, there is longmen Grottoes which is one of China four famous cave; South of the songshan mountain, there are shaolin Temple and songyang Scademy; North of the Yellow River, there is Sihe yanliu scenic district; Lianhuo Expressway, the Longhai Railway zhengzhou-Xi′ An high-speed rail pass through from east to west, Yellow River bridge line pass through south to nouth. Location is good and transportation is convenient.
Since the factory is established in 1958, it first past the ISO9001 2000 international certification, and obtained import and export license eligibility. Now the leading product are beneficiation series, sandstone series, drying series, milling series eqipment. The products sell well in more than 20 provinces, municipalities and autonomous regions, famous in China, and exporten to many countries southeast Asia, Africa. Quality is enterprise′ S life, we will achieved recognition and satisfaction of the customer through excellent products and quality service. AN oeder is positive, one hopes is a responsibility. No matter it is in the before-sales, during sales or after -sales, we always offer the most attentive service to make you comfortable, let you succeed, also make you satisfied. Cooperating with Gongyi City Machinery Factory will make you no regrets!
Make friends all over the world, invite world content. Gongyi City Machinery Factory sincerely welcome friends from all walks of life to visit and guide, putting forward valuable advice, dicussing cooperation intention, joining hands to creating a better tomorrow.
