| Prod Model: |
PYT-20T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
as You Request |
| Gross Weight: |
220kgs |
| Pressing Force: |
20t |
| Packing Size: |
60cmx60cm*120cm |
| Power Source: |
Pneumatic |
| Working Style: |
Airflow |
| Material: |
Steel |
| Type: |
Shank Making Machine |
| Disc(',Wheel) Type: |
Shank Making Machine |
| Disc Diameter: |
22*108mm |
| Object: |
Drill Rod |
Product Description
Feature:

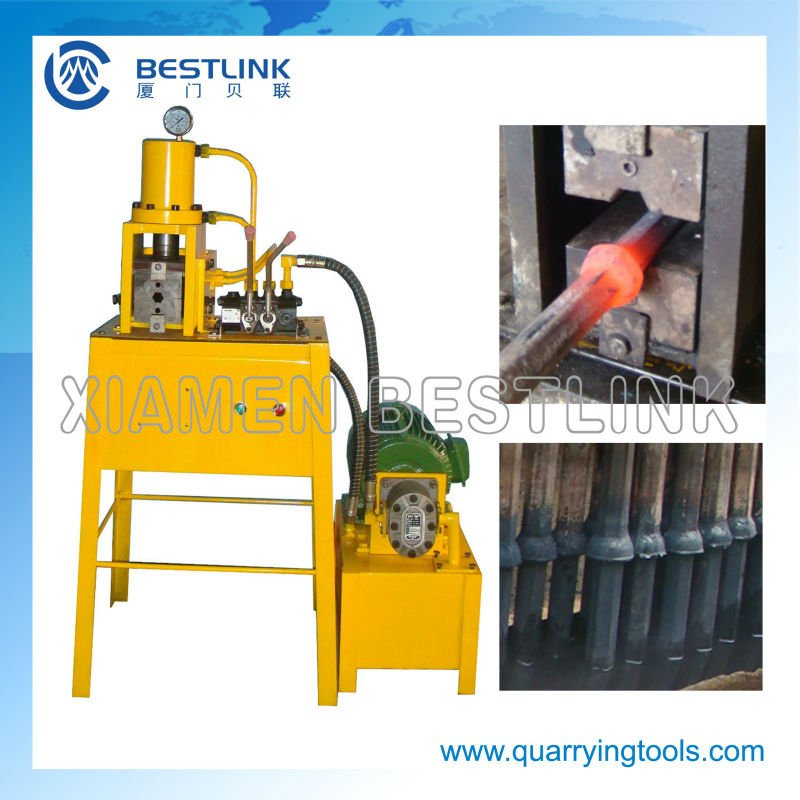

The Collar forging machine can help you to recycle use the drill rod,it can rebuild the shank H22*108.this machine is your economical choice.
Model |
PYT-20T |
Size |
60cm*60cm*120cm |
Weight |
107+100 kg (oli station + host engine) |
Power (kw) |
5.5kw |
Cylinder inner diameter |
100mm |
Max pressure |
200Mpa |
Working Pressure |
160Mpa |
Hydraulic oil |
68# anti-wear hydraulic oil |
Pressing force |
20T |
Upsetting force |
20T |
Efficacy |
90 bars/hour |
Repair and Maintenance
Close attention shall be given to "important notice" to avoid incorrect operation.
Certified 68# anti-wear hydraulic oil shall be purchased. Frost hydraulic oil shall be used in low-temperature areas. Hydraulic oil shall be replaced every 2000 working hours.
Clean up dregs from the mould after each operation. Make sure the back of active block is absolutely clean.
Mould service life allows 25 million bars or so. Please contact us upon failed clamping or difficulty in drill pipe compression. We will make confirmation before mould replacement.
The oil cylinder contains wearing seal rings. Upon any rapid decompression, please replace cylinder seal rings.
Do not open the hydraulic pressure gauge until necessary pressure system check upon equipment malfunction. In regular use, keep the hydraulic pressure gauge closed.
Troubleshooting
Hydraulic cylinder control |
No electricity |
Power on |
Motor reversal |
Exchange inlet wires for veering |
Inadequate hydraulic pressure |
Infuse hydraulic oil spare tank oil screen |
Adjusting valve jam |
Remove adjusting valve, clean with gasoline |
Nonstandard drill pipe pressure |
Inadequate pressure |
Turn up pressure |
Inadequate temperature |
Increase temperature |
Dregs lest in mould |
Clean the mould |
Failed drill pipe compression |
Inadequate pressure |
Adjust pressure |
Decompression from aging seal rings |
Open the pressure gauge to check, replace seal rings |
Severely worn mould |
Replace the mould |
