| Prod Model: |
TYC-011 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mortor Power: |
2.2kw or 3.0kw |
| Mesh Size: |
1/2 or 3/4 or 5/8 or 1 or 1.5 Or2.0or2.5 |
| Forging Forming Method: |
Free Forging |
Product Description

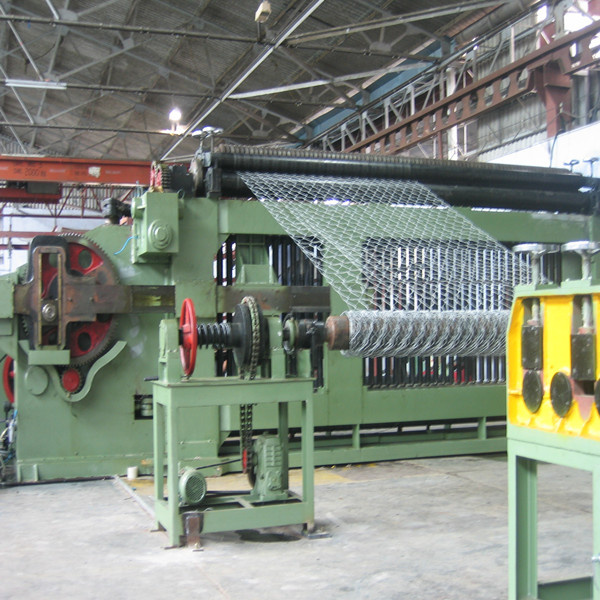

Hexagonal wire netting weaving machines adopt straight-reversetwisted principle, do not need to make the iron wire into spring type, so work fficiency is increased so that can work continuously. The models such as: 1/2", 5/8", 3/4", 1", 11/4", 11/2", 2", 3", 80X100mm or at the customer's requirement.
It also has characteristics as follows:
1, Max. Speed can be 65 mesh per minute, speed can be adjusted with different raw materials.
2, Smooth operation, low noise. It will give an alarm at broken wire, broken mesh or at preset length.
3, Big width. It can weave double 1.25 m or single 2.5 m width.
4, Even and flat openings, wire can be added at any spot when weaving.
5, It has clutch brake device, can move by spot, flexible operation and has no high demand for operating personnel.
6, Reliable lubrication and convenient use.
7, Durable and strong, convenient maintenance.
We also provide fittings for weaving machines and thread spool machine. We may also design machines according to c NW Series Wire Netting Machine is designed to produce hexagonal screens with galvanized low carbon steel wires, suitable for stuctural, heat insulation, protective, and forcing applications. The machines of this series are of horizontal design, ensuring smooth running and high productivity. Ustomers' particular requirements. Timely delivery & guaranteed quality
Type Theoretic produce speed Outer size(mm) Gross weight(T)
Mesh/minute meter/hour
XFHX-3/4" 38 62 4500X2200X1450 4.6
XFHX-5/8" 38 62 4500X2200X1450 4.6
XFHX-1/2" 38 62 4500X2200X1450 4.6
XFHX-1" 38 62 4500X2200X1450 4.6
XFHX-1 1/4"" 38 66 4500X2200X1450 4.6
XFHX-1 1/2" 38 99 4500X2200X1450 4.6
XFHX-2" 38 131 4500X2200X1450 4.6
XFHX-3" 38 169 4500X2200X1450 4.6
Type Mesh opening Max. Width (mm) Woven Max. Wire dia. (mm)
Single width double width
XFHX-3/4" 19 2440 1200 1.2
XFHX-5/8" 16 2440 1200 1.2
XFHX-1/2" 13 2440 1200 1.2
XFHX-1" 27 2440 1200 1.2
XFHX-1 1/4"" 32 2440 1200 1.2
XFHX-1 1/2" 44 2440 1200 1.4
XFHX-2" 56 2440 1200 1.4
Model |
Width(mm) |
Mesh Size(inch) |
Wire diameter(mm) |
No.of twists |
Weight(T) |
Motor Power(KW) |
NW15 |
1200-2000 |
1/2 |
≤0.6 |
3 or 5 |
2.5 |
2.2 |
NW20 |
1200-2000 |
3/4 |
≤0.8 |
3 or 5 |
2.5 |
2.2 |
NW18 |
1200-2000 |
5/8 |
≤0.7 |
3 or 5 |
2.5 |
2.2 |
NW25 |
1200-2000 |
1 |
≤0.9 |
3 or 5 |
2.5 |
3.0 |
NW40 |
1200-2000 |
1.5 |
≤1.0 |
3 or 5 |
2.5 |
3.0 |
NW50 |
1200-2000 |
2.0 |
≤1.6 |
3 or 5 |
2.5 |
3.0 |
NW60 |
1200-2000 |
2.5 |
≤1.8 |
3 or 5 |
2.5 |
3.0 |
Shijiazhuang Tianyue Honest Co., Ltd established in 2008. Our company has thirty sets of all kinds of iron wire drawing machines, fifty sets of welded wire mesh machine and two production lines of wire galvanizing.
We are main manufacturer and exporter of following products:
Galvanized wire, welded wire mesh, square wire mesh, hexagonal wire mesh, perforated sheet, steel grating, fence netting, razor barbed wire mesh, fiberglass screen mesh and various kinds of wire mesh machines ect.
Our export annual sales reach to $1.5 million, mainly export to Asia, Europe, Africa and Amercia. Also, our company has implement the ISO9001 quality control system and ISO14001 circumstance control system.
We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. All staff of Tianyue will welcome the friends abroad to cooperate with us. We will serve you at any time!
